Double V-Lock Solid-Block Housed Units
  • Solid Block/Spherical Roller Bearing Housed Units-Double V-Lock Take-Up Block
  • QVVTU22V315S

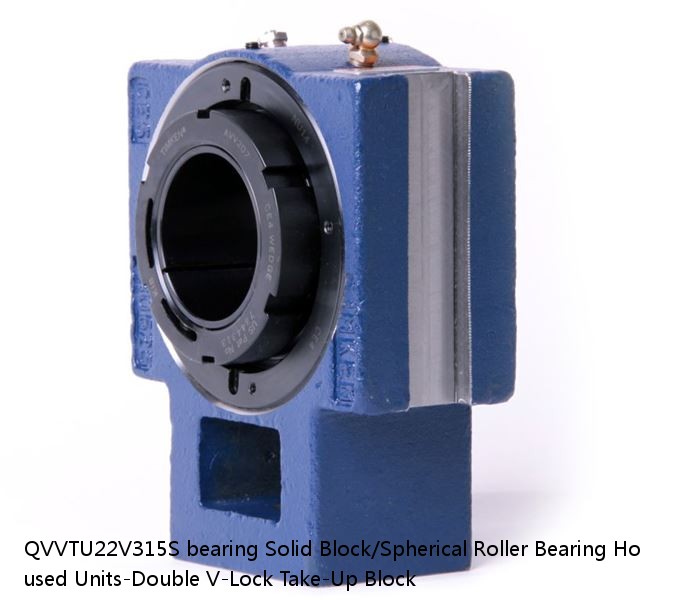

QVVTU22V315S Bearing | Solid Block/Spherical Roller Bearing Housed Units-Double V-Lock Take-Up Block

QVVTU22V315S interchange timken QVVTU22V315S
QVVTU22V315S cross reference timken QVVTU22V315S
QVVTU22V315S Equivalent bearing interchange guide:
Price: enquiry
Model Number: QVVTU22V315S
d: 4.06
D: 2.73
B: 58.0 lb26.3 Kg
r(min): 0883450378369 0883450378376 0883450378383 0883450378390 0883450378406 0883450378413 0883450378420 08
r1(min): 0.0030 in0.076 mm
Width: 3-15/16 in
Size: Imperial
Weight: 0.135 mm0.0053 in
Bearing Number: 0.170 mm0.0067 in
Housing Construction: 1700 rpm
UPC Code: 900 rpm
Shaft Size Type: 600 rpm
Engineering GroupMounted Bearing
Bearing Number22222
Shaft Size  3-15/16 in
Shaft Size TypeImperial
Full Timken Part NumberQVVTU22V315SB QVVTU22V315SC QVVTU22V315SEB QVVTU22V315SEC QVVTU22V315SEM QVVTU22V315SEN QVVTU22V315SEO QVVTU22V315SET QVVTU22V315SM QVVTU22V315SN QVVTU22V315SO QVVTU22V315ST
Locking StyleDouble V-Lock
Weight58.0 lb26.3 Kg
Housing ConstructionTake-Up
UPC Code0883450378369 0883450378376 0883450378383 0883450378390 0883450378406 0883450378413 0883450378420 0883450378437 0883450378444 0883450378451 0883450378468 0883450378475
Dimension A4.13 in104.9 mm
Dimension C1.13 in28.7 mm
Dimension D9.44 in239.8 mm
Dimension E8.63 in219.2 mm
Dimension F2.13 in54.1 mm
Dimension G2.06 in52.3 mm
Dimension J5.63 in143.0 mm
Dimension L11.69 in296.9 mm
Dimension N4.38 in111.3 mm
Dimension P7.00 in177.8 mm
Dimension RVV0.74 in18.8 mm
Dimension S2.060 in52.30 mm
Dimension T4.99 in126.7 mm
Dimension TVV5.13 in130.3 mm
C - Dynamic Load (Basic)125000 lb555 kN
C0 - Static Load147000 lb653 kN
e - Geometry Factor0.25
Y1 - Geometry Factor2.73
Y2 - Geometry Factor4.06
Oil Lubrication - M/N Seal900 rpm
Oil Lubrication - T Seal1700 rpm
Oil Lubrication - B/C/O Seal600 rpm
Grease Lubrication - M/N Seal900 rpm
Grease Lubrication - T Seal1200 rpm
Grease Lubrication - B/C/O Seal600 rpm
Float0.08 in2.11 mm
Shaft Tolerance0.0030 in0.076 mm
Eng Internal Radial Clearance - Min0.0053
Eng Internal Radial Clearance - Max0.0067
Pre Install Clearance Min0.135 mm0.0053 in
Pre Install Clearance Max0.170 mm0.0067 in
