Double V-Lock Solid-Block Housed Units
- Solid Block/Spherical Roller Bearing Housed Units-Double V-Lock Take-Up Block
- QVVTU22V400S

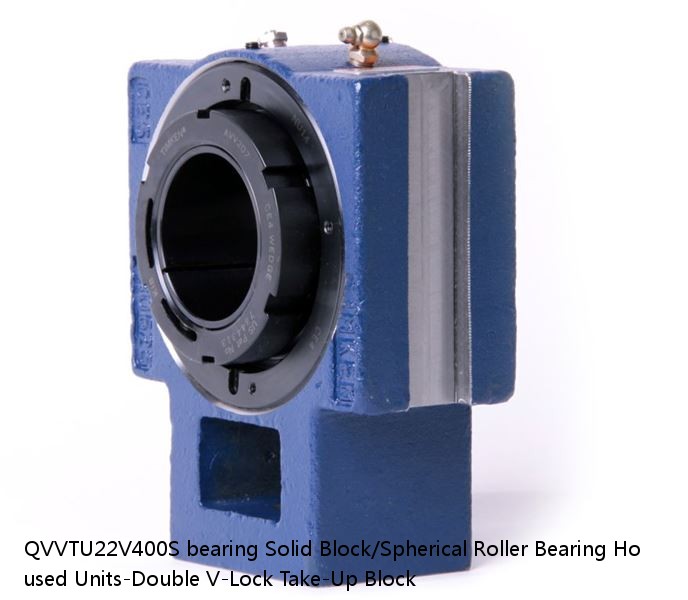

QVVTU22V400S Bearing | Solid Block/Spherical Roller Bearing Housed Units-Double V-Lock Take-Up Block
QVVTU22V400S PDF download| QVVTU22V400S interchange timken QVVTU22V400S | |
| QVVTU22V400S cross reference timken QVVTU22V400S | |
| QVVTU22V400S Equivalent bearing interchange guide： | |
| Price： | enquiry |
| Model Number： | QVVTU22V400S |
| d: | 4.06 |
| D: | 2.73 |
| B: | 58.0 lb26.3 Kg |
| r(min): | 0883450378482 0883450378499 0883450378505 0883450378512 0883450378529 0883450378536 0883450378543 08 |
| r1(min): | 0.0030 in0.076 mm |
| Width: | 4 in |
| Size: | Imperial |
| Weight： | 0.135 mm0.0053 in |
| Bearing Number： | 0.170 mm0.0067 in |
| Housing Construction： | 1700 rpm |
| UPC Code： | 900 rpm |
| Shaft Size Type： | 600 rpm |
| Engineering Group | Mounted Bearing |
| Bearing Number | 22222 |
| Shaft Size | 4 in |
| Shaft Size Type | Imperial |
| Full Timken Part Number | QVVTU22V400SB QVVTU22V400SC QVVTU22V400SEB QVVTU22V400SEC QVVTU22V400SEM QVVTU22V400SEN QVVTU22V400SEO QVVTU22V400SET QVVTU22V400SM QVVTU22V400SN QVVTU22V400SO QVVTU22V400ST |
| Locking Style | Double V-Lock |
| Weight | 58.0 lb26.3 Kg |
| Housing Construction | Take-Up |
| UPC Code | 0883450378482 0883450378499 0883450378505 0883450378512 0883450378529 0883450378536 0883450378543 0883450378550 0883450378567 0883450378574 0883450378581 0883450378598 |
| Dimension A | 4.13 in104.9 mm |
| Dimension C | 1.13 in28.7 mm |
| Dimension D | 9.44 in239.8 mm |
| Dimension E | 8.63 in219.2 mm |
| Dimension F | 2.13 in54.1 mm |
| Dimension G | 2.06 in52.3 mm |
| Dimension J | 5.63 in143.0 mm |
| Dimension L | 11.69 in296.9 mm |
| Dimension N | 4.38 in111.3 mm |
| Dimension P | 7.00 in177.8 mm |
| Dimension RVV | 0.74 in18.8 mm |
| Dimension S | 2.060 in52.30 mm |
| Dimension T | 4.99 in126.7 mm |
| Dimension TVV | 5.13 in130.3 mm |
| C - Dynamic Load (Basic) | 125000 lb555 kN |
| C0 - Static Load | 147000 lb653 kN |
| e - Geometry Factor | 0.25 |
| Y1 - Geometry Factor | 2.73 |
| Y2 - Geometry Factor | 4.06 |
| Oil Lubrication - M/N Seal | 900 rpm |
| Oil Lubrication - T Seal | 1700 rpm |
| Oil Lubrication - B/C/O Seal | 600 rpm |
| Grease Lubrication - M/N Seal | 900 rpm |
| Grease Lubrication - T Seal | 1200 rpm |
| Grease Lubrication - B/C/O Seal | 600 rpm |
| Float | 0.08 in2.11 mm |
| Shaft Tolerance | 0.0030 in0.076 mm |
| Eng Internal Radial Clearance - Min | 0.0053 |
| Eng Internal Radial Clearance - Max | 0.0067 |
| Pre Install Clearance Min | 0.135 mm0.0053 in |
| Pre Install Clearance Max | 0.170 mm0.0067 in |
| No. | Weight | Bearing Number | Housing Construction | UPC Code | Shaft Size Type | Full Timken Part Number |
|---|---|---|---|---|---|---|
| NUP10/500 | 500 | 6.0 | 6.0 | NUP10/500 | 130.000 | 910 |
| NN49/670 | 20 | 670 | 5 | 6.0 | NN49/670 | 696 |
| 7318DF FY | 90 | 3.0 | 7318DF FY | 4200 | 3300 | 190 |
| SNP-3152X9 | HMVC 52E | N 052 | SNP-3152X9 | 309.702 | 228.600 | 240.000 |
| 30240/DF | 128.0000 | 1700 | 1000 | 212.000 | 2240.000 | 1448.000 |
| FCJS-62 | 0.0 | 0.0 | 15200 | - | 24 | 38500 |
| NUP314E | 70 | 2.1 | 2.1 | 3.150 | 4300 | 3600 |
| YAR 210-2LPW/SS-62.51 | 90 | 22 | - | 0.000 | 23.200 | 29.600 |
| 7006CDB FY | 30 | 1.0 | 7006CDB FY | 21000 | 16000 | 55 |
| 811/1000 M | 260 | 130 | 32500.000 | 4750.000 | 140.000 | 0.000 |
