Eccentric Solid-Block Housed Units
  • Solid Block/Spherical Roller Bearing Housed Units-Eccentric Take-Up Block
  • QMTU15J070S

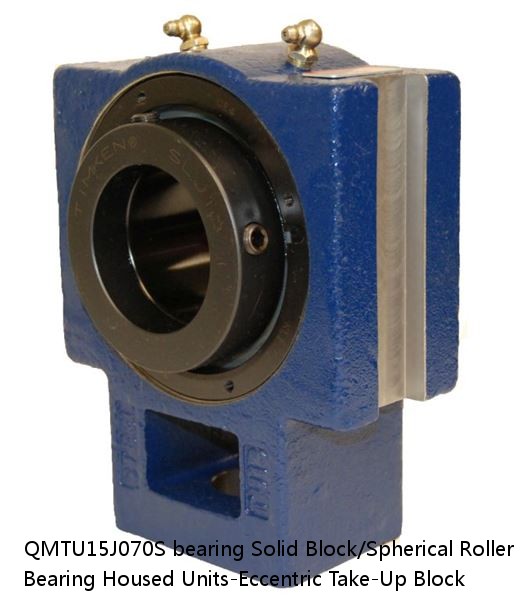

QMTU15J070S Bearing | Solid Block/Spherical Roller Bearing Housed Units-Eccentric Take-Up Block

QMTU15J070S interchange timken QMTU15J070S
QMTU15J070S cross reference timken QMTU15J070S
QMTU15J070S Equivalent bearing interchange guide:
Price: enquiry
Model Number: QMTU15J070S
d: 4.67
D: 3.14
B: 35 lb15.90 Kg
r(min): 0883450036825 0883450102780 0883450102803 0883450102810 0883450102827 0883450102834 0883450102841 08
r1(min): 0.0020 in0.051 mm
Width: 70 mm
Size: Metric
Weight: 0.050 mm0.0020 in
Bearing Number: 0.080 mm0.0031 in
Housing Construction: 2900 rpm
UPC Code: 1600 rpm
Shaft Size Type: 1300 rpm
Engineering GroupMounted Bearing
Bearing Number22215
Shaft Size  70 mm
Shaft Size TypeMetric
Full Timken Part NumberQMTU15J070SB QMTU15J070SC QMTU15J070SEB QMTU15J070SEC QMTU15J070SEM QMTU15J070SEN QMTU15J070SEO QMTU15J070SET QMTU15J070SM QMTU15J070SN QMTU15J070SO QMTU15J070ST
Locking StyleEccentric
Weight35 lb15.90 Kg
Housing ConstructionTake-Up
UPC Code0883450036825 0883450102780 0883450102803 0883450102810 0883450102827 0883450102834 0883450102841 0883450102858 0883450169288 0883450169660 0883450260688 0883450261005
Dimension A3.00 in76.2 mm
Dimension C1.00 in25.4 mm
Dimension D6.75 in171.5 mm
Dimension E5.94 in150.9 mm
Dimension F1.56 in39.6 mm
Dimension G1.56 in39.6 mm
Dimension J4.25 in108.0 mm
Dimension L8.65 in219.7 mm
Dimension K1.25 in31.8 mm
Dimension M2.37 in60.2 mm
Dimension N3.82 in97.0 mm
Dimension P4.75 in120.7 mm
Dimension S1.810 in46.00 mm
C0 - Static Load54100 lb240 kN
C - Dynamic Load (Basic)49900 lb220 kN
e - Geometry Factor0.22
Y1 - Geometry Factor3.14
Y2 - Geometry Factor4.67
Oil Lubrication - M/N Seal1600 rpm
Oil Lubrication - T Seal2900 rpm
Oil Lubrication - B/C/O Seal1300 rpm
Grease Lubrication - M/N Seal1600 rpm
Grease Lubrication - T Seal2400 rpm
Grease Lubrication - B/C/O Seal1300 rpm
Float0.08 in2.03 mm
Shaft Tolerance0.0020 in0.051 mm
Eng Internal Radial Clearance - Min0.0020
Eng Internal Radial Clearance - Max0.0031
Pre Install Clearance Min0.050 mm0.0020 in
Pre Install Clearance Max0.080 mm0.0031 in
