Eccentric Solid-Block Housed Units
  • Solid Block/Spherical Roller Bearing Housed Units-Eccentric Take-Up Block
  • QMTU15J215S

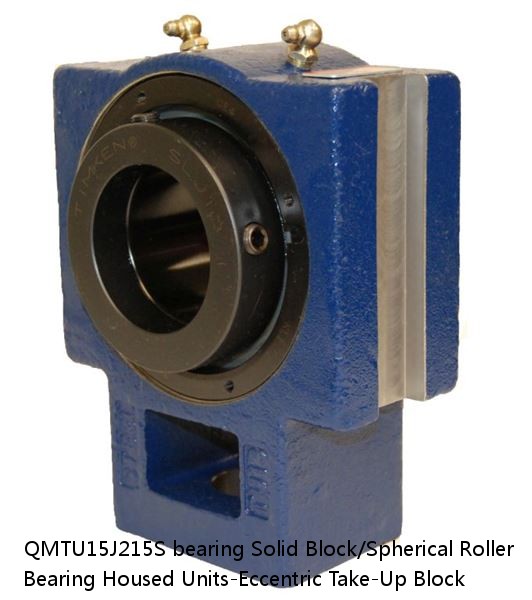

QMTU15J215S Bearing | Solid Block/Spherical Roller Bearing Housed Units-Eccentric Take-Up Block

QMTU15J215S interchange timken | Neutral QMTU15J215S
QMTU15J215S cross reference timken | Neutral QMTU15J215S
QMTU15J215S Equivalent bearing interchange guide:
Price: enquiry
Model Number: QMTU15J215S
d: 4.67
D: 3.14
B: 35 lb15.90 Kg
r(min): 0883450103176 0883450103183 0883450103206 0883450103213 0883450103220 0883450103237 0883450103244 08
r1(min): 0.0020 in0.051 mm
Width: 2-15/16 in
Size: Imperial
Weight: 0.050 mm0.0020 in
Bearing Number: 0.080 mm0.0031 in
Housing Construction: 2900 rpm
UPC Code: 1600 rpm
Shaft Size Type: 1300 rpm
Engineering GroupMounted Bearing
Bearing Number22215
Shaft Size  2-15/16 in
Shaft Size TypeImperial
Full Timken Part NumberQMTU15J215SB QMTU15J215SC QMTU15J215SEB QMTU15J215SEC QMTU15J215SEM QMTU15J215SEN QMTU15J215SEO QMTU15J215SET QMTU15J215SM QMTU15J215SMNG QMTU15J215SN QMTU15J215SO QMTU15J215ST
Locking StyleEccentric
Weight35 lb15.90 Kg
Housing ConstructionTake-Up
UPC Code0883450103176 0883450103183 0883450103206 0883450103213 0883450103220 0883450103237 0883450103244 0883450103251 0883450169295 0883450169677 0883450260695 0883450261012 0883450493932
Dimension A3.00 in76.2 mm
Dimension C1.00 in25.4 mm
Dimension D6.75 in171.5 mm
Dimension E5.94 in150.9 mm
Dimension F1.56 in39.6 mm
Dimension G1.56 in39.6 mm
Dimension J4.25 in108.0 mm
Dimension L8.65 in219.7 mm
Dimension K1.25 in31.8 mm
Dimension M2.37 in60.2 mm
Dimension N3.82 in97.0 mm
Dimension P4.75 in120.7 mm
Dimension S1.810 in46.00 mm
C0 - Static Load54100 lb240 kN
C - Dynamic Load (Basic)49900 lb220 kN
e - Geometry Factor0.22
Y1 - Geometry Factor3.14
Y2 - Geometry Factor4.67
Oil Lubrication - M/N Seal1600 rpm
Oil Lubrication - T Seal2900 rpm
Oil Lubrication - B/C/O Seal1300 rpm
Grease Lubrication - M/N Seal1600 rpm
Grease Lubrication - T Seal2400 rpm
Grease Lubrication - B/C/O Seal1300 rpm
Float0.08 in2.03 mm
Shaft Tolerance0.0020 in0.051 mm
Eng Internal Radial Clearance - Min0.0020
Eng Internal Radial Clearance - Max0.0031
Pre Install Clearance Min0.050 mm0.0020 in
Pre Install Clearance Max0.080 mm0.0031 in
