Single Concentric Solid-Block Housed Units
- Solid Block/Spherical Roller Bearing Housed Units-Single Concentric Take-Up Block
- QATU11A203S

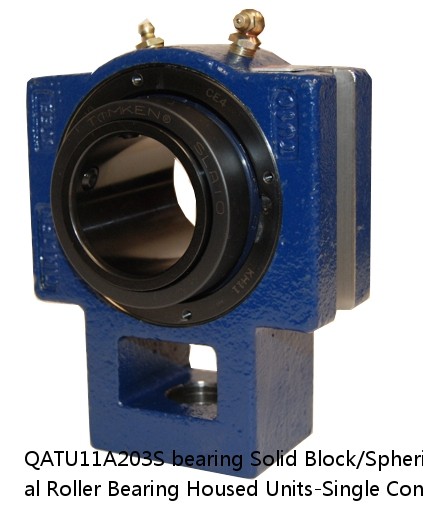

QATU11A203S Bearing | Solid Block/Spherical Roller Bearing Housed Units-Single Concentric Take-Up Block
QATU11A203S PDF download| QATU11A203S interchange timken QATU11A203S | |
| QATU11A203S cross reference timken QATU11A203S | |
| QATU11A203S Equivalent bearing interchange guide： | |
| Price： | enquiry |
| Model Number： | QATU11A203S |
| d: | 4.40 |
| D: | 2.95 |
| B: | 21.0 lb9.5 Kg |
| r(min): | 0883450049900 0883450049917 0883450049931 0883450049948 0883450049955 0883450049962 0883450049979 08 |
| r1(min): | 0.0015 in0.038 mm |
| Width: | 2-3/16 in |
| Size: | Imperial |
| Weight： | 0.040 mm0.0016 in |
| Bearing Number： | 0.065 mm0.0026 in |
| Housing Construction： | 3800 rpm |
| UPC Code： | 2200 rpm |
| Shaft Size Type： | 1600 rpm |
| Engineering Group | Mounted Bearing |
| Bearing Number | 22211 |
| Shaft Size | 2-3/16 in |
| Shaft Size Type | Imperial |
| Full Timken Part Number | QATU11A203SB QATU11A203SC QATU11A203SEB QATU11A203SEC QATU11A203SEM QATU11A203SEN QATU11A203SEO QATU11A203SET QATU11A203SM QATU11A203SN QATU11A203SO QATU11A203ST |
| Locking Style | Single Concentric |
| Weight | 21.0 lb9.5 Kg |
| Housing Construction | Take-Up |
| UPC Code | 0883450049900 0883450049917 0883450049931 0883450049948 0883450049955 0883450049962 0883450049979 0883450049986 0883450195188 0883450195348 0883450272353 0883450272520 |
| Dimension A | 2.38 in60.5 mm |
| Dimension C | 0.75 in19.1 mm |
| Dimension D | 5.25 in133.4 mm |
| Dimension E | 4.50 in114.3 mm |
| Dimension F | 1.13 in28.7 mm |
| Dimension G | 1.19 in30.2 mm |
| Dimension J | 3.50 in88.9 mm |
| Dimension L | 6.61 in167.9 mm |
| Dimension KA | 1.13 in28.7 mm |
| Dimension M | 2 in50.8 mm |
| Dimension N | 3.22 in81.8 mm |
| Dimension P | 3.75 in95.3 mm |
| Dimension S | 0.810 in20.60 mm |
| C0 - Static Load | 31900 lb142 kN |
| C - Dynamic Load (Basic) | 31400 lb140 kN |
| e - Geometry Factor | 0.23 |
| Y1 - Geometry Factor | 2.95 |
| Y2 - Geometry Factor | 4.40 |
| Oil Lubrication - M/N Seal | 2200 rpm |
| Oil Lubrication - T Seal | 3800 rpm |
| Oil Lubrication - B/C/O Seal | 1600 rpm |
| Grease Lubrication - M/N Seal | 2200 rpm |
| Grease Lubrication - T Seal | 3200 rpm |
| Grease Lubrication - B/C/O Seal | 1600 rpm |
| Float | 0.050 in1.270 mm |
| Shaft Tolerance | 0.0015 in0.038 mm |
| Eng Internal Radial Clearance - Min | 0.0016 |
| Eng Internal Radial Clearance - Max | 0.0026 |
| Pre Install Clearance Min | 0.040 mm0.0016 in |
| Pre Install Clearance Max | 0.065 mm0.0026 in |
