Single Concentric Solid-Block Housed Units
- Solid Block/Spherical Roller Bearing Housed Units-Single Concentric Take-Up Block
- QATU11A204S

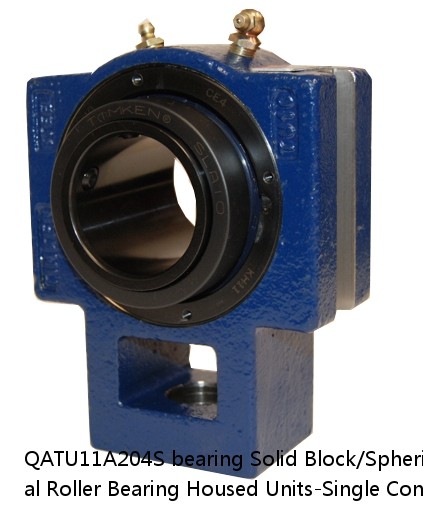

QATU11A204S Bearing | Solid Block/Spherical Roller Bearing Housed Units-Single Concentric Take-Up Block
QATU11A204S PDF download| QATU11A204S interchange timken QATU11A204S | |
| QATU11A204S cross reference timken QATU11A204S | |
| QATU11A204S Equivalent bearing interchange guide： | |
| Price： | enquiry |
| Model Number： | QATU11A204S |
| d: | 4.40 |
| D: | 2.95 |
| B: | 21.0 lb9.5 Kg |
| r(min): | 0883450050005 0883450050012 0883450050036 0883450050043 0883450050050 0883450050067 0883450050074 08 |
| r1(min): | 0.0015 in0.038 mm |
| Width: | 2-1/4 in |
| Size: | Imperial |
| Weight： | 0.040 mm0.0016 in |
| Bearing Number： | 0.065 mm0.0026 in |
| Housing Construction： | 3800 rpm |
| UPC Code： | 2200 rpm |
| Shaft Size Type： | 1600 rpm |
| Engineering Group | Mounted Bearing |
| Bearing Number | 22211 |
| Shaft Size | 2-1/4 in |
| Shaft Size Type | Imperial |
| Full Timken Part Number | QATU11A204SB QATU11A204SC QATU11A204SEB QATU11A204SEC QATU11A204SEM QATU11A204SEN QATU11A204SEO QATU11A204SET QATU11A204SM QATU11A204SN QATU11A204SO QATU11A204ST |
| Locking Style | Single Concentric |
| Weight | 21.0 lb9.5 Kg |
| Housing Construction | Take-Up |
| UPC Code | 0883450050005 0883450050012 0883450050036 0883450050043 0883450050050 0883450050067 0883450050074 0883450050081 0883450195195 0883450195355 0883450272360 0883450272537 |
| Dimension A | 2.38 in60.5 mm |
| Dimension C | 0.75 in19.1 mm |
| Dimension D | 5.25 in133.4 mm |
| Dimension E | 4.50 in114.3 mm |
| Dimension F | 1.13 in28.7 mm |
| Dimension G | 1.19 in30.2 mm |
| Dimension J | 3.50 in88.9 mm |
| Dimension L | 6.61 in167.9 mm |
| Dimension KA | 1.13 in28.7 mm |
| Dimension M | 2 in50.8 mm |
| Dimension N | 3.22 in81.8 mm |
| Dimension P | 3.75 in95.3 mm |
| Dimension S | 0.810 in20.60 mm |
| C0 - Static Load | 31900 lb142 kN |
| C - Dynamic Load (Basic) | 31400 lb140 kN |
| e - Geometry Factor | 0.23 |
| Y1 - Geometry Factor | 2.95 |
| Y2 - Geometry Factor | 4.40 |
| Oil Lubrication - M/N Seal | 2200 rpm |
| Oil Lubrication - T Seal | 3800 rpm |
| Oil Lubrication - B/C/O Seal | 1600 rpm |
| Grease Lubrication - M/N Seal | 2200 rpm |
| Grease Lubrication - T Seal | 3200 rpm |
| Grease Lubrication - B/C/O Seal | 1600 rpm |
| Float | 0.050 in1.270 mm |
| Shaft Tolerance | 0.0015 in0.038 mm |
| Eng Internal Radial Clearance - Min | 0.0016 |
| Eng Internal Radial Clearance - Max | 0.0026 |
| Pre Install Clearance Min | 0.040 mm0.0016 in |
| Pre Install Clearance Max | 0.065 mm0.0026 in |
| No. | Weight | Bearing Number | Housing Construction | UPC Code | Shaft Size Type | Full Timken Part Number |
|---|---|---|---|---|---|---|
| 7317BW | Standard | 85 | 2.5 | 3.0 | 7317BW | 3200 |
| 7409DF FY | 45 | 1.0 | 2.0 | 6000 | 4200 | 7409DFFY |
| W3203SA-6Z-C5Z10 | 560 | 380 | W3203SA-6Z-C5Z10 | 250 | - | - |
| 23224CE4 | 23224CE4 | 12.10 | 215 | 2.0 | 2.9 | 1.9 |
| LM 122130 F U AJ | One side Seal (U) | Stainless | LM 122130 F U AJ | Stainless | 12 | - |
| SNL 511-609 + C 2211 K + H 311 E | SNL 511-609 | 70 | 127 | SNL 511-609 + C 2211 K + H 311 E | 95 | C 2211 K |
| 24176KYMBW33W45AC3 | 1.83 | 2.79 | 1.87 | 320 | 300 | 4.000 mm0.160 in |
| 2MMVC9309HX | 0.60 mm0.024 in | 0.60 mm0.024 in | 60000 rpm | 30000 rpm | 6.350 mm1/4 in | METRIC |
| WBK08S-01 | WBK08S-01 | - | - | - | - | - |
| GEC 440 FBAS | 8800.000 | 5850.000 | 3.000 | 440.000 | 600.0000 | 120 |
