Single Concentric Solid-Block Housed Units
- Solid Block/Spherical Roller Bearing Housed Units-Single Concentric Take-Up Block
- QATU18A307S

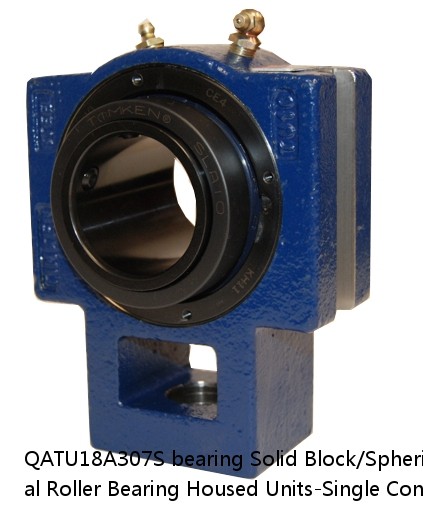

QATU18A307S Bearing | Solid Block/Spherical Roller Bearing Housed Units-Single Concentric Take-Up Block
QATU18A307S PDF download| QATU18A307S interchange timken QATU18A307S | |
| QATU18A307S cross reference timken QATU18A307S | |
| QATU18A307S Equivalent bearing interchange guide： | |
| Price： | enquiry |
| Model Number： | QATU18A307S |
| d: | 4.31 |
| D: | 2.90 |
| B: | 44 lb20.00 Kg |
| r(min): | 0883450050807 0883450050814 0883450050838 0883450050845 0883450050852 0883450050869 0883450050876 08 |
| r1(min): | 0.0030 in0.076 mm |
| Width: | 3-7/16 in |
| Size: | Imperial |
| Weight： | 0.060 mm0.0024 in |
| Bearing Number： | 0.100 mm0.0039 in |
| Housing Construction： | 2400 rpm |
| UPC Code： | 1400 rpm |
| Shaft Size Type： | 1000 rpm |
| Engineering Group | Mounted Bearing |
| Bearing Number | 22218 |
| Shaft Size | 3-7/16 in |
| Shaft Size Type | Imperial |
| Full Timken Part Number | QATU18A307SB QATU18A307SC QATU18A307SEB QATU18A307SEC QATU18A307SEM QATU18A307SEN QATU18A307SEO QATU18A307SET QATU18A307SM QATU18A307SN QATU18A307SO QATU18A307ST |
| Locking Style | Single Concentric |
| Weight | 44 lb20.00 Kg |
| Housing Construction | Take-Up |
| UPC Code | 0883450050807 0883450050814 0883450050838 0883450050845 0883450050852 0883450050869 0883450050876 0883450050883 0883450195263 0883450195423 0883450272445 0883450272612 |
| Dimension A | 3.63 in92.2 mm |
| Dimension C | 1.00 in25.4 mm |
| Dimension D | 7.63 in193.8 mm |
| Dimension E | 6.81 in173.0 mm |
| Dimension F | 1.81 in46.0 mm |
| Dimension G | 1.88 in47.8 mm |
| Dimension J | 4.88 in124.0 mm |
| Dimension L | 10.12 in257.0 mm |
| Dimension KA | 1.44 in36.6 mm |
| Dimension M | 2.59 in65.8 mm |
| Dimension N | 4.22 in107.2 mm |
| Dimension P | 6.25 in158.8 mm |
| Dimension S | 1.810 in46.00 mm |
| C0 - Static Load | 87200 lb388 kN |
| C - Dynamic Load (Basic) | 79700 lb355 kN |
| e - Geometry Factor | 0.23 |
| Y1 - Geometry Factor | 2.90 |
| Y2 - Geometry Factor | 4.31 |
| Oil Lubrication - M/N Seal | 1400 rpm |
| Oil Lubrication - T Seal | 2400 rpm |
| Oil Lubrication - B/C/O Seal | 1000 rpm |
| Grease Lubrication - M/N Seal | 1400 rpm |
| Grease Lubrication - T Seal | 2000 rpm |
| Grease Lubrication - B/C/O Seal | 1000 rpm |
| Float | 0.08 in2.03 mm |
| Shaft Tolerance | 0.0030 in0.076 mm |
| Eng Internal Radial Clearance - Min | 0.0024 |
| Eng Internal Radial Clearance - Max | 0.0039 |
| Pre Install Clearance Min | 0.060 mm0.0024 in |
| Pre Install Clearance Max | 0.100 mm0.0039 in |
| No. | Weight | Bearing Number | Housing Construction | UPC Code | Shaft Size Type | Full Timken Part Number |
|---|---|---|---|---|---|---|
| FCRE-30 | 0.0 | 0.0 | 1450 | 17 | 12 | 9250 |
| 7316BDT | Standard | 80 | 2.0 | 2.1 | 7316BDT | 3400 |
| SD33401 | M24 | 23040BK;H3040 | M30 | 32 | 52 | 180 |
| 50BER20SV1V | 50 | 0.6 | 1.0 | 50BER20SV1V | 330.000 | 24.700 |
| E/TTU/TRB/90MM/ECO | 2.07 | 1.71 | 0.7 | 0.87 | 42 lb | 0883450508445 |
| FCJSE-26 | 0.0 | 0.0 | 1060 | 13 | 10 | 6550 |
| SYWK 30 YTH | 3800 | 11.2 | 16.3 | SYWK 506 Y | SYWK 30 YTH | YAR 206-2RF/HV |
| SNL 506-605 + 2305 K + HE 2305 | SNL 506-605 | 50 | 89 | SNL 506-605 + 2305 K + HE 2305 | 77 | 2305 K |
| K65x70x20 | K65x70x20 | 0.055 | 6000 | 4000 | 65 | 70 |
| CF 30-1R | 438.00 | 30 | - | 4 | 8.0 | 49.0 |
