Single V-Lock Solid-Block Housed Units
  • Solid Block/Spherical Roller Bearing Housed Units-Single V-Lock Take-Up Block
  • QVTU14V065S

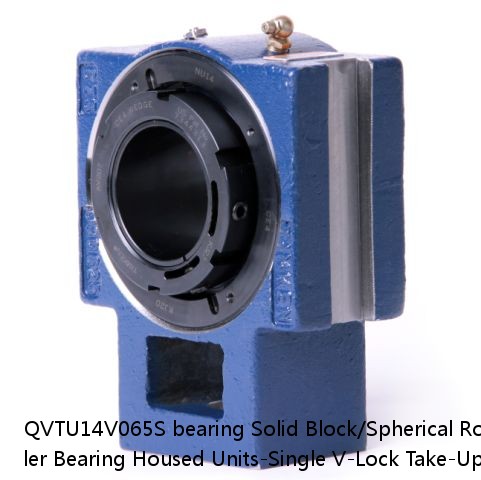

QVTU14V065S Bearing | Solid Block/Spherical Roller Bearing Housed Units-Single V-Lock Take-Up Block

QVTU14V065S interchange timken QVTU14V065S
QVTU14V065S cross reference timken QVTU14V065S
QVTU14V065S Equivalent bearing interchange guide:
Price: enquiry
Model Number: QVTU14V065S
d: 4.32
D: 2.90
B: 17.0 lb7.7 Kg
r(min): 0883450358743 0883450358750 0883450358767 0883450358774 0883450358781 0883450358798 0883450358804 08
r1(min): 0.0015 in0.038 mm
Width: 65 mm
Size: Metric
Weight: 0.075 mm0.0030 in
Bearing Number: 0.094 mm0.0037 in
Housing Construction: 3050 rpm
UPC Code: 1700 rpm
Shaft Size Type: 1400 rpm
Engineering GroupMounted Bearing
Bearing Number22214
Shaft Size  65 mm
Shaft Size TypeMetric
Full Timken Part NumberQVTU14V065SB QVTU14V065SC QVTU14V065SEB QVTU14V065SEC QVTU14V065SEM QVTU14V065SEN QVTU14V065SEO QVTU14V065SET QVTU14V065SM QVTU14V065SN QVTU14V065SO QVTU14V065ST
Locking StyleSingle V-Lock
Weight17.0 lb7.7 Kg
Housing ConstructionTake-Up
UPC Code0883450358743 0883450358750 0883450358767 0883450358774 0883450358781 0883450358798 0883450358804 0883450358811 0883450358828 0883450358835 0883450358842 0883450358859
Dimension A2.75 in69.9 mm
Dimension C0.88 in22.4 mm
Dimension D5.88 in149.4 mm
Dimension E5.13 in130.3 mm
Dimension F1.31 in33.3 mm
Dimension G1.31 in33.3 mm
Dimension J3.75 in95.3 mm
Dimension L7.63 in193.8 mm
Dimension N3.48 in88.4 mm
Dimension P4.75 in120.7 mm
Dimension RV0.13 in3.3 mm
Dimension S1.060 in26.90 mm
Dimension TV3.35 in85.1 mm
C0 - Static Load52000 lb231 kN
C - Dynamic Load (Basic)47800 lb213 kN
e - Geometry Factor0.23
Y1 - Geometry Factor2.90
Y2 - Geometry Factor4.32
Oil Lubrication - M/N Seal1700 rpm
Oil Lubrication - T Seal3050 rpm
Oil Lubrication - B/C/O Seal1400 rpm
Grease Lubrication - M/N Seal1700 rpm
Grease Lubrication - T Seal2600 rpm
Grease Lubrication - B/C/O Seal1400 rpm
Float0.08 in2.03 mm
Shaft Tolerance0.0015 in0.038 mm
Pre Install Clearance Min0.075 mm0.0030 in
Pre Install Clearance Max0.094 mm0.0037 in



No. Weight  Bearing Number  Housing Construction  UPC Code  Shaft Size Type  Full Timken Part Number
NUP230R1503.03.026002200NUP230R
7203CDT FY170.67203CDT FY300002300040
24030EMW33C32.273.462.32200017002.00 mm0.080 in
23276E3806.0383.00720540680
NUP411552.12.1NUP4112.4805 000
FCJE-720.00.015200342438500
24032CAME424032CAME412.702402.33.42.2
6306301.163060.361200010000
6000ZZ100.36000ZZ31000260.1
HJ 2213 ECHJ 2213 EC65.000 - - - -
