Single V-Lock Solid-Block Housed Units
  • Solid Block/Spherical Roller Bearing Housed Units-Single V-Lock Take-Up Block
  • QVTU14V060S

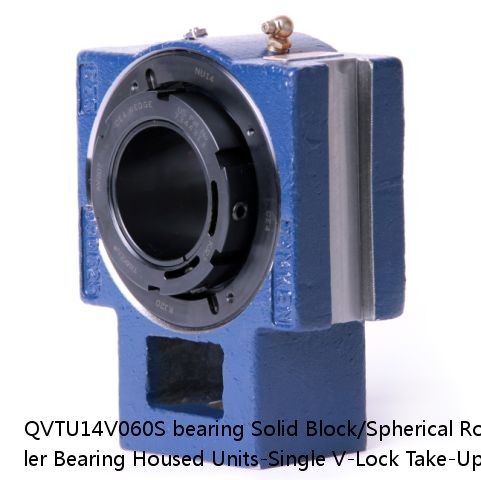

QVTU14V060S Bearing | Solid Block/Spherical Roller Bearing Housed Units-Single V-Lock Take-Up Block

QVTU14V060S interchange timken QVTU14V060S
QVTU14V060S cross reference timken QVTU14V060S
QVTU14V060S Equivalent bearing interchange guide:
Price: enquiry
Model Number: QVTU14V060S
d: 4.32
D: 2.90
B: 17.0 lb7.7 Kg
r(min): 0883450358620 0883450358637 0883450358644 0883450358651 0883450358668 0883450358675 0883450358682 08
r1(min): 0.0015 in0.038 mm
Width: 60 mm
Size: Metric
Weight: 0.075 mm0.0030 in
Bearing Number: 0.094 mm0.0037 in
Housing Construction: 3050 rpm
UPC Code: 1700 rpm
Shaft Size Type: 1400 rpm
Engineering GroupMounted Bearing
Bearing Number22214
Shaft Size  60 mm
Shaft Size TypeMetric
Full Timken Part NumberQVTU14V060SB QVTU14V060SC QVTU14V060SEB QVTU14V060SEC QVTU14V060SEM QVTU14V060SEN QVTU14V060SEO QVTU14V060SET QVTU14V060SM QVTU14V060SN QVTU14V060SO QVTU14V060ST
Locking StyleSingle V-Lock
Weight17.0 lb7.7 Kg
Housing ConstructionTake-Up
UPC Code0883450358620 0883450358637 0883450358644 0883450358651 0883450358668 0883450358675 0883450358682 0883450358699 0883450358705 0883450358712 0883450358729 0883450358736
Dimension A2.75 in69.9 mm
Dimension C0.88 in22.4 mm
Dimension D5.88 in149.4 mm
Dimension E5.13 in130.3 mm
Dimension F1.31 in33.3 mm
Dimension G1.31 in33.3 mm
Dimension J3.75 in95.3 mm
Dimension L7.63 in193.8 mm
Dimension N3.48 in88.4 mm
Dimension P4.75 in120.7 mm
Dimension RV0.13 in3.3 mm
Dimension S1.060 in26.90 mm
Dimension TV3.35 in85.1 mm
C0 - Static Load52000 lb231 kN
C - Dynamic Load (Basic)47800 lb213 kN
e - Geometry Factor0.23
Y1 - Geometry Factor2.90
Y2 - Geometry Factor4.32
Oil Lubrication - M/N Seal1700 rpm
Oil Lubrication - T Seal3050 rpm
Oil Lubrication - B/C/O Seal1400 rpm
Grease Lubrication - M/N Seal1700 rpm
Grease Lubrication - T Seal2600 rpm
Grease Lubrication - B/C/O Seal1400 rpm
Float0.08 in2.03 mm
Shaft Tolerance0.0015 in0.038 mm
Pre Install Clearance Min0.075 mm0.0030 in
Pre Install Clearance Max0.094 mm0.0037 in
