Single V-Lock Solid-Block Housed Units

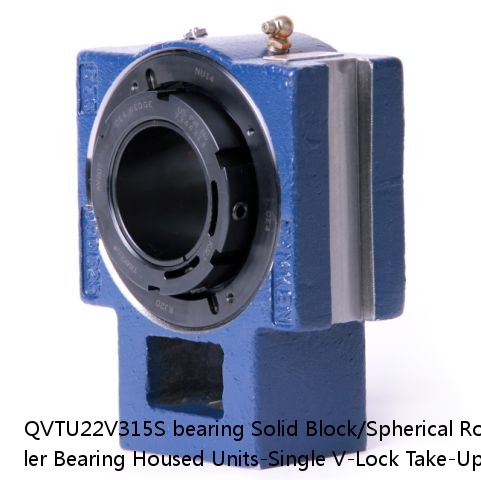

QVTU22V315S Bearing | Solid Block/Spherical Roller Bearing Housed Units-Single V-Lock Take-Up Block

QVTU22V315S interchange timken QVTU22V315S
QVTU22V315S cross reference timken QVTU22V315S
QVTU22V315S Equivalent bearing interchange guide：
Price：	enquiry
Model Number：	QVTU22V315S
d:	4.06
D:	2.73
B:	58.0 lb26.3 Kg
r(min):	0883450361026 0883450361033 0883450361040 0883450361057 0883450361064 0883450361071 0883450361088 08
r1(min):	0.0030 in0.076 mm
Width:	3-15/16 in
Size:	Imperial
Weight：	0.135 mm0.0053 in
Bearing Number：	0.170 mm0.0067 in
Housing Construction：	1700 rpm
UPC Code：	900 rpm
Shaft Size Type：	600 rpm

Engineering Group	Mounted Bearing
Bearing Number	22222
Shaft Size	3-15/16 in
Shaft Size Type	Imperial
Full Timken Part Number	QVTU22V315SB QVTU22V315SC QVTU22V315SEB QVTU22V315SEC QVTU22V315SEM QVTU22V315SEN QVTU22V315SEO QVTU22V315SET QVTU22V315SM QVTU22V315SN QVTU22V315SO QVTU22V315ST
Locking Style	Single V-Lock
Weight	58.0 lb26.3 Kg
Housing Construction	Take-Up
UPC Code	0883450361026 0883450361033 0883450361040 0883450361057 0883450361064 0883450361071 0883450361088 0883450361095 0883450361101 0883450361118 0883450361125 0883450361132
Dimension A	4.13 in104.9 mm
Dimension C	1.13 in28.7 mm
Dimension D	9.44 in239.8 mm
Dimension E	8.63 in219.2 mm
Dimension F	2.13 in54.1 mm
Dimension G	2.06 in52.3 mm
Dimension J	5.63 in143.0 mm
Dimension L	11.69 in296.9 mm
Dimension N	4.38 in111.3 mm
Dimension P	7.00 in177.8 mm
Dimension RV	0.06 in1.5 mm
Dimension S	2.060 in52.30 mm
Dimension TV	4.33 in110.0 mm
C0 - Static Load	147000 lb653 kN
C - Dynamic Load (Basic)	125000 lb555 kN
e - Geometry Factor	0.25
Y1 - Geometry Factor	2.73
Y2 - Geometry Factor	4.06
Oil Lubrication - M/N Seal	900 rpm
Oil Lubrication - T Seal	1700 rpm
Oil Lubrication - B/C/O Seal	600 rpm
Grease Lubrication - M/N Seal	900 rpm
Grease Lubrication - T Seal	1200 rpm
Grease Lubrication - B/C/O Seal	600 rpm
Float	0.08 in2.03 mm
Shaft Tolerance	0.0030 in0.076 mm
Eng Internal Radial Clearance - Min	0.0053
Eng Internal Radial Clearance - Max	0.0067
Pre Install Clearance Min	0.135 mm0.0053 in
Pre Install Clearance Max	0.170 mm0.0067 in
