Double V-Lock Solid-Block Housed Units

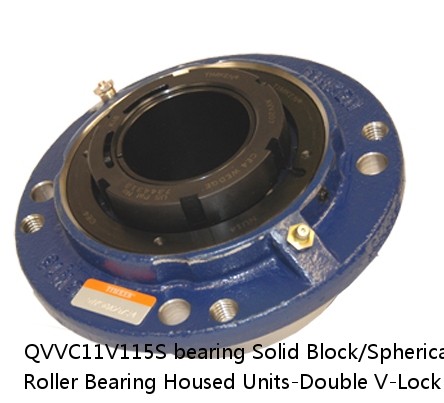

QVVC11V115S Bearing | Solid Block/Spherical Roller Bearing Housed Units-Double V-Lock Piloted Flange Cartridge

QVVC11V115S interchange timken QVVC11V115S
QVVC11V115S cross reference timken QVVC11V115S
QVVC11V115S Equivalent bearing interchange guide：
Price：	enquiry
Model Number：	QVVC11V115S
d:	4.40
D:	2.95
B:	10 lb4.5 Kg
r(min):	0883450090742 0883450090971 0883450101882 0883450101998 0883450109123 0883450109260 0883450117517 08
r1(min):	0.0015 in0.038 mm
Width:	1-15/16 in
Size:	Imperial
Weight：	0.0030 in0.075 mm
Bearing Number：	0.0037 in0.094 mm
Housing Construction：	3800 rpm
UPC Code：	2200 rpm
Shaft Size Type：	1800 rpm

Engineering Group	Mounted Bearing
Bearing Number	22211
Shaft Size	1-15/16 in
Shaft Size Type	Imperial
Full Timken Part Number	QVVC11V115SB QVVC11V115SC QVVC11V115SEB QVVC11V115SEC QVVC11V115SEM QVVC11V115SEN QVVC11V115SEO QVVC11V115SET QVVC11V115SM QVVC11V115SN QVVC11V115SO QVVC11V115ST
Locking Style	Double V-Lock
Weight	10 lb4.5 Kg
Housing Construction	Piloted Flange Cartridge
UPC Code	0883450090742 0883450090971 0883450101882 0883450101998 0883450109123 0883450109260 0883450117517 0883450117968 0883450131698 0883450132145 0883450139670 0883450139922
Dimension BC	5.38 in136.7 mm
Dimension C	2.990 in75.90 mm
Dimension E	3.80 in96.5 mm
Dimension B Fix	2.12 in53.8 mm
Dimension B Exp	2.20 in55.9 mm
Dimension F	6.38 in162.1 mm
Dimension D	4.47 in113.5 mm
Dimension H	0.63 in16.0 mm
Dimension J (Bolt Size)	0.438 in10 mm
Dimension L	3.18 in80.8 mm
Dimension RVV	0.85 in21.6 mm
Dimension SVV	4.02 in102.1 mm
Dimension G	4.500 in114.3 mm
Dimension N	1.06 in26.9 mm
C - Dynamic Load (Basic)	31400 lb140 kN
C0 - Static Load	31900 lb142 kN
e - Geometry Factor	0.23
Y1 - Geometry Factor	2.95
Y2 - Geometry Factor	4.40
Oil Lubrication - M/N Seal	2200 rpm
Oil Lubrication - T Seal	3800 rpm
Oil Lubrication - B/C/O Seal	1800 rpm
Grease Lubrication - M/N Seal	2200 rpm
Grease Lubrication - T Seal	3200 rpm
Grease Lubrication - B/C/O Seal	1600 rpm
Float	0.050 in1.270 mm
Shaft Tolerance	0.0015 in0.038 mm
Eng Internal Radial Clearance - Min	0.0030
Eng Internal Radial Clearance - Max	0.0037
Pre Install Clearance Min	0.0030 in0.075 mm
Pre Install Clearance Max	0.0037 in0.094 mm
