Single Concentric Solid-Block Housed Units

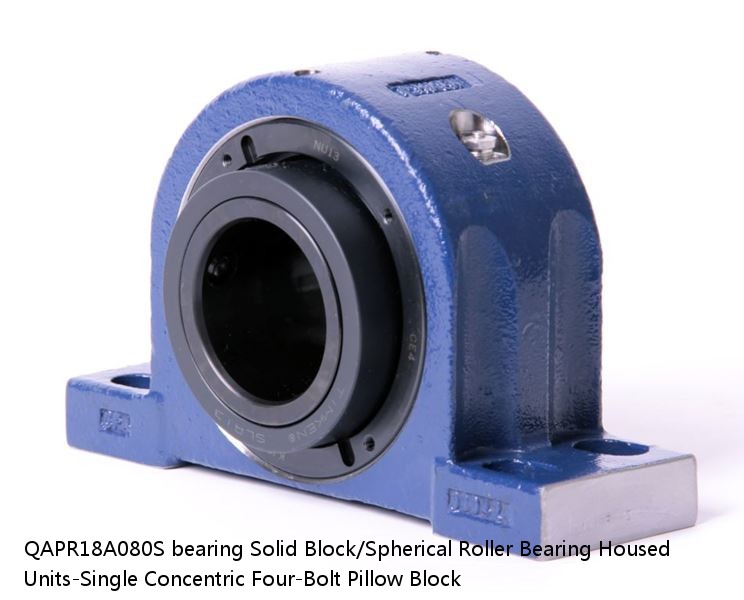

QAPR18A080S Bearing | Solid Block/Spherical Roller Bearing Housed Units-Single Concentric Four-Bolt Pillow Block

QAPR18A080S interchange timken QAPR18A080S
QAPR18A080S cross reference timken QAPR18A080S
QAPR18A080S Equivalent bearing interchange guide：
Price：	enquiry
Model Number：	QAPR18A080S
d:	4.31
D:	2.90
B:	49.0 lb22.2 Kg
r(min):	0883450333368 0883450333375 0883450333382 0883450333399 0883450333405 0883450333412 0883450333429 08
r1(min):	0.0030 in0.076 mm
Width:	80 mm
Size:	Metric
Weight：	0.0024 in0.060 mm
Bearing Number：	0.0039 in0.100 mm
Housing Construction：	2400 rpm
UPC Code：	1400 rpm
Shaft Size Type：	1000 rpm

Engineering Group	Mounted Bearing
Bearing Number	22218
Shaft Size	80 mm
Shaft Size Type	Metric
Full Timken Part Number	QAPR18A080SB QAPR18A080SC QAPR18A080SEB QAPR18A080SEC QAPR18A080SEM QAPR18A080SEN QAPR18A080SEO QAPR18A080SET QAPR18A080SM QAPR18A080SN QAPR18A080SO QAPR18A080ST
Locking Style	Single Concentric
Weight	49.0 lb22.2 Kg
Housing Construction	Four-Bolt Pillow Block
UPC Code	0883450333368 0883450333375 0883450333382 0883450333399 0883450333405 0883450333412 0883450333429 0883450333436 0883450333443 0883450333450 0883450333467 0883450333474
Dimension A	3.75 in95.3 mm
Dimension B	7.69 in195.3 mm
Dimension C	5.13 in130.3 mm
Dimension D Max	11.25 in285.8 mm
Dimension D Min	9.25 in235.0 mm
Dimension E	2.38 in60.5 mm
Dimension F	13.63 in346.2 mm
Dimension G	3.7500 in95.30 mm
Dimension H	1.56 in39.6 mm
Dimension J (Bolt Size)	0.750 in20 mm
Dimension KA	1.44 in36.6 mm
Dimension L	4.47 in113.5 mm
Dimension M	2.59 in65.8 mm
Dimension RA	0.31 in7.9 mm
Dimension SA	4.03 in102.4 mm
C0 - Static Load	87200 lb388 kN
C - Dynamic Load (Basic)	79700 lb355 kN
e - Geometry Factor	0.23
Y1 - Geometry Factor	2.90
Y2 - Geometry Factor	4.31
Oil Lubrication - M/N Seal	1400 rpm
Oil Lubrication - T Seal	2400 rpm
Oil Lubrication - B/C/O Seal	1000 rpm
Grease Lubrication - M/N Seal	1400 rpm
Grease Lubrication - T Seal	2000 rpm
Grease Lubrication - B/C/O Seal	1000 rpm
Float	0.083 in2.108 mm
Shaft Tolerance	0.0030 in0.076 mm
Eng Internal Radial Clearance - Min	0.0024
Eng Internal Radial Clearance - Max	0.0039
Pre Install Clearance Min	0.0024 in0.060 mm
Pre Install Clearance Max	0.0039 in0.100 mm
