Single Concentric Solid-Block Housed Units
  • Solid Block/Spherical Roller Bearing Housed Units-Single Concentric Four-Bolt Pillow Block
  • QAPR18A085S

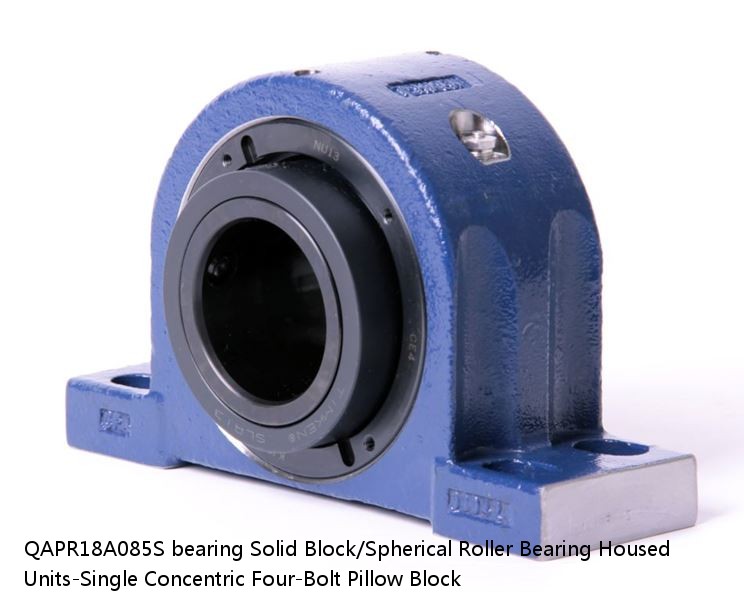

QAPR18A085S Bearing | Solid Block/Spherical Roller Bearing Housed Units-Single Concentric Four-Bolt Pillow Block

QAPR18A085S interchange timken QAPR18A085S
QAPR18A085S cross reference timken QAPR18A085S
QAPR18A085S Equivalent bearing interchange guide:
Price: enquiry
Model Number: QAPR18A085S
d: 4.31
D: 2.90
B: 49.0 lb22.2 Kg
r(min): 0883450333481 0883450333498 0883450333504 0883450333511 0883450333528 0883450333535 0883450333542 08
r1(min): 0.0030 in0.076 mm
Width: 85 mm
Size: Metric
Weight: 0.0024 in0.060 mm
Bearing Number: 0.0039 in0.100 mm
Housing Construction: 2400 rpm
UPC Code: 1400 rpm
Shaft Size Type: 1000 rpm
Engineering GroupMounted Bearing
Bearing Number22218
Shaft Size  85 mm
Shaft Size TypeMetric
Full Timken Part NumberQAPR18A085SB QAPR18A085SC QAPR18A085SEB QAPR18A085SEC QAPR18A085SEM QAPR18A085SEN QAPR18A085SEO QAPR18A085SET QAPR18A085SM QAPR18A085SN QAPR18A085SO QAPR18A085ST
Locking StyleSingle Concentric
Weight49.0 lb22.2 Kg
Housing ConstructionFour-Bolt Pillow Block
UPC Code0883450333481 0883450333498 0883450333504 0883450333511 0883450333528 0883450333535 0883450333542 0883450333559 0883450333566 0883450333573 0883450333580 0883450333597
Dimension A3.75 in95.3 mm
Dimension B7.69 in195.3 mm
Dimension C5.13 in130.3 mm
Dimension D Max11.25 in285.8 mm
Dimension D Min9.25 in235.0 mm
Dimension E2.38 in60.5 mm
Dimension F13.63 in346.2 mm
Dimension G3.7500 in95.30 mm
Dimension H1.56 in39.6 mm
Dimension J (Bolt Size)0.750 in20 mm
Dimension KA1.44 in36.6 mm
Dimension L4.47 in113.5 mm
Dimension M2.59 in65.8 mm
Dimension RA0.31 in7.9 mm
Dimension SA4.03 in102.4 mm
C0 - Static Load87200 lb388 kN
C - Dynamic Load (Basic)79700 lb355 kN
e - Geometry Factor0.23
Y1 - Geometry Factor2.90
Y2 - Geometry Factor4.31
Oil Lubrication - M/N Seal1400 rpm
Oil Lubrication - T Seal2400 rpm
Oil Lubrication - B/C/O Seal1000 rpm
Grease Lubrication - M/N Seal1400 rpm
Grease Lubrication - T Seal2000 rpm
Grease Lubrication - B/C/O Seal1000 rpm
Float0.083 in2.108 mm
Shaft Tolerance0.0030 in0.076 mm
Eng Internal Radial Clearance - Min0.0024
Eng Internal Radial Clearance - Max0.0039
Pre Install Clearance Min0.0024 in0.060 mm
Pre Install Clearance Max0.0039 in0.100 mm
