Double V-Lock Solid-Block Housed Units
- Solid Block/Spherical Roller Bearing Housed Units-Double V-Lock Piloted Flange Cartridge
- QVVC22V400S

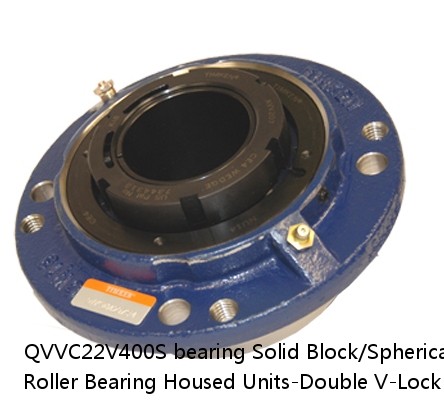

QVVC22V400S Bearing | Solid Block/Spherical Roller Bearing Housed Units-Double V-Lock Piloted Flange Cartridge
QVVC22V400S PDF download| QVVC22V400S interchange timken QVVC22V400S | |
| QVVC22V400S cross reference timken QVVC22V400S | |
| QVVC22V400S Equivalent bearing interchange guide： | |
| Price： | enquiry |
| Model Number： | QVVC22V400S |
| d: | 4.06 |
| D: | 2.73 |
| B: | 43 lb19.50 Kg |
| r(min): | 0883450184380 0883450184571 0883450184762 0883450184847 0883450185035 0883450185226 0883450213318 08 |
| r1(min): | 0.0030 in0.076 mm |
| Width: | 4 in |
| Size: | Imperial |
| Weight： | 0.0053 in0.135 mm |
| Bearing Number： | 0.0067 in0.170 mm |
| Housing Construction： | 1700 rpm |
| UPC Code： | 900 rpm |
| Shaft Size Type： | 600 rpm |
| Engineering Group | Mounted Bearing |
| Bearing Number | 22222 |
| Shaft Size | 4 in |
| Shaft Size Type | Imperial |
| Full Timken Part Number | QVVC22V400SB QVVC22V400SC QVVC22V400SEB QVVC22V400SEC QVVC22V400SEM QVVC22V400SEN QVVC22V400SEO QVVC22V400SET QVVC22V400SM QVVC22V400SN QVVC22V400SO QVVC22V400ST |
| Locking Style | Double V-Lock |
| Weight | 43 lb19.50 Kg |
| Housing Construction | Piloted Flange Cartridge |
| UPC Code | 0883450184380 0883450184571 0883450184762 0883450184847 0883450185035 0883450185226 0883450213318 0883450213691 0883450225731 0883450226110 0883450238151 0883450238533 |
| Dimension BC | 9.38 in238.3 mm |
| Dimension C | 5.5000 in139.70 mm |
| Dimension E | 6.63 in168.4 mm |
| Dimension B Fix | 2.37 in60.2 mm |
| Dimension B Exp | 2.45 in62.2 mm |
| Dimension F | 10.88 in276.4 mm |
| Dimension D | 8.76 in222.5 mm |
| Dimension H | 1.00 in25.4 mm |
| Dimension J (Bolt Size) | 0.75 in20 mm |
| Dimension L | 4.54 in115.3 mm |
| Dimension RVV | 0.46 in11.7 mm |
| Dimension SVV | 4.99 in126.7 mm |
| Dimension G | 8.125 in206.4 mm |
| Dimension N | 2.13 in54.1 mm |
| C - Dynamic Load (Basic) | 125000 lb555 kN |
| C0 - Static Load | 147000 lb653 kN |
| e - Geometry Factor | 0.25 |
| Y1 - Geometry Factor | 2.73 |
| Y2 - Geometry Factor | 4.06 |
| Oil Lubrication - M/N Seal | 900 rpm |
| Oil Lubrication - T Seal | 1700 rpm |
| Oil Lubrication - B/C/O Seal | 600 rpm |
| Grease Lubrication - M/N Seal | 900 rpm |
| Grease Lubrication - T Seal | 1200 rpm |
| Grease Lubrication - B/C/O Seal | 600 rpm |
| Float | 0.083 in2.108 mm |
| Shaft Tolerance | 0.0030 in0.076 mm |
| Eng Internal Radial Clearance - Min | 0.0053 |
| Eng Internal Radial Clearance - Max | 0.0067 |
| Pre Install Clearance Min | 0.0053 in0.135 mm |
| Pre Install Clearance Max | 0.0067 in0.170 mm |
| No. | Weight | Bearing Number | Housing Construction | UPC Code | Shaft Size Type | Full Timken Part Number |
|---|---|---|---|---|---|---|
| LM 81524 F UU | Both side Seal (UU) | Stainless | LM 81524 F UU | Stainless | 8 | - |
| 7304 FY | 20 | 0.600 | 1.100 | 21000 | 17000 | 7304FY |
| H3996 | 66.00 Kg | Tr480x5 | MS 3096 | HM 3096 | 200.00 mm | 560 mm |
| QMMH15J215S | 4.67 | 3.14 | 22.00 lb10.00 Kg | 0883450410199 0883450417952 0883450417969 0883450417976 0883450417983 0883450417990 0883450418003 08 | 1-8UNC | 0.0020 in0.051 mm |
| 230/670YMBW507C08C3 | 3.05 | 4.65 | 3.12 | 380 | 330 | 6.000 mm0.240 in |
| SDA5040VZ-3G0+146LC0 | SDA5040VZ-3 | 146.000 | None | Overall thread lenght is ... | There is the groove on bo... | - |
| 6905 | 25 | 0.3 | 6905 | 0.04 | 19000 | 16000 |
| 7224C FY | 120 | 2.1 | 7224C FY | 6300 | 4800 | 215 |
| NA59/28 | 0.30 | NA59/28 | 0.142 | 13000 | 8500 | 45 |
| QVCW14V065S | 4.32 | 2.90 | 16 lb7.30 Kg | 0883450038126 0883450062114 0883450105972 0883450106016 0883450185950 0883450213745 0883450214124 08 | 0.0015 in0.038 mm | 65 mm |
