Single V-Lock Solid-Block Housed Units
  • Solid Block/Spherical Roller Bearing Housed Units-Single V-Lock Four-Bolt Pillow Block
  • QVPH20V304S

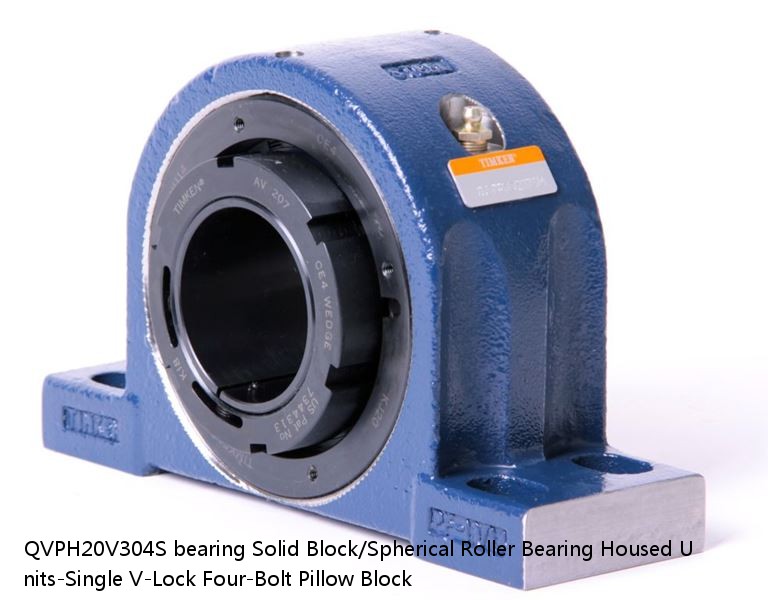

QVPH20V304S Bearing | Solid Block/Spherical Roller Bearing Housed Units-Single V-Lock Four-Bolt Pillow Block

QVPH20V304S interchange timken QVPH20V304S
QVPH20V304S cross reference timken QVPH20V304S
QVPH20V304S Equivalent bearing interchange guide:
Price: enquiry
Model Number: QVPH20V304S
d: 4.24
D: 2.85
B: 70.0 lb31.8 Kg
r(min): 0883450148252 0883450148498 0883450153089 0883450153249 0883450175395 0883450176026 0883450185295 08
r1(min): 0.0030 in0.076 mm
Width: 3-1/4 in
Size: Imperial
Weight: 0.0043 in0.109 mm
Bearing Number: 0.0055 in0.140 mm
Housing Construction: 2000 rpm
UPC Code: 1200 rpm
Shaft Size Type: 900 rpm
Engineering GroupMounted Bearing
Bearing Number22220
Shaft Size  3-1/4 in
Shaft Size TypeImperial
Full Timken Part NumberQVPH20V304SB QVPH20V304SC QVPH20V304SEB QVPH20V304SEC QVPH20V304SEM QVPH20V304SEN QVPH20V304SEO QVPH20V304SET QVPH20V304SM QVPH20V304SN QVPH20V304SO QVPH20V304ST
Locking StyleSingle V-Lock
Weight70.0 lb31.8 Kg
Housing ConstructionFour-Bolt Pillow Block
UPC Code0883450148252 0883450148498 0883450153089 0883450153249 0883450175395 0883450176026 0883450185295 0883450185448 0883450278201 0883450278553 0883450283045 0883450283199
Dimension A4.50 in114.3 mm
Dimension B8.54 in216.9 mm
Dimension C4.9 in124.5 mm
Dimension D Max13.38 in339.9 mm
Dimension D Min10.88 in276.4 mm
Dimension E2.38 in60.5 mm
Dimension F15.000 in381.00 mm
Dimension G4.310 in109.50 mm
Dimension H1.65 in41.9 mm
Dimension J (Bolt Size)0.750 in20 mm
Dimension L4.47 in113.5 mm
Dimension RV0.47 in11.9 mm
Dimension SV3.75 in95.3 mm
C0 - Static Load113000 lb502 kN
C - Dynamic Load (Basic)97700 lb435 kN
e - Geometry Factor0.24
Y1 - Geometry Factor2.85
Y2 - Geometry Factor4.24
Oil Lubrication - M/N Seal1200 rpm
Oil Lubrication - T Seal2000 rpm
Oil Lubrication - B/C/O Seal900 rpm
Grease Lubrication - M/N Seal1200 rpm
Grease Lubrication - T Seal1600 rpm
Grease Lubrication - B/C/O Seal900 rpm
Float0.083 in2.108 mm
Shaft Tolerance0.0030 in0.076 mm
Eng Internal Radial Clearance - Min0.0043
Eng Internal Radial Clearance - Max0.0055
Pre Install Clearance Min0.0043 in0.109 mm
Pre Install Clearance Max0.0055 in0.140 mm



No. Weight  Bearing Number  Housing Construction  UPC Code  Shaft Size Type  Full Timken Part Number
3034089.002006.0303401100820
SAL 25 ES-2RS78.00048.00065.00025.00018.00020.000
UKT320+H2320XB-PT1/890 / Heavy-duty(3)90Heavy-duty(3)UKT320+H2320X -
EE275109DGW/2751604.8125 in122.238 mm2750000.060 in1.50 mmSpacer shows standard nominal .01 radii, actual bearing may varyImperial16.0000 in406.400 mm
FBL35E-P14+305LFBL35E-P14 - - - - -
NK20/16RCT0.30NK20/16RCT0.0270200001300028
22210EJW332.784.232.8422210CJW3362005000
239/600YMBW903C08C34.116.254.24804104.000 mm0.160 in
6213NR-651.51.56213NR1.000
240/1120CAMK30E4240/1120CAMK30E42790.0015802.53.72.5
