Eccentric Solid-Block Housed Units
- Solid Block/Spherical Roller Bearing Housed Units-Eccentric Piloted Flange Cartridge
- QMCW10J050S

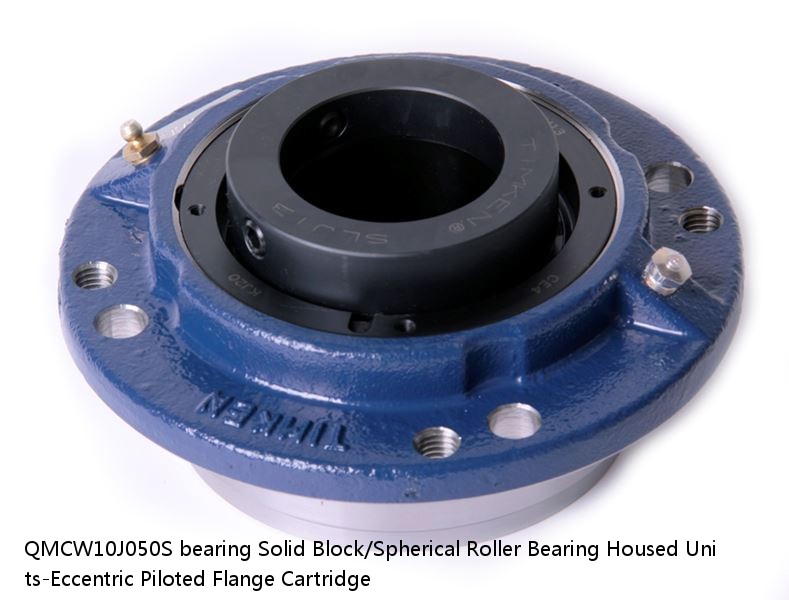

QMCW10J050S Bearing | Solid Block/Spherical Roller Bearing Housed Units-Eccentric Piloted Flange Cartridge
QMCW10J050S PDF download| QMCW10J050S interchange timken QMCW10J050S | |
| QMCW10J050S cross reference timken QMCW10J050S | |
| QMCW10J050S Equivalent bearing interchange guide： | |
| Price： | enquiry |
| Model Number： | QMCW10J050S |
| d: | 4.23 |
| D: | 2.84 |
| B: | 10 lb4.5 Kg |
| r(min): | 0883450061827 0883450061834 0883450061858 0883450061865 0883450061872 0883450061889 0883450061896 08 |
| r1(min): | 0.0015 in0.038 mm |
| Width: | 50 mm |
| Size: | Metric |
| Weight： | 0.0016 in0.040 mm |
| Bearing Number： | 0.0026 in0.065 mm |
| Housing Construction： | 4200 rpm |
| UPC Code： | 2400 rpm |
| Shaft Size Type： | 1800 rpm |
| Engineering Group | Mounted Bearing |
| Bearing Number | 22210 |
| Shaft Size | 50 mm |
| Shaft Size Type | Metric |
| Full Timken Part Number | QMCW10J050SB QMCW10J050SC QMCW10J050SEB QMCW10J050SEC QMCW10J050SEM QMCW10J050SEN QMCW10J050SEO QMCW10J050SET QMCW10J050SM QMCW10J050SN QMCW10J050SO QMCW10J050ST |
| Locking Style | Eccentric |
| Weight | 10 lb4.5 Kg |
| Housing Construction | Piloted Flange Cartridge |
| UPC Code | 0883450061827 0883450061834 0883450061858 0883450061865 0883450061872 0883450061889 0883450061896 0883450061902 0883450166447 0883450167161 0883450258609 0883450259149 |
| Dimension BC | 5.38 in136.7 mm |
| Dimension C | 2.760 in70.10 mm |
| Dimension E | 3.80 in96.5 mm |
| Dimension B Fix | 1.54 in39.1 mm |
| Dimension B Exp | 1.62 in41.1 mm |
| Dimension F | 6.38 in162.1 mm |
| Dimension D | 4.47 in113.5 mm |
| Dimension H | 0.38 in9.7 mm |
| Dimension J (Bolt Size) | 0.438 in10 mm |
| Dimension M | 1.89 in48 mm |
| Dimension R | 0.17 in4.3 mm |
| Dimension S | 2.87 in72.9 mm |
| Dimension G | 4.500 in114.3 mm |
| Dimension K | 0.98 in24.9 mm |
| Dimension L Exp | 3.12 in79.2 mm |
| Dimension L Fix | 3.04 in77.2 mm |
| Dimension N | 1.50 in38.1 mm |
| C0 - Static Load | 26600 lb118 kN |
| C - Dynamic Load (Basic) | 26300 lb117 kN |
| e - Geometry Factor | 0.24 |
| Y1 - Geometry Factor | 2.84 |
| Y2 - Geometry Factor | 4.23 |
| Oil Lubrication - M/N Seal | 2400 rpm |
| Oil Lubrication - T Seal | 4200 rpm |
| Oil Lubrication - B/C/O Seal | 1800 rpm |
| Grease Lubrication - M/N Seal | 2400 rpm |
| Grease Lubrication - T Seal | 3550 rpm |
| Grease Lubrication - B/C/O Seal | 1800 rpm |
| Float | 0.050 in1.270 mm |
| Shaft Tolerance | 0.0015 in0.038 mm |
| Eng Internal Radial Clearance - Min | 0.0016 |
| Eng Internal Radial Clearance - Max | 0.0026 |
| Pre Install Clearance Min | 0.0016 in0.040 mm |
| Pre Install Clearance Max | 0.0026 in0.065 mm |
| No. | Weight | Bearing Number | Housing Construction | UPC Code | Shaft Size Type | Full Timken Part Number |
|---|---|---|---|---|---|---|
| SNW-38X6-7/8 | HMVC 38E | AN 38 | SNW-38X6-7/8 | 240.640 | 174.625 | 190.000 |
| QAAP10A115S | 4.23 | 2.84 | 13 lb5.9 Kg | 0883450025300 0883450025317 0883450025331 0883450025348 0883450025355 0883450025362 0883450025379 08 | 0.0015 in0.038 mm | 1-15/16 in |
| 28584R/21 | 24.608 | 52.388 | 3.60 | 28584R/21 | 5600 | 4200 |
| 4T-LM104949/LM104911 | 50.800 | 1.3 | 3.5 | 4T-LM104949/LM104911 | 0,42 | 82.550 |
| FCJSBE-52 | 12.0 | 12.0 | 8450 | 27 | 20 | 26400 |
| NH2232 | 160 | 3.0 | NH2232 | 2500 | 1800 | 290 |
| 7034DB FY | 170 | 1.1 | 2.1 | 2600 | 2100 | 7034DBFY |
| 463/500A | 330 | 500 | 4.0 | 7.5 | 463/500A | 830 |
| JM612949/JM612910 | 29.000 mm1.1417 in | M612900 | 2.54 mm0.1 in | 3.050 mm0.12 in | 76.7 | METRIC |
| QVVFL19V080S | 4.17 | 2.80 | 35 lb15.90 Kg | 0883450180535 0883450180726 0883450180917 0883450180993 0883450181181 0883450181372 0883450211741 08 | 0.0030 in0.076 mm | 80 mm |
