Eccentric Solid-Block Housed Units
  • Solid Block/Spherical Roller Bearing Housed Units-Eccentric Piloted Flange Cartridge
  • QMCW10J200S

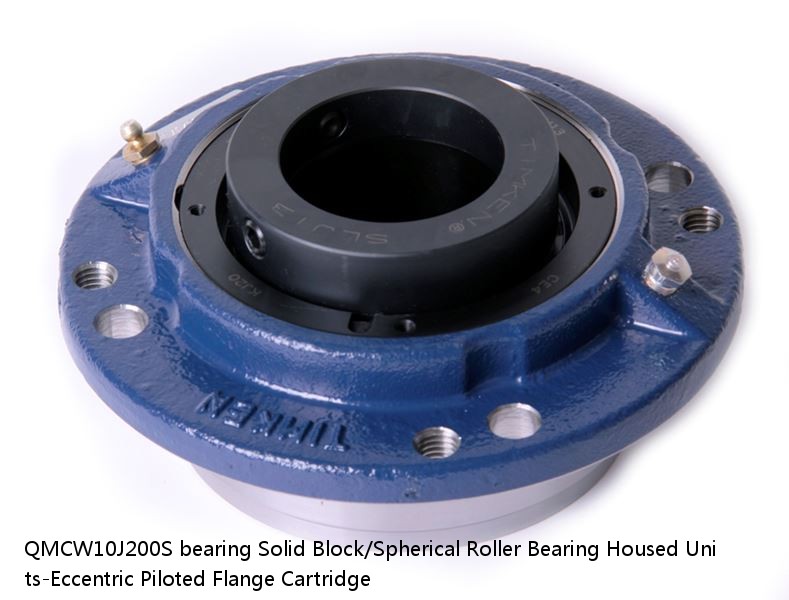

QMCW10J200S Bearing | Solid Block/Spherical Roller Bearing Housed Units-Eccentric Piloted Flange Cartridge

QMCW10J200S interchange timken QMCW10J200S
QMCW10J200S cross reference timken QMCW10J200S
QMCW10J200S Equivalent bearing interchange guide:
Price: enquiry
Model Number: QMCW10J200S
d: 4.23
D: 2.84
B: 10 lb4.5 Kg
r(min): 0883450062022 0883450062039 0883450062053 0883450062060 0883450062077 0883450062084 0883450062091 08
r1(min): 0.0015 in0.038 mm
Width: 2 in
Size: Imperial
Weight: 0.0016 in0.040 mm
Bearing Number: 0.0026 in0.065 mm
Housing Construction: 4200 rpm
UPC Code: 2400 rpm
Shaft Size Type: 1800 rpm
Engineering GroupMounted Bearing
Bearing Number22210
Shaft Size  2 in
Shaft Size TypeImperial
Full Timken Part NumberQMCW10J200SB QMCW10J200SC QMCW10J200SEB QMCW10J200SEC QMCW10J200SEM QMCW10J200SEN QMCW10J200SEO QMCW10J200SET QMCW10J200SM QMCW10J200SMT QMCW10J200SN QMCW10J200SO QMCW10J200ST
Locking StyleEccentric
Weight10 lb4.5 Kg
Housing ConstructionPiloted Flange Cartridge
UPC Code0883450062022 0883450062039 0883450062053 0883450062060 0883450062077 0883450062084 0883450062091 0883450062107 0883450166430 0883450167154 0883450258593 0883450259132 0883450961424
Dimension BC5.38 in136.7 mm
Dimension C2.760 in70.10 mm
Dimension E3.80 in96.5 mm
Dimension B Fix1.54 in39.1 mm
Dimension B Exp1.62 in41.1 mm
Dimension F6.38 in162.1 mm
Dimension D4.47 in113.5 mm
Dimension H0.38 in9.7 mm
Dimension J (Bolt Size)0.438 in10 mm
Dimension M1.89 in48 mm
Dimension R0.17 in4.3 mm
Dimension S2.87 in72.9 mm
Dimension G4.500 in114.3 mm
Dimension K0.98 in24.9 mm
Dimension L Exp3.12 in79.2 mm
Dimension L Fix3.04 in77.2 mm
Dimension N1.50 in38.1 mm
C0 - Static Load26600 lb118 kN
C - Dynamic Load (Basic)26300 lb117 kN
e - Geometry Factor0.24
Y1 - Geometry Factor2.84
Y2 - Geometry Factor4.23
Oil Lubrication - M/N Seal2400 rpm
Oil Lubrication - T Seal4200 rpm
Oil Lubrication - B/C/O Seal1800 rpm
Grease Lubrication - M/N Seal2400 rpm
Grease Lubrication - T Seal3550 rpm
Grease Lubrication - B/C/O Seal1800 rpm
Float0.050 in1.270 mm
Shaft Tolerance0.0015 in0.038 mm
Eng Internal Radial Clearance - Min0.0016
Eng Internal Radial Clearance - Max0.0026
Pre Install Clearance Min0.0016 in0.040 mm
Pre Install Clearance Max0.0026 in0.065 mm



No. Weight  Bearing Number  Housing Construction  UPC Code  Shaft Size Type  Full Timken Part Number
6008/C30.190 Kg1.000 mm15.000 mm68.000 mm15000 rpm10000 rpm
2MVC204WI1 mm0.039 in1 mm0.039 in85600 rpm42800 rpm7.937500 mm5/16 inMETRIC
UKF326+H2326A-PT1/8115Heavy duty(3)UKF326+H2326 - -
105RU32R3NUN27002400METRIC175.000 mm6.900 in
62211/2RS/C30.68 Kg1.500 mm25.000 mm100.000 mm7800 rpm7800 rpm
355A/354A20.63844.4500.80355A/354A62004600
NH3482405.0NH3481300990500
QAASN18A303S4.312.9056 lb25.5 Kg0883450350662 0883450350679 0883450350686 0883450350693 0883450350709 0883450350716 0883450350723 080.0030 in0.076 mm3-3/16 in
32315 B58.0004000320053.000475.000410.000
SAF 22528 5LOR 123Triple Ring SealSAF528 x 5.00011.7500 inSAF22528516.0000 in
