Eccentric Solid-Block Housed Units
- Solid Block/Spherical Roller Bearing Housed Units-Eccentric Piloted Flange Cartridge
- QMCW11J203S

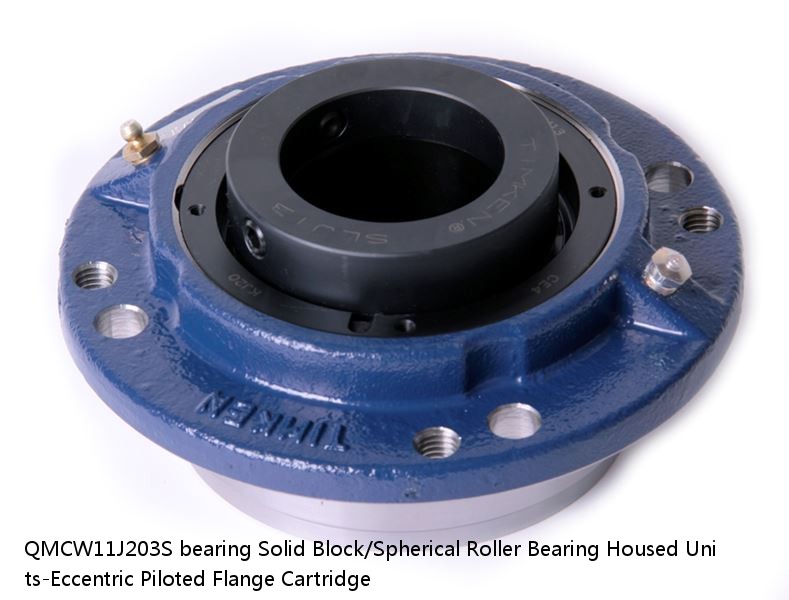

QMCW11J203S bearing | Solid Block/Spherical Roller Bearing Housed Units-Eccentric Piloted Flange Cartridge
QMCW11J203S PDF download| Price： | enquiry |
| Model Number： | QMCW11J203S |
| Weight： | 4.40 |
| Bearing Number： | 2.95 |
| Housing Construction： | 13 lb5.9 Kg |
| UPC Code： | 0883450062121 0883450062138 0883450062152 0883450062169 0883450062176 0883450062183 0883450062190 08 |
| Shaft Size Type： | 0.0015 in0.038 mm |
| Engineering Group | Mounted Bearing |
| Bearing Number | 22211 |
| Shaft Size | 2-3/16 in |
| Shaft Size Type | Imperial |
| Full Timken Part Number | QMCW11J203SB QMCW11J203SC QMCW11J203SEB QMCW11J203SEC QMCW11J203SEM QMCW11J203SEN QMCW11J203SEO QMCW11J203SET QMCW11J203SLRC QMCW11J203SM QMCW11J203SMB QMCW11J203SN QMCW11J203SO QMCW11J203ST |
| Locking Style | Eccentric |
| Weight | 13 lb5.9 Kg |
| Housing Construction | Piloted Flange Cartridge |
| UPC Code | 0883450062121 0883450062138 0883450062152 0883450062169 0883450062176 0883450062183 0883450062190 0883450062206 0883450166454 0883450167178 0883450258616 0883450259156 0883450410953 0883450495769 |
| Dimension BC | 6.00 in152.4 mm |
| Dimension C | 2.990 in75.90 mm |
| Dimension E | 4.24 in107.7 mm |
| Dimension B Fix | 1.80 in45.7 mm |
| Dimension B Exp | 1.88 in47.8 mm |
| Dimension F | 7.13 in181.1 mm |
| Dimension D | 5.00 in127.0 mm |
| Dimension H | 0.56 in14.2 mm |
| Dimension J (Bolt Size) | 0.5 in12 mm |
| Dimension M | 1.99 in50.5 mm |
| Dimension R | 0.30 in7.6 mm |
| Dimension S | 3.12 in79.2 mm |
| Dimension G | 5.000 in127.0 mm |
| Dimension K | 1.13 in28.7 mm |
| Dimension L Exp | 3.50 in88.9 mm |
| Dimension L Fix | 3.42 in86.9 mm |
| Dimension N | 1.63 in41.4 mm |
| C0 - Static Load | 31900 lb142 kN |
| C - Dynamic Load (Basic) | 31400 lb140 kN |
| e - Geometry Factor | 0.23 |
| Y1 - Geometry Factor | 2.95 |
| Y2 - Geometry Factor | 4.40 |
| Oil Lubrication - M/N Seal | 2200 rpm |
| Oil Lubrication - T Seal | 3800 rpm |
| Oil Lubrication - B/C/O Seal | 1600 rpm |
| Grease Lubrication - M/N Seal | 2200 rpm |
| Grease Lubrication - T Seal | 3200 rpm |
| Grease Lubrication - B/C/O Seal | 1600 rpm |
| Float | 0.050 in1.270 mm |
| Shaft Tolerance | 0.0015 in0.038 mm |
| Eng Internal Radial Clearance - Min | 0.0016 |
| Eng Internal Radial Clearance - Max | 0.0026 |
| Pre Install Clearance Min | 0.0016 in0.040 mm |
| Pre Install Clearance Max | 0.0026 in0.065 mm |
| No. | Weight | Bearing Number | Housing Construction | UPC Code | Shaft Size Type | Full Timken Part Number |
|---|---|---|---|---|---|---|
| HJ-445628IR-354428 | 55.563 | 2.03 | IR-354428 | HJ-445628 | 6200 | 69.850 |
| 7019C FY | 95 | 1.000 | 1.500 | 8900 | 6700 | 7019CFY |
| AW26 | 130 | 19 | 11.300 | AN26 | 12 | 175 |
| BT4B 328912 E1/C300 | 317.500 | 830 | 10000 | 5100 | BT4B 328912 E1/C300 | 355.600 |
| 62162RU | 80 | 2.0 | 4500 | 62162RU | 140 | 3.25 |
| 6304/RS | 0.140 Kg | 1.100 mm | 15.000 mm | 52.000 mm | 20000 rpm | 13000 rpm |
| 23032KEMW33C3 | 3.05 | 4.65 | 3.12 | 2400 | 2000 | 2.00 mm0.080 in |
| 4.5x21.8F | 4.5x21.8F | 2.700 | 21.8 | 4.5 | 0.1 | - |
| PSS2520N1D0729 | 729 | PSS2520N1D0729 | 500 | 604 | - | - |
| 24176CAME4 | 24176CAME4 | 275.00 | 620 | 1.8 | 2.6 | 1.7 |
