Eccentric Solid-Block Housed Units
  • Solid Block/Spherical Roller Bearing Housed Units-Eccentric Piloted Flange Cartridge
  • QMCW20J311S

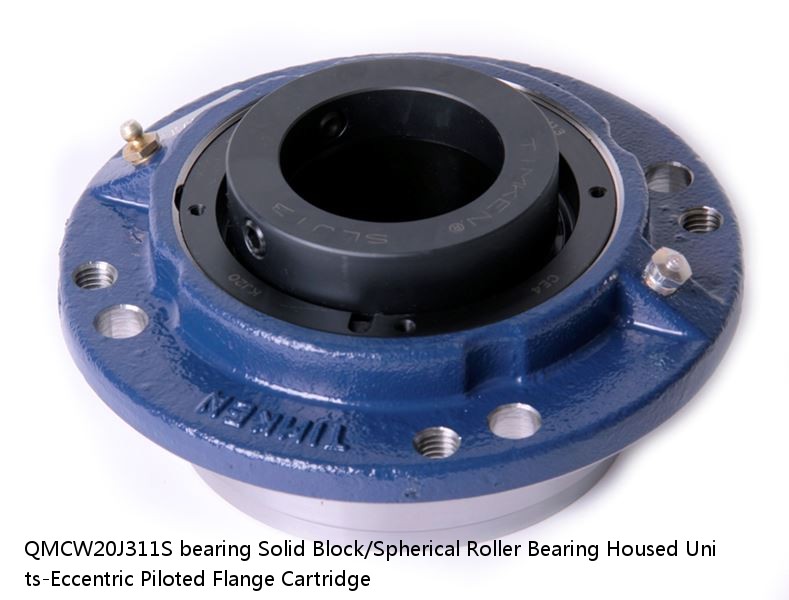

QMCW20J311S Bearing | Solid Block/Spherical Roller Bearing Housed Units-Eccentric Piloted Flange Cartridge

QMCW20J311S interchange timken QMCW20J311S
QMCW20J311S cross reference timken QMCW20J311S
QMCW20J311S Equivalent bearing interchange guide:
Price: enquiry
Model Number: QMCW20J311S
d: 4.24
D: 2.85
B: 43 lb19.50 Kg
r(min): 0883450063920 0883450063937 0883450063951 0883450063968 0883450063975 0883450063982 0883450063999 08
r1(min): 0.0030 in0.076 mm
Width: 3-11/16 in
Size: Imperial
Weight: 0.0030 in0.075 mm
Bearing Number: 0.0047 in0.120 mm
Housing Construction: 2000 rpm
UPC Code: 1200 rpm
Shaft Size Type: 900 rpm
Engineering GroupMounted Bearing
Bearing Number22220
Shaft Size  3-11/16 in
Shaft Size TypeImperial
Full Timken Part NumberQMCW20J311SB QMCW20J311SC QMCW20J311SEB QMCW20J311SEC QMCW20J311SEM QMCW20J311SEN QMCW20J311SEO QMCW20J311SET QMCW20J311SM QMCW20J311SN QMCW20J311SO QMCW20J311ST
Locking StyleEccentric
Weight43 lb19.50 Kg
Housing ConstructionPiloted Flange Cartridge
UPC Code0883450063920 0883450063937 0883450063951 0883450063968 0883450063975 0883450063982 0883450063999 0883450064002 0883450166638 0883450167352 0883450258814 0883450259354
Dimension BC9.38 in238.3 mm
Dimension C6.0000 in152.4 mm
Dimension E6.63 in168.4 mm
Dimension B Fix2.50 in63.5 mm
Dimension B Exp2.58 in65.5 mm
Dimension F10.88 in276.4 mm
Dimension D8.13 in206.5 mm
Dimension H1.00 in25.4 mm
Dimension J (Bolt Size)0.75 in20 mm
Dimension M2.96 in75.2 mm
Dimension R0.16 in4.1 mm
Dimension S4.590 in116.60 mm
Dimension G8.125 in206.4 mm
Dimension K1.63 in41.4 mm
Dimension L Exp4.83 in122.7 mm
Dimension L Fix4.75 in120.7 mm
Dimension N2.25 in57.2 mm
C0 - Static Load113000 lb502 kN
C - Dynamic Load (Basic)97700 lb435 kN
e - Geometry Factor0.24
Y1 - Geometry Factor2.85
Y2 - Geometry Factor4.24
Oil Lubrication - M/N Seal1200 rpm
Oil Lubrication - T Seal2000 rpm
Oil Lubrication - B/C/O Seal900 rpm
Grease Lubrication - M/N Seal1200 rpm
Grease Lubrication - T Seal1600 rpm
Grease Lubrication - B/C/O Seal900 rpm
Float0.083 in2.108 mm
Shaft Tolerance0.0030 in0.076 mm
Eng Internal Radial Clearance - Min0.0030
Eng Internal Radial Clearance - Max0.0047
Pre Install Clearance Min0.0030 in0.075 mm
Pre Install Clearance Max0.0047 in0.120 mm



No. Weight  Bearing Number  Housing Construction  UPC Code  Shaft Size Type  Full Timken Part Number
UP000J10Light-duty(0)UP000JStandard - -
24156KEMBW40IW534C41.822.771.865405104.000 mm0.160 in
51172X2.02.036051172X80021.500
QAFL20A100S4.232.8455 lb24.90 Kg0883450287777 0883450287784 0883450287791 0883450287807 0883450287814 0883450287821 0883450287838 080.0030 in0.076 mm100 mm
QVVFY28V500S3.892.62115 lb52.2 Kg0883450093149 0883450093811 0883450106290 0883450106481 0883450112581 0883450112802 0883450124669 080.0050 in0.127 mm5 in
QASN13A207S4.152.7935 lb15.90 Kg0883450353687 0883450353694 0883450353700 0883450353717 0883450353724 0883450353731 0883450353748 080.0015 in0.038 mm2-7/16 in
C 30/710 M560400 - 710.0001060.00017300.000
SYR-2.11/16N35.7187528000.7937520.01757.826944.482
6217/RS/C31.80 Kg2.000 mm28.000 mm150.000 mm7200 rpm5000 rpm
23238RHA4.0130099023238RHA340185
