Eccentric Solid-Block Housed Units
- Solid Block/Spherical Roller Bearing Housed Units-Eccentric Piloted Flange Cartridge
- QMCW20J315S

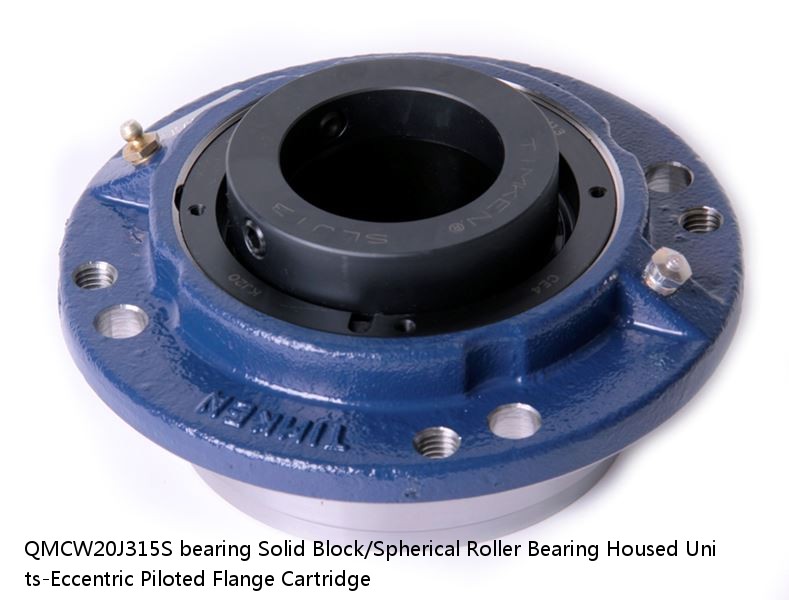

QMCW20J315S Bearing | Solid Block/Spherical Roller Bearing Housed Units-Eccentric Piloted Flange Cartridge
QMCW20J315S PDF download| QMCW20J315S interchange timken QMCW20J315S | |
| QMCW20J315S cross reference timken QMCW20J315S | |
| QMCW20J315S Equivalent bearing interchange guide： | |
| Price： | enquiry |
| Model Number： | QMCW20J315S |
| d: | 4.24 |
| D: | 2.85 |
| B: | 43 lb19.50 Kg |
| r(min): | 0883450064125 0883450064132 0883450064156 0883450064163 0883450064170 0883450064187 0883450064194 08 |
| r1(min): | 0.0030 in0.076 mm |
| Width: | 3-15/16 in |
| Size: | Imperial |
| Weight： | 0.0030 in0.075 mm |
| Bearing Number： | 0.0047 in0.120 mm |
| Housing Construction： | 2000 rpm |
| UPC Code： | 1200 rpm |
| Shaft Size Type： | 900 rpm |
| Engineering Group | Mounted Bearing |
| Bearing Number | 22220 |
| Shaft Size | 3-15/16 in |
| Shaft Size Type | Imperial |
| Full Timken Part Number | QMCW20J315SB QMCW20J315SC QMCW20J315SEB QMCW20J315SEC QMCW20J315SEM QMCW20J315SEN QMCW20J315SEO QMCW20J315SET QMCW20J315SM QMCW20J315SMT QMCW20J315SN QMCW20J315SO QMCW20J315ST |
| Locking Style | Eccentric |
| Weight | 43 lb19.50 Kg |
| Housing Construction | Piloted Flange Cartridge |
| UPC Code | 0883450064125 0883450064132 0883450064156 0883450064163 0883450064170 0883450064187 0883450064194 0883450064200 0883450166652 0883450167376 0883450258838 0883450259378 0883450959483 |
| Dimension BC | 9.38 in238.3 mm |
| Dimension C | 6.0000 in152.4 mm |
| Dimension E | 6.63 in168.4 mm |
| Dimension B Fix | 2.50 in63.5 mm |
| Dimension B Exp | 2.58 in65.5 mm |
| Dimension F | 10.88 in276.4 mm |
| Dimension D | 8.13 in206.5 mm |
| Dimension H | 1.00 in25.4 mm |
| Dimension J (Bolt Size) | 0.75 in20 mm |
| Dimension M | 2.96 in75.2 mm |
| Dimension R | 0.16 in4.1 mm |
| Dimension S | 4.590 in116.60 mm |
| Dimension G | 8.125 in206.4 mm |
| Dimension K | 1.63 in41.4 mm |
| Dimension L Exp | 4.83 in122.7 mm |
| Dimension L Fix | 4.75 in120.7 mm |
| Dimension N | 2.25 in57.2 mm |
| C0 - Static Load | 113000 lb502 kN |
| C - Dynamic Load (Basic) | 97700 lb435 kN |
| e - Geometry Factor | 0.24 |
| Y1 - Geometry Factor | 2.85 |
| Y2 - Geometry Factor | 4.24 |
| Oil Lubrication - M/N Seal | 1200 rpm |
| Oil Lubrication - T Seal | 2000 rpm |
| Oil Lubrication - B/C/O Seal | 900 rpm |
| Grease Lubrication - M/N Seal | 1200 rpm |
| Grease Lubrication - T Seal | 1600 rpm |
| Grease Lubrication - B/C/O Seal | 900 rpm |
| Float | 0.083 in2.108 mm |
| Shaft Tolerance | 0.0030 in0.076 mm |
| Eng Internal Radial Clearance - Min | 0.0030 |
| Eng Internal Radial Clearance - Max | 0.0047 |
| Pre Install Clearance Min | 0.0030 in0.075 mm |
| Pre Install Clearance Max | 0.0047 in0.120 mm |
| No. | Weight | Bearing Number | Housing Construction | UPC Code | Shaft Size Type | Full Timken Part Number |
|---|---|---|---|---|---|---|
| 7332BDB | 160 | 1.50 | 4.0 | 7332B | 29.800 | 2 400 |
| 23932AXW33 | 160 | 2.0 | 5.29 | 2800 | 2250 | 220 |
| AW25 | 125 | 19 | 11.800 | AN25 | 12 | 170 |
| AH3044G | 7.13 Kg | Tr230x4 | 1:12 | 117.00 mm | 111.00 mm | 200.00 mm |
| 6992 | 460 | 4.0 | 6992 | 62.20 | 1000 | 850 |
| NUP234 | 170 | 4.0 | 4.0 | NUP234 | 17.000 | 2 500 |
| 23160EMBW509C08C3 | 2.2 | 3.35 | 2.25 | 760 | 680 | 4.000 mm0.160 in |
| SSAFS 22526 | 466.725 | SSAFS 526 | 152.4000 | 292.10000 | SSAFS 22526 | 112.7125 |
| HJ2336 | 180 | HJ2336 | 4.42 | 4.0 | - | - |
| NA 4968 | 340 | NA 4968 | 57300.0 | 380 | 460 | 1220000 |
