Eccentric Solid-Block Housed Units
  • Solid Block/Spherical Roller Bearing Housed Units-Eccentric Piloted Flange Cartridge
  • QMCW22J110S

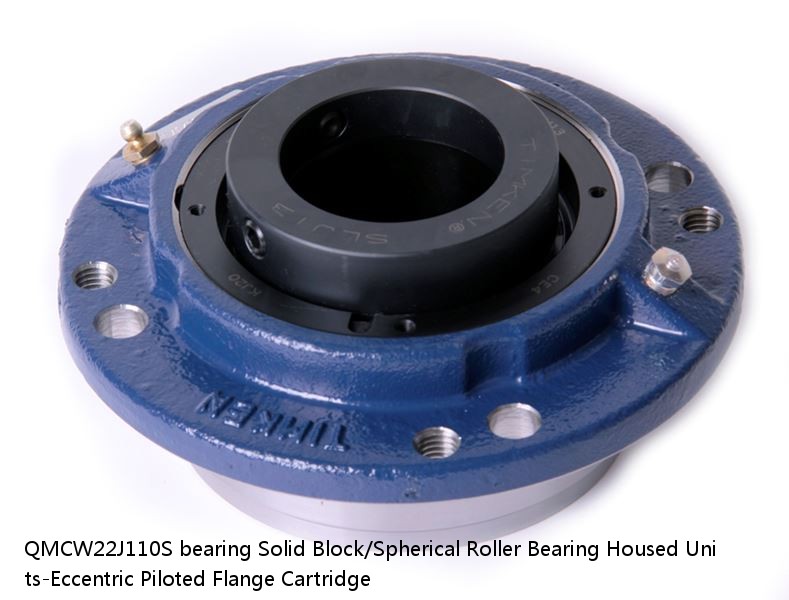

QMCW22J110S Bearing | Solid Block/Spherical Roller Bearing Housed Units-Eccentric Piloted Flange Cartridge

QMCW22J110S interchange timken QMCW22J110S
QMCW22J110S cross reference timken QMCW22J110S
QMCW22J110S Equivalent bearing interchange guide:
Price: enquiry
Model Number: QMCW22J110S
d: 4.06
D: 2.73
B: 72 lb32.7 Kg
r(min): 0883450166683 0883450166874 0883450166935 0883450166997 0883450167055 0883450167406 0883450167598 08
r1(min): 0.0050 in0.127 mm
Width: 110 mm
Size: Metric
Weight: 0.0030 in0.075 mm
Bearing Number: 0.0047 in0.120 mm
Housing Construction: 1700 rpm
UPC Code: 900 rpm
Shaft Size Type: 600 rpm
Engineering GroupMounted Bearing
Bearing Number22222
Shaft Size  110 mm
Shaft Size TypeMetric
Full Timken Part NumberQMCW22J110SB QMCW22J110SC QMCW22J110SEB QMCW22J110SEC QMCW22J110SEM QMCW22J110SEN QMCW22J110SEO QMCW22J110SET QMCW22J110SM QMCW22J110SN QMCW22J110SO QMCW22J110ST
Locking StyleEccentric
Weight72 lb32.7 Kg
Housing ConstructionPiloted Flange Cartridge
UPC Code0883450166683 0883450166874 0883450166935 0883450166997 0883450167055 0883450167406 0883450167598 0883450167659 0883450167710 0883450167772 0883450258869 0883450259408
Dimension BC11.75 in298.5 mm
Dimension C6.300 in160.000 mm
Dimension E5.88 in149.4 mm
Dimension B Fix3.01 in76.5 mm
Dimension B Exp3.09 in78.5 mm
Dimension F13.50 in342.9 mm
Dimension D10.00 in254.0 mm
Dimension H1.00 in25.4 mm
Dimension J (Bolt Size)0.75 in20 mm
Dimension M3.7 in94 mm
Dimension R0.17 in4.3 mm
Dimension S5.53 in140.5 mm
Dimension G10.250 in260.4 mm
Dimension K1.83 in46.5 mm
Dimension L Exp5.78 in146.8 mm
Dimension L Fix5.70 in144.8 mm
Dimension N2.69 in68.3 mm
C0 - Static Load147000 lb653 kN
C - Dynamic Load (Basic)125000 lb555 kN
e - Geometry Factor0.25
Y1 - Geometry Factor2.73
Y2 - Geometry Factor4.06
Oil Lubrication - M/N Seal900 rpm
Oil Lubrication - T Seal1700 rpm
Oil Lubrication - B/C/O Seal600 rpm
Grease Lubrication - M/N Seal900 rpm
Grease Lubrication - T Seal1200 rpm
Grease Lubrication - B/C/O Seal600 rpm
Float0.083 in2.108 mm
Shaft Tolerance0.0050 in0.127 mm
Eng Internal Radial Clearance - Min0.0030
Eng Internal Radial Clearance - Max0.0047
Pre Install Clearance Min0.0030 in0.075 mm
Pre Install Clearance Max0.0047 in0.120 mm
