Tapered Adapter Solid-Block Housed Units

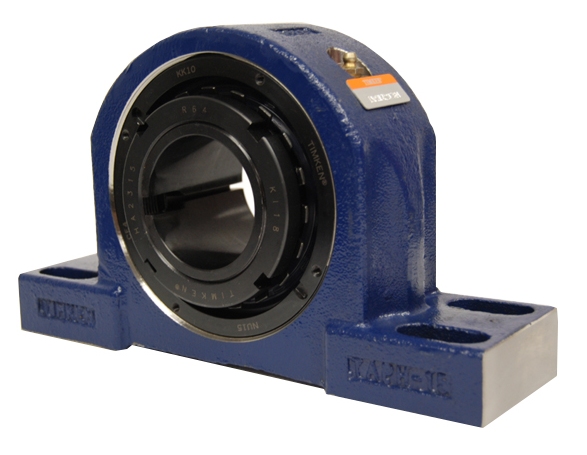

TAPG15K208S Bearing | Solid Block/Spherical Roller Bearing Housed Units-Tapered Adapter Four-Bolt Pillow Block

TAPG15K208S interchange timken TAPG15K208S
TAPG15K208S cross reference timken TAPG15K208S
TAPG15K208S Equivalent bearing interchange guide：
Price：	enquiry
Model Number：	TAPG15K208S
d:	4.67
D:	3.14
B:	29 lb13.20 Kg
r(min):	0883450127172 0883450127189 0883450127202 0883450127219 0883450127226 0883450127233 0883450127240 08
r1(min):	0.0035 in0.089 mm
Width:	2-1/2 in
Size:	Imperial
Weight：	0.0037 in0.094 mm
Bearing Number：	0.0047 in0.119 mm
Housing Construction：	0.0017 in0.043 mm
UPC Code：	2900 rpm
Shaft Size Type：	1600 rpm

Engineering Group	Mounted Bearing
Bearing Number	22215
Shaft Size	2-1/2 in
Shaft Size Type	Imperial
Full Timken Part Number	TAPG15K208SB TAPG15K208SC TAPG15K208SEB TAPG15K208SEC TAPG15K208SEM TAPG15K208SEN TAPG15K208SEO TAPG15K208SET TAPG15K208SM TAPG15K208SN TAPG15K208SO TAPG15K208ST
Locking Style	Tapered Adapter
Weight	29 lb13.20 Kg
Housing Construction	Four-Bolt Pillow Block
UPC Code	0883450127172 0883450127189 0883450127202 0883450127219 0883450127226 0883450127233 0883450127240 0883450127257 0883450198110 0883450198318 0883450275613 0883450275811
Dimension A	3.15 in80.0 mm
Dimension B	6.38 in162.1 mm
Dimension C	3.86 in98 mm
Dimension D Max	9.69 in246.1 mm
Dimension D Min	7.94 in201.7 mm
Dimension E	1.56 in39.6 mm
Dimension F	10.88 in276.4 mm
Dimension G	3.130 in79.50 mm
Dimension H	1.19 in30.2 mm
Dimension J (Bolt Size)	0.625 in16 mm
Dimension L	3.3 in83.8 mm
Dimension M	1.73 in43.9 mm
Dimension S	2.87 in72.9 mm
C0 - Static Load	54100 lb240 kN
C - Dynamic Load (Basic)	49900 lb222 kN
e - Geometry Factor	0.22
Y1 - Geometry Factor	3.14
Y2 - Geometry Factor	4.67
Oil Lubrication - M/N Seal	1600 rpm
Oil Lubrication - T Seal	2900 rpm
Oil Lubrication - B/C/O Seal	1300 rpm
Grease Lubrication - M/N Seal	1600 rpm
Grease Lubrication - T Seal	2400 rpm
Grease Lubrication - B/C/O Seal	1300 rpm
Float	0.083 in2.108 mm
Shaft Tolerance	0.0035 in0.089 mm
Pre Install Clearance Min	0.0037 in0.094 mm
Pre Install Clearance Max	0.0047 in0.119 mm
Int Radial Clearance Reduction Min	0.0015 in0.038 mm
Int Radial Clearance Reduction Max	0.0020 in0.051 mm
Adapter Sleeve Axial Movement Min	0.022 in0.559 mm
Adapter Sleeve Axial Movement Max	0.03 in0.762 mm
Post Install Int Radial Clearance Min	0.0017 in0.043 mm
