Single Concentric Solid-Block Housed Units
- Solid Block/Spherical Roller Bearing Housed Units-Single Concentric Piloted Flange Cartridge
- QAC20A100S

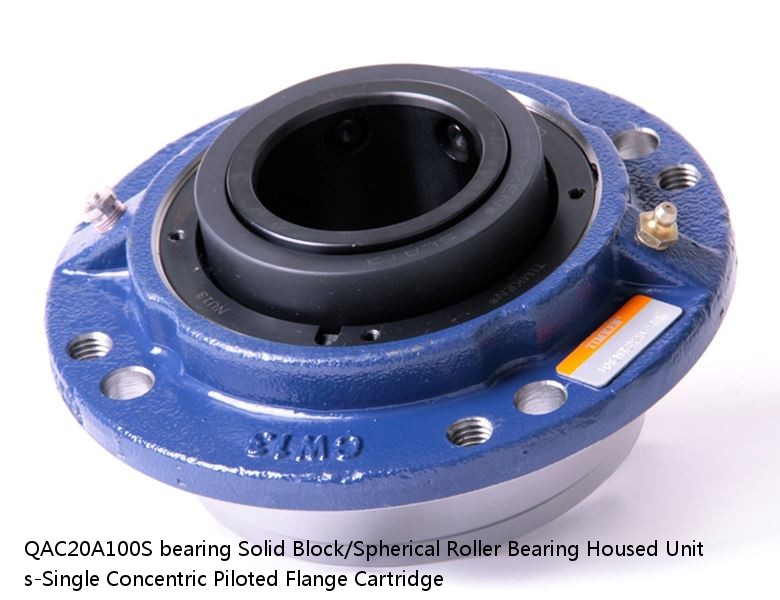

QAC20A100S Bearing | Solid Block/Spherical Roller Bearing Housed Units-Single Concentric Piloted Flange Cartridge
QAC20A100S PDF download| QAC20A100S interchange timken QAC20A100S | |
| QAC20A100S cross reference timken QAC20A100S | |
| QAC20A100S Equivalent bearing interchange guide： | |
| Price： | enquiry |
| Model Number： | QAC20A100S |
| d: | 4.24 |
| D: | 2.85 |
| B: | 43 lb19.50 Kg |
| r(min): | 0883450304900 0883450304917 0883450304924 0883450304931 0883450304948 0883450304955 0883450304962 08 |
| r1(min): | 0.0030 in0.076 mm |
| Width: | 100 mm |
| Size: | Metric |
| Weight： | 0.0030 in0.075 mm |
| Bearing Number： | 0.0047 in0.120 mm |
| Housing Construction： | 2000 rpm |
| UPC Code： | 1200 rpm |
| Shaft Size Type： | 900 rpm |
| Engineering Group | Mounted Bearing |
| Bearing Number | 22220 |
| Shaft Size | 100 mm |
| Shaft Size Type | Metric |
| Full Timken Part Number | QAC20A100SB QAC20A100SC QAC20A100SEB QAC20A100SEC QAC20A100SEM QAC20A100SEN QAC20A100SEO QAC20A100SET QAC20A100SM QAC20A100SN QAC20A100SO QAC20A100ST |
| Locking Style | Single Concentric |
| Weight | 43 lb19.50 Kg |
| Housing Construction | Piloted Flange Cartridge |
| UPC Code | 0883450304900 0883450304917 0883450304924 0883450304931 0883450304948 0883450304955 0883450304962 0883450304979 0883450304986 0883450304993 0883450305006 0883450305013 |
| Dimension BC | 9.38 in238.3 mm |
| Dimension C | 6.0000 in152.4 mm |
| Dimension E | 6.63 in168.4 mm |
| Dimension B Fix | 2.84 in72.1 mm |
| Dimension B Exp | 2.92 in74.2 mm |
| Dimension F | 10.88 in276.4 mm |
| Dimension D | 8.13 in206.5 mm |
| Dimension H | 1.00 in25.4 mm |
| Dimension J (Bolt Size) | 0.75 in20 mm |
| Dimension M | 2.97 in75.4 mm |
| Dimension G | 8.125 in206.4 mm |
| Dimension KA | 1.63 in41.4 mm |
| Dimension L Exp | 5.04 in128 mm |
| Dimension L Fix | 4.96 in126 mm |
| Dimension N | 2.13 in54.1 mm |
| Dimension RA | 0.37 in9.4 mm |
| Dimension SA | 4.59 in116.6 mm |
| C0 - Static Load | 113000 lb502 kN |
| C - Dynamic Load (Basic) | 97700 lb435 kN |
| e - Geometry Factor | 0.24 |
| Y1 - Geometry Factor | 2.85 |
| Y2 - Geometry Factor | 4.24 |
| Oil Lubrication - M/N Seal | 1200 rpm |
| Oil Lubrication - T Seal | 2000 rpm |
| Oil Lubrication - B/C/O Seal | 900 rpm |
| Grease Lubrication - M/N Seal | 1200 rpm |
| Grease Lubrication - T Seal | 1600 rpm |
| Grease Lubrication - B/C/O Seal | 900 rpm |
| Float | 0.083 in2.108 mm |
| Shaft Tolerance | 0.0030 in0.076 mm |
| Eng Internal Radial Clearance - Min | 0.0030 |
| Eng Internal Radial Clearance - Max | 0.0047 |
| Pre Install Clearance Min | 0.0030 in0.075 mm |
| Pre Install Clearance Max | 0.0047 in0.120 mm |
| No. | Weight | Bearing Number | Housing Construction | UPC Code | Shaft Size Type | Full Timken Part Number |
|---|---|---|---|---|---|---|
| 403103 | 403103 | 315.000 | 30.000 | 50.000 | 310.000 | 304.000 |
| JM515649/JM515610 | 35.000 mm1.3780 in | M515600 | 2.54 mm0.1 in | 3.050 mm0.12 in | 118 | METRIC |
| 5311S | 55 | 2.0 | 5311S | 2.300 | 3800 | 120 |
| NAT201JE | NAT201JE | A-1/4-28UNF | - | 12 | - | - |
| X33118M/Y33118M | 45 mm1.7717 in | 33118M | 2.03 mm0.08 in | 2.540 mm0.1 in | 180.1 | METRIC |
| NF418 | 90 | 4.0 | 4.0 | 10.300 | 3400 | 2800 |
| 240/500KYMBW910C3 | 2.45 | 3.74 | 2.51 | 390 | 350 | 5.000 mm0.200 in |
| QVVFX22V315S | 3.80 | 2.55 | 55 lb24.90 Kg | 0883450368230 0883450368247 0883450368254 0883450368261 0883450368278 0883450368285 0883450368292 08 | 0.0030 in0.076 mm | 3-15/16 in |
| 7414 FY | 70 | 3.0 | 7414 FY | 4600 | 3500 | 180 |
| NA6912R | 1.00 | NA6912R | 0.758 | 6000 | 4000 | 85 |
