Double V-Lock Solid-Block Housed Units
- Solid Block/Spherical Roller Bearing Housed Units-Double V-Lock Four Bolt Square Flange Block
- QVVF19V090S

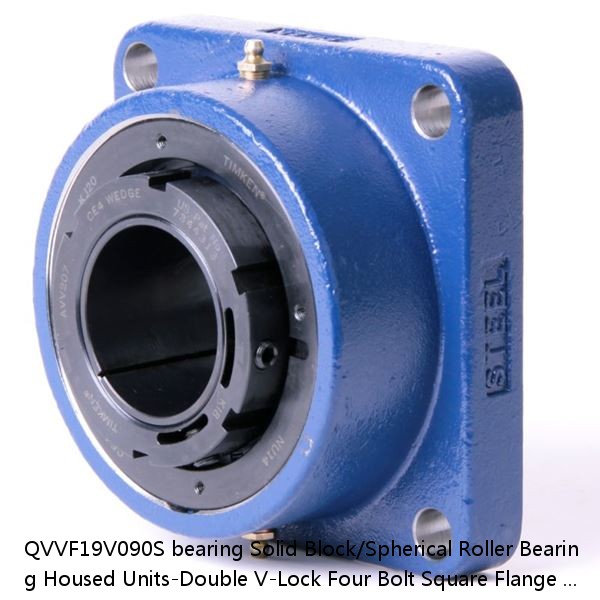

QVVF19V090S Bearing | Solid Block/Spherical Roller Bearing Housed Units-Double V-Lock Four Bolt Square Flange Block
QVVF19V090S PDF download| QVVF19V090S interchange timken QVVF19V090S | |
| QVVF19V090S cross reference timken QVVF19V090S | |
| QVVF19V090S Equivalent bearing interchange guide： | |
| Price： | enquiry |
| Model Number： | QVVF19V090S |
| d: | 4.17 |
| D: | 2.80 |
| B: | 35 lb15.90 Kg |
| r(min): | 0883450065337 0883450178662 0883450178853 0883450179041 0883450179126 0883450179317 0883450179508 08 |
| r1(min): | 0.0030 in0.076 mm |
| Width: | 90 mm |
| Size: | Metric |
| Weight： | 0.0043 in0.110 mm |
| Bearing Number： | 0.0055 in0.140 mm |
| Housing Construction： | 2200 rpm |
| UPC Code： | 1300 rpm |
| Shaft Size Type： | 1000 rpm |
| Engineering Group | Mounted Bearing |
| Bearing Number | 22219 |
| Shaft Size | 90 mm |
| Shaft Size Type | Metric |
| Full Timken Part Number | QVVF19V090SB QVVF19V090SC QVVF19V090SEB QVVF19V090SEC QVVF19V090SEM QVVF19V090SEN QVVF19V090SEO QVVF19V090SET QVVF19V090SM QVVF19V090SN QVVF19V090SO QVVF19V090ST |
| Locking Style | Double V-Lock |
| Weight | 35 lb15.90 Kg |
| Housing Construction | Four-Bolt Square Flange |
| UPC Code | 0883450065337 0883450178662 0883450178853 0883450179041 0883450179126 0883450179317 0883450179508 0883450211017 0883450211390 0883450223430 0883450223812 0883450235938 |
| Dimension BC | 9.91 in251.7 mm |
| Dimension C | 4.9 in124.5 mm |
| Dimension D | 7.630 in193.80 mm |
| Dimension E | 7.000 in177.8 mm |
| Dimension F | 8.63 in219.2 mm |
| Dimension H | 1.31 in33.3 mm |
| Dimension J (Bolt Size) | 0.75 in20 mm |
| Dimension L Exp | 3.95 in100.3 mm |
| Dimension L Fix | 3.87 in98.3 mm |
| Dimension N | 3.310 in84.1 mm |
| Dimension RVV | 0.62 in15.7 mm |
| Dimension SVV | 4.49 in114 mm |
| C - Dynamic Load (Basic) | 86600 lb385 kN |
| C0 - Static Load | 99000 lb441 kN |
| e - Geometry Factor | 0.24 |
| Y1 - Geometry Factor | 2.80 |
| Y2 - Geometry Factor | 4.17 |
| Oil Lubrication - M/N Seal | 1300 rpm |
| Oil Lubrication - T Seal | 2200 rpm |
| Oil Lubrication - B/C/O Seal | 1000 rpm |
| Grease Lubrication - M/N Seal | 1300 rpm |
| Grease Lubrication - T Seal | 1800 rpm |
| Grease Lubrication - B/C/O Seal | 950 rpm |
| Float | 0.083 in2.108 mm |
| Shaft Tolerance | 0.0030 in0.076 mm |
| Eng Internal Radial Clearance - Min | 0.0043 |
| Eng Internal Radial Clearance - Max | 0.0055 |
| Pre Install Clearance Min | 0.0043 in0.110 mm |
| Pre Install Clearance Max | 0.0055 in0.140 mm |
| No. | Weight | Bearing Number | Housing Construction | UPC Code | Shaft Size Type | Full Timken Part Number |
|---|---|---|---|---|---|---|
| LE090051BLK1PCT---+(10.5) | LE09BL | 10.5 | - | - | - | - |
| HML72T | 12.10 Kg | Tr360x5 | 13 mm | 28 mm | 394 mm | 420 mm |
| OH32/800H | 629 Kg | 13 mm | G1/8 | MS31/800 | HM31/800 | 618.00 mm |
| CR 32VBR | 162.0 | 22.225 | - | 4.762 | 4.762 | 37.306 |
| QVPH26V407S | 3.90 | 2.62 | 136 lb61.70 Kg | 0883450053983 0883450053990 0883450206754 0883450206907 0883450219181 0883450219334 0883450231602 08 | 0.0050 in0.127 mm | 4-7/16 in |
| QVVPG22V400S | 4.06 | 2.73 | 87 lb39.5 Kg | 0883450076029 0883450076036 0883450208901 0883450209052 0883450221337 0883450221481 0883450233767 08 | 0.0030 in0.076 mm | 4 in |
| UCT210/30 | 5.7 lb2.6 Kg | 087796077881 | 149.00 mm5.866 in | 117.00 mm4.606 in | 5238 lbf23300 N | 37.00 mm1.457 in |
| 2MM205WI | 1 mm0.039 in | 1 mm0.039 in | 59600 rpm | 29800 rpm | 7.937500 mm5/16 in | METRIC |
| HJ412 | 60 | HJ412 | 0.34 | 2.1 | - | - |
| HK 3016 | HK 3016 | 9000 | 8000 | 3.400 | 29.000 | 16.500 |
