Tapered Adapter Solid-Block Housed Units
- Solid Block/Spherical Roller Bearing Housed Units-Tapered Adapter Piloted Flange Cartridge
- DVC13K060S

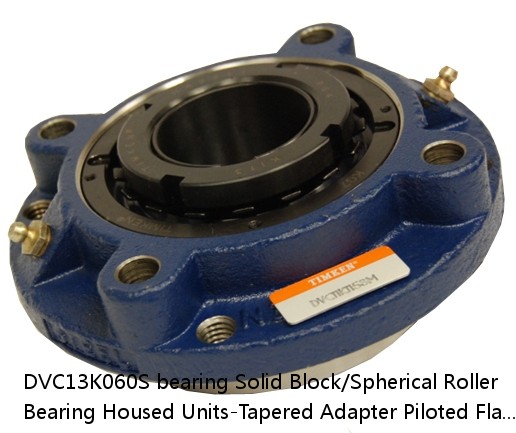

DVC13K060S Bearing | Solid Block/Spherical Roller Bearing Housed Units-Tapered Adapter Piloted Flange Cartridge
DVC13K060S PDF download| DVC13K060S interchange timken DVC13K060S | |
| DVC13K060S cross reference timken DVC13K060S | |
| DVC13K060S Equivalent bearing interchange guide： | |
| Price： | enquiry |
| Model Number： | DVC13K060S |
| d: | 4.15 |
| D: | 2.79 |
| B: | 16 lb7.30 Kg |
| r(min): | 0883450003827 0883450003834 0883450003858 0883450003865 0883450003872 0883450003889 0883450003896 08 |
| r1(min): | 0.0030 in0.076 mm |
| Width: | 60 mm |
| Size: | Metric |
| Weight： | 0.0030 in0.075 mm |
| Bearing Number： | 0.0037 in0.094 mm |
| Housing Construction： | 3200 rpm |
| UPC Code： | 1800 rpm |
| Shaft Size Type： | 1500 rpm |
| Engineering Group | Mounted Bearing |
| Bearing Number | 22213 |
| Shaft Size | 60 mm |
| Shaft Size Type | Metric |
| Full Timken Part Number | DVC13K060SB DVC13K060SC DVC13K060SEB DVC13K060SEC DVC13K060SEM DVC13K060SEN DVC13K060SEO DVC13K060SET DVC13K060SM DVC13K060SN DVC13K060SO DVC13K060ST |
| Locking Style | Tapered Adapter |
| Weight | 16 lb7.30 Kg |
| Housing Construction | Piloted Flange Cartridge |
| UPC Code | 0883450003827 0883450003834 0883450003858 0883450003865 0883450003872 0883450003889 0883450003896 0883450003902 0883450196888 0883450197083 0883450274395 0883450274593 |
| Dimension BC | 6.00 in152.4 mm |
| Dimension C | 3.350 in85.10 mm |
| Dimension E | 4.24 in107.7 mm |
| Dimension F | 7.13 in181.1 mm |
| Dimension H | 1.47 in37.3 mm |
| Dimension I | 3.34 in84.8 mm |
| Dimension J (Bolt Size) | 0.5 in12 mm |
| Dimension L | 2.58 in65.5 mm |
| Dimension M | 1.56 in39.6 mm |
| Dimension R | 0.11 in2.8 mm |
| Dimension S | 2.56 in65 mm |
| Dimension G | 5.000 in127.0 mm |
| Dimension N | 1.00 in25.4 mm |
| C0 - Static Load | 48600 lb216 kN |
| C - Dynamic Load (Basic) | 46400 lb206 kN |
| e - Geometry Factor | 0.24 |
| Y1 - Geometry Factor | 2.79 |
| Y2 - Geometry Factor | 4.15 |
| Oil Lubrication - M/N Seal | 1800 rpm |
| Oil Lubrication - T Seal | 3200 rpm |
| Oil Lubrication - B/C/O Seal | 1500 rpm |
| Grease Lubrication - M/N Seal | 1800 rpm |
| Grease Lubrication - T Seal | 2800 rpm |
| Grease Lubrication - B/C/O Seal | 1500 rpm |
| Float | 0.083 in2.108 mm |
| Shaft Tolerance | 0.0030 in0.076 mm |
| Pre Install Clearance Min | 0.0030 in0.075 mm |
| Pre Install Clearance Max | 0.0037 in0.094 mm |
| Int Radial Clearance Reduction Min | 0.0012 in0.030 mm |
| Int Radial Clearance Reduction Max | 0.0015 in0.038 mm |
| Adapter Sleeve Axial Movement Min | 0.018 in0.457 mm |
| Adapter Sleeve Axial Movement Max | 0.022 in0.559 mm |
| Post Install Int Radial Clearance Min | 0.0015 in0.038 mm |
| No. | Weight | Bearing Number | Housing Construction | UPC Code | Shaft Size Type | Full Timken Part Number |
|---|---|---|---|---|---|---|
| KT 222817 | 22 | KT 222817 | 18.4 | 22 | 28 | 17500 |
| 22317RZ | 3.0 | 22317RZ | 3600 | 2800 | 180 | 47.8 |
| 7303BDB FY | 17 | 1.0 | 7303BDB FY | 15000 | 11000 | 47 |
| BNS 1616+150L | BNS 1616 | - | - | - | - | - |
| FSNL 516-613 + 2313 K + HA 2313 | FSNL 516-613 | 95 | 177 | FSNL 516-613 + 2313 K + HA 2313 | 120 | 2313 K |
| 7212CDT | 60 | 1.00 | 1.5 | 7212C | 0.76 | 10 000 |
| 1525250 | 387.3500 | 425.450 | 1525250 | R | HDS1 | 19.050 |
| F681 | 1.0 | 0.07 | 130000 | 3 | 0.0007 | 0.120 |
| SL02-4988 | 600 | SL02-4988 | 440 | 160 | 137.00 | 305000 |
| CF 6VUUR | 2.7 | 6 | 0.3 | - | 4 | 11 |
