Tapered Adapter Solid-Block Housed Units
  • Solid Block/Spherical Roller Bearing Housed Units-Tapered Adapter Piloted Flange Cartridge
  • DVC13K204S

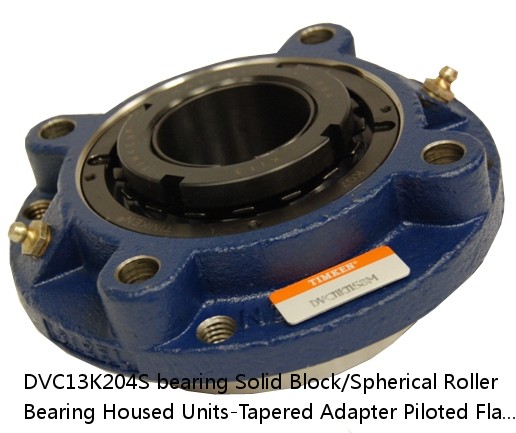

DVC13K204S Bearing | Solid Block/Spherical Roller Bearing Housed Units-Tapered Adapter Piloted Flange Cartridge

DVC13K204S interchange timken DVC13K204S
DVC13K204S cross reference timken DVC13K204S
DVC13K204S Equivalent bearing interchange guide:
Price: enquiry
Model Number: DVC13K204S
d: 4.15
D: 2.79
B: 16 lb7.30 Kg
r(min): 0883450004022 0883450004039 0883450004053 0883450004060 0883450004077 0883450004084 0883450004091 08
r1(min): 0.0030 in0.076 mm
Width: 2-1/4 in
Size: Imperial
Weight: 0.0030 in0.075 mm
Bearing Number: 0.0037 in0.094 mm
Housing Construction: 3200 rpm
UPC Code: 1800 rpm
Shaft Size Type: 1500 rpm
Engineering GroupMounted Bearing
Bearing Number22213
Shaft Size  2-1/4 in
Shaft Size TypeImperial
Full Timken Part NumberDVC13K204SB DVC13K204SC DVC13K204SEB DVC13K204SEC DVC13K204SEM DVC13K204SEN DVC13K204SEO DVC13K204SET DVC13K204SM DVC13K204SN DVC13K204SO DVC13K204ST
Locking StyleTapered Adapter
Weight16 lb7.30 Kg
Housing ConstructionPiloted Flange Cartridge
UPC Code0883450004022 0883450004039 0883450004053 0883450004060 0883450004077 0883450004084 0883450004091 0883450004107 0883450196871 0883450197076 0883450274388 0883450274586
Dimension BC6.00 in152.4 mm
Dimension C3.350 in85.10 mm
Dimension E4.24 in107.7 mm
Dimension F7.13 in181.1 mm
Dimension H1.47 in37.3 mm
Dimension I3.34 in84.8 mm
Dimension J (Bolt Size)0.5 in12 mm
Dimension L2.58 in65.5 mm
Dimension M1.56 in39.6 mm
Dimension R0.11 in2.8 mm
Dimension S2.56 in65 mm
Dimension G5.000 in127.0 mm
Dimension N1.00 in25.4 mm
C0 - Static Load48600 lb216 kN
C - Dynamic Load (Basic)46400 lb206 kN
e - Geometry Factor0.24
Y1 - Geometry Factor2.79
Y2 - Geometry Factor4.15
Oil Lubrication - M/N Seal1800 rpm
Oil Lubrication - T Seal3200 rpm
Oil Lubrication - B/C/O Seal1500 rpm
Grease Lubrication - M/N Seal1800 rpm
Grease Lubrication - T Seal2800 rpm
Grease Lubrication - B/C/O Seal1500 rpm
Float0.083 in2.108 mm
Shaft Tolerance0.0030 in0.076 mm
Pre Install Clearance Min0.0030 in0.075 mm
Pre Install Clearance Max0.0037 in0.094 mm
Int Radial Clearance Reduction Min0.0012 in0.030 mm
Int Radial Clearance Reduction Max0.0015 in0.038 mm
Adapter Sleeve Axial Movement Min0.018 in0.457 mm
Adapter Sleeve Axial Movement Max0.022 in0.559 mm
Post Install Int Radial Clearance Min0.0015 in0.038 mm
