Tapered Adapter Solid-Block Housed Units
- Solid Block/Spherical Roller Bearing Housed Units-Tapered Adapter Piloted Flange Cartridge
- DVC17K075S

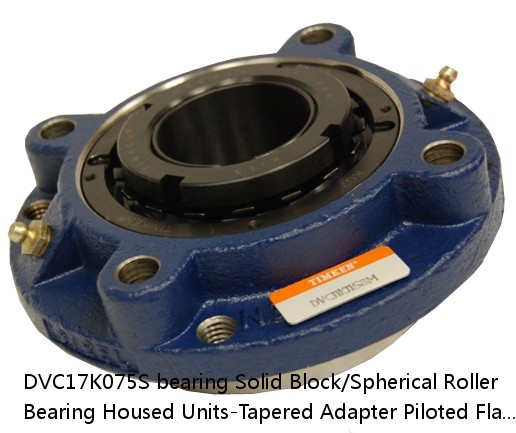

DVC17K075S Bearing | Solid Block/Spherical Roller Bearing Housed Units-Tapered Adapter Piloted Flange Cartridge
DVC17K075S PDF download| DVC17K075S interchange timken DVC17K075S | |
| DVC17K075S cross reference timken DVC17K075S | |
| DVC17K075S Equivalent bearing interchange guide： | |
| Price： | enquiry |
| Model Number： | DVC17K075S |
| d: | 4.57 |
| D: | 3.07 |
| B: | 25 lb11.3 Kg |
| r(min): | 0883450004428 0883450004435 0883450004459 0883450004466 0883450004473 0883450004480 0883450004497 08 |
| r1(min): | 0.0040 in0.102 mm |
| Width: | 75 mm |
| Size: | Metric |
| Weight： | 0.0043 in0.109 mm |
| Bearing Number： | 0.0055 in0.140 mm |
| Housing Construction： | 2400 rpm |
| UPC Code： | 1400 rpm |
| Shaft Size Type： | 1100 rpm |
| Engineering Group | Mounted Bearing |
| Bearing Number | 22217 |
| Shaft Size | 75 mm |
| Shaft Size Type | Metric |
| Full Timken Part Number | DVC17K075SB DVC17K075SC DVC17K075SEB DVC17K075SEC DVC17K075SEM DVC17K075SEN DVC17K075SEO DVC17K075SET DVC17K075SM DVC17K075SN DVC17K075SO DVC17K075ST |
| Locking Style | Tapered Adapter |
| Weight | 25 lb11.3 Kg |
| Housing Construction | Piloted Flange Cartridge |
| UPC Code | 0883450004428 0883450004435 0883450004459 0883450004466 0883450004473 0883450004480 0883450004497 0883450004503 0883450196949 0883450197144 0883450274456 0883450274654 |
| Dimension BC | 7.50 in190.5 mm |
| Dimension C | 4.330 in110.000 mm |
| Dimension E | 5.30 in134.6 mm |
| Dimension F | 8.75 in222.3 mm |
| Dimension H | 1.28 in32.5 mm |
| Dimension I | 3.55 in90.2 mm |
| Dimension J (Bolt Size) | 0.625 in16 mm |
| Dimension L | 3.14 in79.8 mm |
| Dimension M | 1.96 in49.8 mm |
| Dimension R | 0.09 in2.3 mm |
| Dimension S | 3.23 in82 mm |
| Dimension G | 6.375 in161.9 mm |
| Dimension N | 1.38 in35.1 mm |
| C0 - Static Load | 71900 lb320 kN |
| C - Dynamic Load (Basic) | 66900 lb297 kN |
| e - Geometry Factor | 0.22 |
| Y1 - Geometry Factor | 3.07 |
| Y2 - Geometry Factor | 4.57 |
| Oil Lubrication - M/N Seal | 1400 rpm |
| Oil Lubrication - T Seal | 2400 rpm |
| Oil Lubrication - B/C/O Seal | 1100 rpm |
| Grease Lubrication - M/N Seal | 1400 rpm |
| Grease Lubrication - T Seal | 2000 rpm |
| Grease Lubrication - B/C/O Seal | 1100 rpm |
| Float | 0.083 in2.108 mm |
| Shaft Tolerance | 0.0040 in0.102 mm |
| Pre Install Clearance Min | 0.0043 in0.109 mm |
| Pre Install Clearance Max | 0.0055 in0.140 mm |
| Int Radial Clearance Reduction Min | 0.0018 in0.046 mm |
| Int Radial Clearance Reduction Max | 0.0025 in0.064 mm |
| Adapter Sleeve Axial Movement Min | 0.027 in0.686 mm |
| Adapter Sleeve Axial Movement Max | 0.038 in0.965 mm |
| Post Install Int Radial Clearance Min | 0.0020 in0.051 mm |
