Tapered Adapter Solid-Block Housed Units
- Solid Block/Spherical Roller Bearing Housed Units-Tapered Adapter Piloted Flange Cartridge
- DVC22K100S

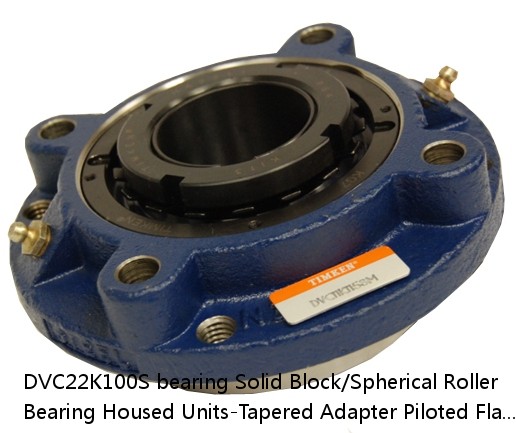

DVC22K100S Bearing | Solid Block/Spherical Roller Bearing Housed Units-Tapered Adapter Piloted Flange Cartridge
DVC22K100S PDF download| DVC22K100S interchange timken DVC22K100S | |
| DVC22K100S cross reference timken DVC22K100S | |
| DVC22K100S Equivalent bearing interchange guide： | |
| Price： | enquiry |
| Model Number： | DVC22K100S |
| d: | 4.06 |
| D: | 2.73 |
| B: | 58.0 lb26.3 Kg |
| r(min): | 0883450005029 0883450005036 0883450005050 0883450005067 0883450005074 0883450005081 0883450005098 08 |
| r1(min): | 0.0040 in0.102 mm |
| Width: | 100 mm |
| Size: | Metric |
| Weight： | 0.0053 in0.135 mm |
| Bearing Number： | 0.0067 in0.170 mm |
| Housing Construction： | 1700 rpm |
| UPC Code： | 900 rpm |
| Shaft Size Type： | 600 rpm |
| Engineering Group | Mounted Bearing |
| Bearing Number | 22222 |
| Shaft Size | 100 mm |
| Shaft Size Type | Metric |
| Full Timken Part Number | DVC22K100SB DVC22K100SC DVC22K100SEB DVC22K100SEC DVC22K100SEM DVC22K100SEN DVC22K100SEO DVC22K100SET DVC22K100SM DVC22K100SN DVC22K100SO DVC22K100ST |
| Locking Style | Tapered Adapter |
| Weight | 58.0 lb26.3 Kg |
| Housing Construction | Piloted Flange Cartridge |
| UPC Code | 0883450005029 0883450005036 0883450005050 0883450005067 0883450005074 0883450005081 0883450005098 0883450005104 0883450197007 0883450197205 0883450274517 0883450274715 |
| Dimension BC | 9.38 in238.3 mm |
| Dimension C | 5.710 in145.000 mm |
| Dimension E | 6.63 in168.4 mm |
| Dimension F | 10.88 in276.4 mm |
| Dimension H | 1.89 in48.0 mm |
| Dimension I | 4.60 in116.8 mm |
| Dimension J (Bolt Size) | 0.75 in20 mm |
| Dimension L | 3.94 in100.1 mm |
| Dimension M | 2.48 in63 mm |
| Dimension R | 0.18 in4.6 mm |
| Dimension S | 4.13 in104.9 mm |
| Dimension G | 8.125 in206.4 mm |
| Dimension N | 1.50 in38.1 mm |
| C0 - Static Load | 147000 lb653 kN |
| C - Dynamic Load (Basic) | 125000 lb555 kN |
| e - Geometry Factor | 0.25 |
| Y1 - Geometry Factor | 2.73 |
| Y2 - Geometry Factor | 4.06 |
| Oil Lubrication - M/N Seal | 900 rpm |
| Oil Lubrication - T Seal | 1700 rpm |
| Oil Lubrication - B/C/O Seal | 600 rpm |
| Grease Lubrication - M/N Seal | 900 rpm |
| Grease Lubrication - T Seal | 1200 rpm |
| Grease Lubrication - B/C/O Seal | 600 rpm |
| Float | 0.083 in2.108 mm |
| Shaft Tolerance | 0.0040 in0.102 mm |
| Pre Install Clearance Min | 0.0053 in0.135 mm |
| Pre Install Clearance Max | 0.0067 in0.170 mm |
| Int Radial Clearance Reduction Min | 0.0020 in0.051 mm |
| Int Radial Clearance Reduction Max | 0.0028 in0.071 mm |
| Adapter Sleeve Axial Movement Min | 0.03 in0.762 mm |
| Adapter Sleeve Axial Movement Max | 0.042 in1.067 mm |
