Tapered Adapter Solid-Block Housed Units
- Solid Block/Spherical Roller Bearing Housed Units-Tapered Adapter Piloted Flange Cartridge
- DVC22K400S

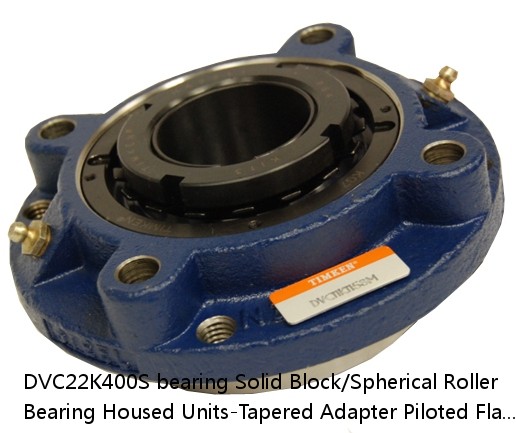

DVC22K400S Bearing | Solid Block/Spherical Roller Bearing Housed Units-Tapered Adapter Piloted Flange Cartridge
DVC22K400S PDF download| DVC22K400S interchange timken DVC22K400S | |
| DVC22K400S cross reference timken DVC22K400S | |
| DVC22K400S Equivalent bearing interchange guide： | |
| Price： | enquiry |
| Model Number： | DVC22K400S |
| d: | 4.06 |
| D: | 2.73 |
| B: | 58.0 lb26.3 Kg |
| r(min): | 0883450005227 0883450005234 0883450005258 0883450005265 0883450005272 0883450005289 0883450005296 08 |
| r1(min): | 0.0040 in0.102 mm |
| Width: | 4 in |
| Size: | Imperial |
| Weight： | 0.0053 in0.135 mm |
| Bearing Number： | 0.0067 in0.170 mm |
| Housing Construction： | 1700 rpm |
| UPC Code： | 900 rpm |
| Shaft Size Type： | 600 rpm |
| Engineering Group | Mounted Bearing |
| Bearing Number | 22222 |
| Shaft Size | 4 in |
| Shaft Size Type | Imperial |
| Full Timken Part Number | DVC22K400SB DVC22K400SC DVC22K400SEB DVC22K400SEC DVC22K400SEM DVC22K400SEN DVC22K400SEO DVC22K400SET DVC22K400SM DVC22K400SN DVC22K400SO DVC22K400ST |
| Locking Style | Tapered Adapter |
| Weight | 58.0 lb26.3 Kg |
| Housing Construction | Piloted Flange Cartridge |
| UPC Code | 0883450005227 0883450005234 0883450005258 0883450005265 0883450005272 0883450005289 0883450005296 0883450005302 0883450196994 0883450197199 0883450274500 0883450274708 |
| Dimension BC | 9.38 in238.3 mm |
| Dimension C | 5.710 in145.000 mm |
| Dimension E | 6.63 in168.4 mm |
| Dimension F | 10.88 in276.4 mm |
| Dimension H | 1.89 in48.0 mm |
| Dimension I | 4.60 in116.8 mm |
| Dimension J (Bolt Size) | 0.75 in20 mm |
| Dimension L | 3.94 in100.1 mm |
| Dimension M | 2.48 in63 mm |
| Dimension R | 0.18 in4.6 mm |
| Dimension S | 4.13 in104.9 mm |
| Dimension G | 8.125 in206.4 mm |
| Dimension N | 1.50 in38.1 mm |
| C0 - Static Load | 147000 lb653 kN |
| C - Dynamic Load (Basic) | 125000 lb555 kN |
| e - Geometry Factor | 0.25 |
| Y1 - Geometry Factor | 2.73 |
| Y2 - Geometry Factor | 4.06 |
| Oil Lubrication - M/N Seal | 900 rpm |
| Oil Lubrication - T Seal | 1700 rpm |
| Oil Lubrication - B/C/O Seal | 600 rpm |
| Grease Lubrication - M/N Seal | 900 rpm |
| Grease Lubrication - T Seal | 1200 rpm |
| Grease Lubrication - B/C/O Seal | 600 rpm |
| Float | 0.083 in2.108 mm |
| Shaft Tolerance | 0.0040 in0.102 mm |
| Pre Install Clearance Min | 0.0053 in0.135 mm |
| Pre Install Clearance Max | 0.0067 in0.170 mm |
| Int Radial Clearance Reduction Min | 0.0020 in0.051 mm |
| Int Radial Clearance Reduction Max | 0.0028 in0.071 mm |
| Adapter Sleeve Axial Movement Min | 0.03 in0.762 mm |
| Adapter Sleeve Axial Movement Max | 0.042 in1.067 mm |
| No. | Weight | Bearing Number | Housing Construction | UPC Code | Shaft Size Type | Full Timken Part Number |
|---|---|---|---|---|---|---|
| TTU/85/18 | LOR53 | 18 in | 5 in | SR-17-14 | 9.250 in | 1.000 in |
| 468/453X | 30.162 | 52.388 | 1.60 | 468/453X | 4900 | 3700 |
| NA 4952 | 260 | NA 4952 | 31100.0 | 290 | 360 | 847000 |
| 51306 V/HR11T1 | 360 | 0.860 | 1.070 | 51306 V/HR11T1 | 30.000 | 60.000 |
| 7028 FY | 140 | 2.0 | 7028 FY | 4100 | 3300 | 210 |
| AOH24152 | 15.40 Kg | Tr280x4 | 1:30 | 15 mm | G1/4 | 202.00 mm |
| E/P2B/TRB/1 3/16/ECO/ECO | 2.14 | 1.77 | 0.7 | 0.87 | 4.0 lb | 0883450508759 - Assembly is not orderable, contact Customer Service. |
| ACH550-UH-114A-2 | 40 | 1572-1 | 114 | R4 | - | - |
| FSAF 23024 KAT X 4 | 387.350 | FSAF 024 KA | 114.3000 | 217.48750 | FSAF 23024 KAT X 4 | 101.6000 |
| SY 1. TR | 4300 | 7.8 | 14 | SY 505 M | SY 1. TR | YAR 205-100-2RF |
