Tapered Adapter Solid-Block Housed Units
  • Solid Block/Spherical Roller Bearing Housed Units-Tapered Adapter Piloted Flange Cartridge
  • DVC26K115S

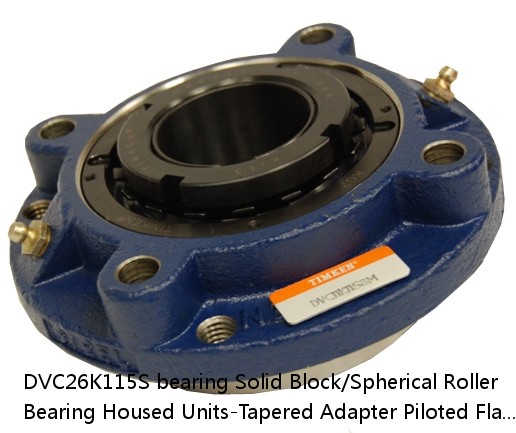

DVC26K115S Bearing | Solid Block/Spherical Roller Bearing Housed Units-Tapered Adapter Piloted Flange Cartridge

DVC26K115S interchange timken DVC26K115S
DVC26K115S cross reference timken DVC26K115S
DVC26K115S Equivalent bearing interchange guide:
Price: enquiry
Model Number: DVC26K115S
d: 3.90
D: 2.62
B: 76 lb34.5 Kg
r(min): 0883450308151 0883450308168 0883450308175 0883450308182 0883450308199 0883450308205 0883450308212 08
r1(min): 0.0040 in0.102 mm
Width: 115 mm
Size: Metric
Weight: 0.0063 in0.160 mm
Bearing Number: 0.0079 in0.201 mm
Housing Construction: 1500 rpm
UPC Code: 700 rpm
Shaft Size Type: 400 rpm
Engineering GroupMounted Bearing
Bearing Number22226
Shaft Size  115 mm
Shaft Size TypeMetric
Full Timken Part NumberDVC26K115SB DVC26K115SC DVC26K115SEB DVC26K115SEC DVC26K115SEM DVC26K115SEN DVC26K115SEO DVC26K115SET DVC26K115SM DVC26K115SN DVC26K115SO DVC26K115ST
Locking StyleTapered Adapter
Weight76 lb34.5 Kg
Housing ConstructionPiloted Flange Cartridge
UPC Code0883450308151 0883450308168 0883450308175 0883450308182 0883450308199 0883450308205 0883450308212 0883450308229 0883450308236 0883450308243 0883450308250 0883450308267
Dimension BC11.75 in298.5 mm
Dimension C6.5000 in165.10 mm
Dimension E5.88 in149.4 mm
Dimension F13.50 in342.9 mm
Dimension H1.85 in47.0 mm
Dimension I5.43 in137.9 mm
Dimension J (Bolt Size)0.75 in20 mm
Dimension L4.6 in116.8 mm
Dimension M2.83 in71.9 mm
Dimension R0.16 in4.1 mm
Dimension S4.760 in120.90 mm
Dimension G10.250 in260.4 mm
Dimension N1.90 in48.3 mm
C0 - Static Load212000 lb945 kN
C - Dynamic Load (Basic)170000 lb757 kN
e - Geometry Factor0.26
Y1 - Geometry Factor2.62
Y2 - Geometry Factor3.90
Oil Lubrication - M/N Seal700 rpm
Oil Lubrication - T Seal1500 rpm
Oil Lubrication - B/C/O Seal400 rpm
Grease Lubrication - M/N Seal700 rpm
Grease Lubrication - T Seal1000 rpm
Grease Lubrication - B/C/O Seal400 rpm
Float0.083 in2.108 mm
Shaft Tolerance0.0040 in0.102 mm
Pre Install Clearance Min0.0063 in0.160 mm
Pre Install Clearance Max0.0079 in0.201 mm
Int Radial Clearance Reduction Min0.0025 in0.064 mm
Int Radial Clearance Reduction Max0.0035 in0.089 mm
Adapter Sleeve Axial Movement Min0.035 in0.889 mm
Adapter Sleeve Axial Movement Max0.050 in1.270 mm
