Single Concentric Solid-Block Housed Units
- Solid Block/Spherical Roller Bearing Housed Units-Single Concentric Hanger Block
- QAMH15A300S

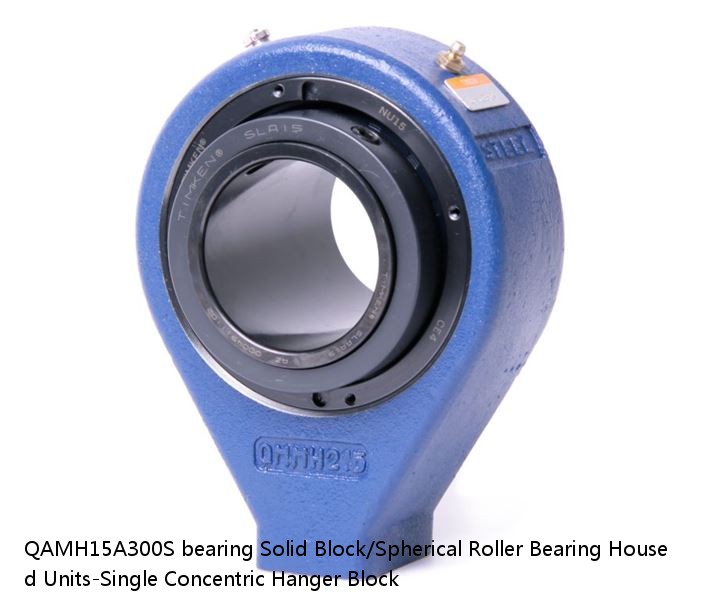

QAMH15A300S Bearing | Solid Block/Spherical Roller Bearing Housed Units-Single Concentric Hanger Block
QAMH15A300S PDF download| QAMH15A300S interchange timken QAMH15A300S | |
| QAMH15A300S cross reference timken QAMH15A300S | |
| QAMH15A300S Equivalent bearing interchange guide： | |
| Price： | enquiry |
| Model Number： | QAMH15A300S |
| d: | 4.67 |
| D: | 3.14 |
| B: | 22.00 lb10.00 Kg |
| r(min): | 0883450415354 0883450415361 0883450415378 0883450415385 0883450415392 0883450415408 0883450415415 08 |
| r1(min): | 1-8UNC |
| Width: | 0.0020 in0.051 mm |
| Size: | 3 in |
| Weight： | Imperial |
| Bearing Number： | 0.0020 in0.050 mm |
| Housing Construction： | 0.0031 in0.080 mm |
| UPC Code： | 2900 rpm |
| Shaft Size Type： | 1600 rpm |
| Engineering Group | Mounted Bearing |
| Bearing Number | 22215 |
| Shaft Size | 3 in |
| Shaft Size Type | Imperial |
| Housing Construction | Hanger |
| Locking Style | Single Concentric |
| Weight | 22.00 lb10.00 Kg |
| Full Timken Part Number | QAMH15A300SB QAMH15A300SC QAMH15A300SEB QAMH15A300SEC QAMH15A300SEM QAMH15A300SEN QAMH15A300SEO QAMH15A300SET QAMH15A300SM QAMH15A300SN QAMH15A300SO QAMH15A300ST |
| UPC Code | 0883450415354 0883450415361 0883450415378 0883450415385 0883450415392 0883450415408 0883450415415 0883450415422 0883450415439 0883450415446 0883450415453 0883450415460 |
| Dimension A | 5.19 in131.8 mm |
| Dimension B | 8.38 in212.9 mm |
| Dimension C | 4.29 in109.0 mm |
| Dimension D | 6.380 in162.10 mm |
| Dimension E | 2.00 in50.8 mm |
| Dimension F | 2.00 in50.8 mm |
| Dimension G | 2.75 in69.9 mm |
| Dimension KA | 1.25 in31.8 mm |
| Dimension L | 3.620 in91.90 mm |
| Dimension M | 2.37 in60.2 mm |
| Dimension RA | 0.00 in0.0 mm |
| Dimension SA | 3.62 in91.9000 mm |
| Thread Size J | 1-8UNC |
| C0 - Static Load | 54100 lb240 kN |
| C - Dynamic Load (Basic) | 49900 lb222 kN |
| e - Geometry Factor | 0.22 |
| Y1 - Geometry Factor | 3.14 |
| Y2 - Geometry Factor | 4.67 |
| Oil Lubrication - M/N Seal | 1600 rpm |
| Oil Lubrication - B/C/O Seal | 1300 rpm |
| Grease Lubrication - M/N Seal | 1600 rpm |
| Grease Lubrication - B/C/O Seal | 1300 rpm |
| Oil Lubrication - T Seal | 2900 rpm |
| Grease Lubrication - T Seal | 2400 rpm |
| Float | 0.083 in |
| Shaft Tolerance | 0.0020 in0.051 mm |
| Eng Internal Radial Clearance - Min | 0.0020 |
| Eng Internal Radial Clearance - Max | 0.0031 |
| Pre Install Clearance Min | 0.0020 in0.050 mm |
| Pre Install Clearance Max | 0.0031 in0.080 mm |
| No. | Weight | Bearing Number | Housing Construction | UPC Code | Shaft Size Type | Full Timken Part Number |
|---|---|---|---|---|---|---|
| RNA5928 | 1.50 | RNA5928 | 3.4800 | 2500 | 1700 | 190 |
| W3205SS-3ZY-C5Z10 | 850 | W3205SS-3ZY-C5Z10 | 500 | - | - | - |
| KV45x50x25.8XS | KV45x50x25.8XS | 0.045 | 9000 | 6000 | 45 | 50 |
| UKC322+HE2322X | A-R1/8 | Heavy-duty(3) | UKC322+HE2322X | 4.00000000 | - | - |
| N211 | 55 | N211 | 0.640 | 1.1 | 1.5 | 100 |
| CFKRE 90 UUR | 438.00 | - | 6 | 49.0 | CFKRE 90 UUR | 2270.0 |
| RLM172415 | 0.50 | RLM172415 | 0.0180 | 20000 | 17 | 24 |
| 6208/Z/C3 | 0.370 Kg | 1.100 mm | 18.000 mm | 80.000 mm | 13000 rpm | 8800 rpm |
| 7016BDB FY | 80 | 1.1 | 7016BDB FY | 4600 | 3500 | 125 |
| 7208BDT | 40 | 0.60 | 1.1 | 0.760 | 7200 | 5300 |
