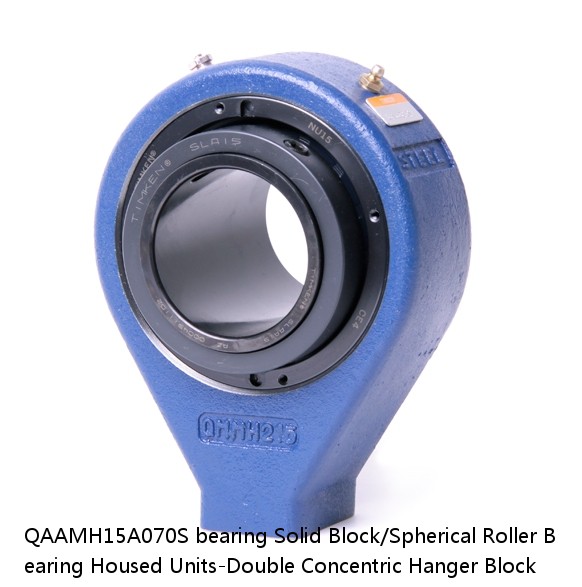

QAAMH15A070S Bearing | Solid Block/Spherical Roller Bearing Housed Units-Double Concentric Hanger Block
QAAMH15A070S PDF download| QAAMH15A070S interchange timken QAAMH15A070S | |
| QAAMH15A070S cross reference timken QAAMH15A070S | |
| QAAMH15A070S Equivalent bearing interchange guide： | |
| Price： | enquiry |
| Model Number： | QAAMH15A070S |
| d: | 4.67 |
| D: | 3.14 |
| B: | 22.00 lb10.00 Kg |
| r(min): | 0883450412230 0883450412247 0883450412254 0883450412261 0883450412278 0883450412285 0883450412292 08 |
| r1(min): | 1-8UNC |
| Width: | 0.0020 in0.051 mm |
| Size: | 70 mm |
| Weight： | Metric |
| Bearing Number： | 0.0020 in0.050 mm |
| Housing Construction： | 0.0031 in0.080 mm |
| UPC Code： | 2900 rpm |
| Shaft Size Type： | 1600 rpm |
| Engineering Group | Mounted Bearing |
| Bearing Number | 22215 |
| Shaft Size | 70 mm |
| Shaft Size Type | Metric |
| Housing Construction | Hanger |
| Locking Style | Double Concentric |
| Weight | 22.00 lb10.00 Kg |
| Full Timken Part Number | QAAMH15A070SB QAAMH15A070SC QAAMH15A070SEB QAAMH15A070SEC QAAMH15A070SEM QAAMH15A070SEN QAAMH15A070SEO QAAMH15A070SET QAAMH15A070SM QAAMH15A070SN QAAMH15A070SO QAAMH15A070ST |
| UPC Code | 0883450412230 0883450412247 0883450412254 0883450412261 0883450412278 0883450412285 0883450412292 0883450412308 0883450412315 0883450412322 0883450412339 0883450412346 |
| Dimension A | 5.19 in131.8 mm |
| Dimension B | 8.38 in212.9 mm |
| Dimension C | 4.29 in109.0 mm |
| Dimension D | 6.380 in162.10 mm |
| Dimension E | 2.00 in50.8 mm |
| Dimension F | 2.00 in50.8 mm |
| Dimension G | 2.75 in69.9 mm |
| Dimension L | 3.620 in91.90 mm |
| Dimension M | 2.37 in60.2 mm |
| Dimension RAA | 1.12 in28.4 mm |
| Dimension SAA | 4.75 in120.7000 mm |
| Thread Size J | 1-8UNC |
| C0 - Static Load | 54100 lb240 kN |
| C - Dynamic Load (Basic) | 49900 lb222 kN |
| e - Geometry Factor | 0.22 |
| Y1 - Geometry Factor | 3.14 |
| Y2 - Geometry Factor | 4.67 |
| Oil Lubrication - M/N Seal | 1600 rpm |
| Oil Lubrication - B/C/O Seal | 1300 rpm |
| Grease Lubrication - M/N Seal | 1600 rpm |
| Grease Lubrication - B/C/O Seal | 1300 rpm |
| Oil Lubrication - T Seal | 2900 rpm |
| Grease Lubrication - T Seal | 2400 rpm |
| Float | 0.083 in |
| Shaft Tolerance | 0.0020 in0.051 mm |
| Eng Internal Radial Clearance - Min | 0.0020 |
| Eng Internal Radial Clearance - Max | 0.0031 |
| Pre Install Clearance Min | 0.0020 in0.050 mm |
| Pre Install Clearance Max | 0.0031 in0.080 mm |
| No. | Weight | Bearing Number | Housing Construction | UPC Code | Shaft Size Type | Full Timken Part Number |
|---|---|---|---|---|---|---|
| 7317 FY | 85 | 1.100 | 3.000 | 5500 | 4400 | 7317FY |
| UCHA211-35J | A-R1/8 | UCHA211-35J | 2 3/16 | Normal-duty(2) | - | - |
| AOH 30/850 | HM 30/900 | HMV 180 E | AOH 30/850 | 800.000 | 850.000 | 343.000 |
| 6207/2RZ | 0.29 Kg | 1.100 mm | 17.000 mm | 72.000 mm | 14000 rpm | 10000 rpm |
| 7409DB FY | 45 | 2.0 | 7409DB FY | 6000 | 4200 | 120 |
| KT-A8 | KT-A8 | Available only in Japan | - | - | - | - |
| SAS 2 | 6.658 lb3.02 Kg | 2.311 in58.70 mm | 222.3 mm8.752 in | 126.2 mm4.969 in | 6570 lbf29200 N | 2 in50.8 mm |
| 7076BDB FY | 380 | 5.0 | 7076BDB FY | 750 | 560 | 560 |
| 85045 | 85045 | 252.430 | 252.425 | 57.150 | - | - |
| 7318BDF | 90 | 1.10 | 3.0 | 7318B | 5.160 | 4 500 |
