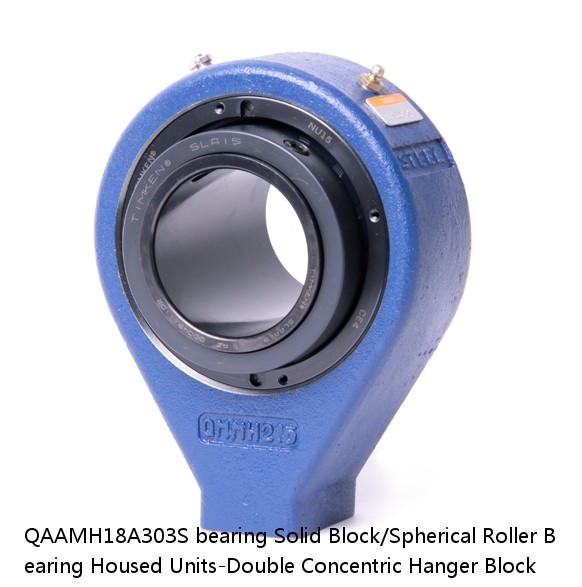

QAAMH18A303S Bearing | Solid Block/Spherical Roller Bearing Housed Units-Double Concentric Hanger Block
QAAMH18A303S PDF download| QAAMH18A303S interchange timken QAAMH18A303S | |
| QAAMH18A303S cross reference timken QAAMH18A303S | |
| QAAMH18A303S Equivalent bearing interchange guide： | |
| Price： | enquiry |
| Model Number： | QAAMH18A303S |
| d: | 4.31 |
| D: | 2.90 |
| B: | 36 lb16.30 Kg |
| r(min): | 0883450413329 0883450413336 0883450413343 0883450413350 0883450413367 0883450413374 0883450413381 08 |
| r1(min): | 1 1/4-7UNC |
| Width: | 0.0030 in0.076 mm |
| Size: | 3-3/16 in |
| Weight： | Imperial |
| Bearing Number： | 0.0024 in0.060 mm |
| Housing Construction： | 0.0039 in0.100 mm |
| UPC Code： | 2400 rpm |
| Shaft Size Type： | 1400 rpm |
| Engineering Group | Mounted Bearing |
| Bearing Number | 22218 |
| Shaft Size | 3-3/16 in |
| Shaft Size Type | Imperial |
| Housing Construction | Hanger |
| Locking Style | Double Concentric |
| Weight | 36 lb16.30 Kg |
| Full Timken Part Number | QAAMH18A303SB QAAMH18A303SC QAAMH18A303SEB QAAMH18A303SEC QAAMH18A303SEM QAAMH18A303SEN QAAMH18A303SEO QAAMH18A303SET QAAMH18A303SM QAAMH18A303SN QAAMH18A303SO QAAMH18A303ST |
| UPC Code | 0883450413329 0883450413336 0883450413343 0883450413350 0883450413367 0883450413374 0883450413381 0883450413398 0883450413404 0883450413411 0883450413428 0883450413435 |
| Dimension A | 6.31 in160.3 mm |
| Dimension B | 10.25 in260.4 mm |
| Dimension C | 5.13 in130.3 mm |
| Dimension D | 7.880 in200.20 mm |
| Dimension E | 2.50 in63.5 mm |
| Dimension F | 3.00 in76.2 mm |
| Dimension G | 3.00 in76.2 mm |
| Dimension L | 3.910 in99.30 mm |
| Dimension M | 2.59 in65.8 mm |
| Dimension RAA | 1.27 in32.3 mm |
| Dimension SAA | 5.18 in131.6000 mm |
| Thread Size J | 1 1/4-7UNC |
| C0 - Static Load | 87200 lb388 kN |
| C - Dynamic Load (Basic) | 79700 lb355 kN |
| e - Geometry Factor | 0.23 |
| Y1 - Geometry Factor | 2.90 |
| Y2 - Geometry Factor | 4.31 |
| Oil Lubrication - M/N Seal | 1400 rpm |
| Oil Lubrication - B/C/O Seal | 1000 rpm |
| Grease Lubrication - M/N Seal | 1400 rpm |
| Grease Lubrication - B/C/O Seal | 1000 rpm |
| Oil Lubrication - T Seal | 2400 rpm |
| Grease Lubrication - T Seal | 2000 rpm |
| Float | 0.083 in2.108 mm |
| Shaft Tolerance | 0.0030 in0.076 mm |
| Eng Internal Radial Clearance - Min | 0.0024 |
| Eng Internal Radial Clearance - Max | 0.0039 |
| Pre Install Clearance Min | 0.0024 in0.060 mm |
| Pre Install Clearance Max | 0.0039 in0.100 mm |
| No. | Weight | Bearing Number | Housing Construction | UPC Code | Shaft Size Type | Full Timken Part Number |
|---|---|---|---|---|---|---|
| AOH 241/850 | HM 31/900 | HMV 180 E | AOH 241/850 | 800.000 | 850.000 | 600.000 |
| LM 100150175 UU AJ | Both side Seal (UU) | Steel | LM 100150175 UU AJ | Steel | 100 | - |
| 2MVC9113WI | 1 mm0.039 in | 1 mm0.039 in | 30480 rpm | 15240 rpm | 10.318750 mm13/32 in | METRIC |
| H-E30306J | 20.75 | 30 | 2FB | 1.5 | 1.5 | 0.411 |
| QMSN18J085S | 4.31 | 2.90 | 56 lb25.5 Kg | 0883450098120 0883450098137 0883450098151 0883450098168 0883450098175 0883450098182 0883450098199 08 | 0.0030 in0.076 mm | 85 mm |
| 220BAR10S | 220 | 1 | 2.5 | 1.1 | 3.0 | 340 |
| E/P2B/TRB/2 7/16/ECO | 2.63 | 2.17 | 0.7 | 0.87 | 23 lb | 0883450507240 |
| BT4B 330944 AG/HA4 | 952.500 | 5300 | 95000 | 31900 | BT4B 330944 AG/HA4 | 939.800 |
| AOH 31/750 | HM 31/800 | HMV 160 E | AOH 31/750 | 710.000 | 750.000 | 441.000 |
| SNW-40X7-1/4 | HMVC 40E | AN 40 | SNW-40X7-1/4 | 250.165 | 184.150 | 200.000 |
