Double Concentric Solid-Block Housed Units
- Solid Block/Spherical Roller Bearing Housed Units-Double Concentric Hanger Block
- QAAMH18A304S

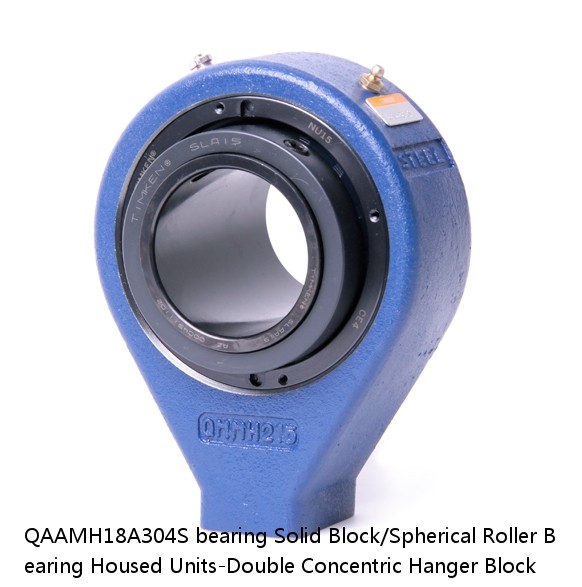

QAAMH18A304S Bearing | Solid Block/Spherical Roller Bearing Housed Units-Double Concentric Hanger Block
QAAMH18A304S PDF download| QAAMH18A304S interchange timken QAAMH18A304S | |
| QAAMH18A304S cross reference timken QAAMH18A304S | |
| QAAMH18A304S Equivalent bearing interchange guide： | |
| Price： | enquiry |
| Model Number： | QAAMH18A304S |
| d: | 4.31 |
| D: | 2.90 |
| B: | 36 lb16.30 Kg |
| r(min): | 0883450413442 0883450413459 0883450413466 0883450413473 0883450413480 0883450413497 0883450413503 08 |
| r1(min): | 1 1/4-7UNC |
| Width: | 0.0030 in0.076 mm |
| Size: | 3-1/4 in |
| Weight： | Imperial |
| Bearing Number： | 0.0024 in0.060 mm |
| Housing Construction： | 0.0039 in0.100 mm |
| UPC Code： | 2400 rpm |
| Shaft Size Type： | 1400 rpm |
| Engineering Group | Mounted Bearing |
| Bearing Number | 22218 |
| Shaft Size | 3-1/4 in |
| Shaft Size Type | Imperial |
| Housing Construction | Hanger |
| Locking Style | Double Concentric |
| Weight | 36 lb16.30 Kg |
| Full Timken Part Number | QAAMH18A304SB QAAMH18A304SC QAAMH18A304SEB QAAMH18A304SEC QAAMH18A304SEM QAAMH18A304SEN QAAMH18A304SEO QAAMH18A304SET QAAMH18A304SM QAAMH18A304SN QAAMH18A304SO QAAMH18A304ST |
| UPC Code | 0883450413442 0883450413459 0883450413466 0883450413473 0883450413480 0883450413497 0883450413503 0883450413510 0883450413527 0883450413534 0883450413541 0883450413558 |
| Dimension A | 6.31 in160.3 mm |
| Dimension B | 10.25 in260.4 mm |
| Dimension C | 5.13 in130.3 mm |
| Dimension D | 7.880 in200.20 mm |
| Dimension E | 2.50 in63.5 mm |
| Dimension F | 3.00 in76.2 mm |
| Dimension G | 3.00 in76.2 mm |
| Dimension L | 3.910 in99.30 mm |
| Dimension M | 2.59 in65.8 mm |
| Dimension RAA | 1.27 in32.3 mm |
| Dimension SAA | 5.18 in131.6000 mm |
| Thread Size J | 1 1/4-7UNC |
| C0 - Static Load | 87200 lb388 kN |
| C - Dynamic Load (Basic) | 79700 lb355 kN |
| e - Geometry Factor | 0.23 |
| Y1 - Geometry Factor | 2.90 |
| Y2 - Geometry Factor | 4.31 |
| Oil Lubrication - M/N Seal | 1400 rpm |
| Oil Lubrication - B/C/O Seal | 1000 rpm |
| Grease Lubrication - M/N Seal | 1400 rpm |
| Grease Lubrication - B/C/O Seal | 1000 rpm |
| Oil Lubrication - T Seal | 2400 rpm |
| Grease Lubrication - T Seal | 2000 rpm |
| Float | 0.083 in2.108 mm |
| Shaft Tolerance | 0.0030 in0.076 mm |
| Eng Internal Radial Clearance - Min | 0.0024 |
| Eng Internal Radial Clearance - Max | 0.0039 |
| Pre Install Clearance Min | 0.0024 in0.060 mm |
| Pre Install Clearance Max | 0.0039 in0.100 mm |
| No. | Weight | Bearing Number | Housing Construction | UPC Code | Shaft Size Type | Full Timken Part Number |
|---|---|---|---|---|---|---|
| QMPH30J508S | 3.10 | 2.08 | 250 lb113.4 Kg | 0883450033954 0883450033961 0883450138888 0883450138895 0883450138901 0883450138918 0883450138949 08 | 0.0050 in0.127 mm | 5-1/2 in |
| 440 VE R | 440 VE R | 445.000 | 30.000 | 50.000 | 440.000 | 429.000 |
| NA495T2 | 0.15 | NA495T2 | 0.007 | 34000 | 23000 | 13 |
| 351006 A | 300 | 220 | 160.0 | 16000.0 | 1430.0 | 0.00 |
| DVF22K400S | 3.80 | 2.55 | 53.0 lb24.0 Kg | 0.0040 in0.102 mm | 4 in | Imperial |
| 51316 | 44 | 140 | 80 | 1.5 | 2.82 | 1800 |
| 7038B FY | 190 | 1.100 | 2.100 | 2300 | 1700 | 7038BFY |
| YAT 207-104-46.1 | 72 | 19 | - | 0.000 | 15.300 | 25.500 |
| IR-445228 | 0.503 / 1.110 | 2 3/4 | 2.030 / 0.08 | IR-445228 | 69.822 / 2.7489 | 69.860 / 2.7504 |
| 378DE/374 | 1.9689 in50.010 mm | 375 | 0.030 in0.80 mm | Spacer shows standard nominal .01 radii, actual bearing may vary | Imperial | 3.6718 in93.264 mm |
