Ball Bearing Housed Units (Includes R, V, Y & S Series)

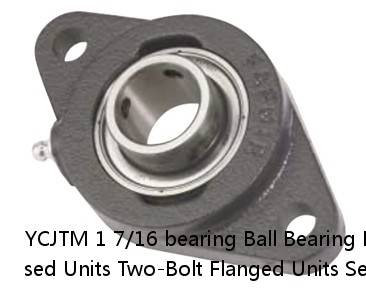

YCJTM 1 7/16 Bearing | Ball Bearing Housed Units Two-Bolt Flanged Units Setscrew Locking

YCJTM 1 7/16 interchange timken YCJTM 1 7/16
YCJTM 1 7/16 cross reference timken YCJTM 1 7/16
YCJTM 1 7/16 Equivalent bearing interchange guide：
Price：	enquiry
Model Number：	YCJTM 1 7/16
d:	4.890 lb2.22 Kg
D:	171.5 mm6.752 in
B:	104.8 mm4.126 in
r(min):	4460 lbf19800 N
r1(min):	1 7/16 in36.5 mm
Width:	Medium-Duty
Size:	Shroud Seal
Weight：	49.20 mm1.937 in
Bearing Number：	2.058 in52.27 mm
Housing Construction：	1.500 in38.10 mm
UPC Code：	Two-Bolt Flange
Shaft Size Type：	12.70 mm0.500 in

Shaft Size d	1 7/16 in36.5 mm
Bearing Type	Ball Bearing
Bearing Number	GYM1107KRRB
Dimension E	2.142 in54.4 mm
Inside Ring Outside Diameter	2.058 in52.27 mm
Series	Medium-Duty
Weight	4.890 lb2.22 Kg
Seal Type	Shroud Seal
Housing Construction	Two-Bolt Flange
Alternate Part Name	YCJTM1 7/16
Total Length H	171.5 mm6.752 in
Total Height L	104.8 mm4.126 in
Housing Width A	1.500 in38.10 mm
Bolt Hole Spacing J	143.7 mm5.657 in
Bolt Hole Size N	13.1 mm0.516 in
Flange Thickness A1	12.70 mm0.500 in
Center of Bearing from Housing End A2	24.2 mm0.953 in
Inside Ring Width B	49.20 mm1.937 in
Center of Bearing from Bearing End S	24.2 mm0.953 in
Static Load Rating	4460 lbf19800 N
Dynamic Load Rating	8130 lbf36200 N
