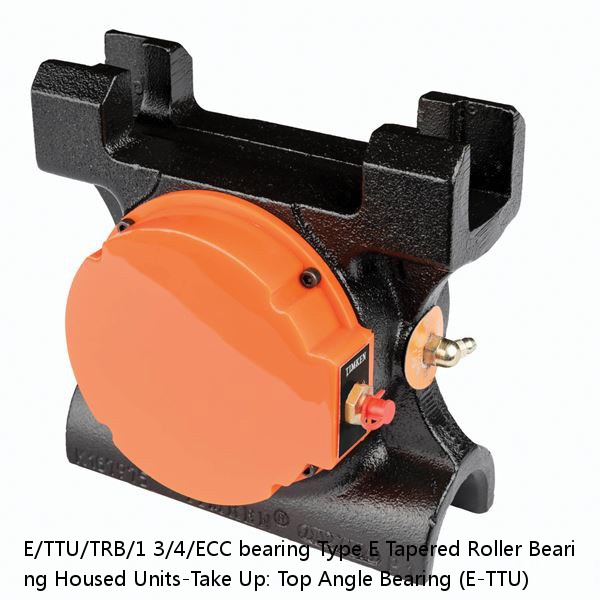

E/TTU/TRB/1 3/4/ECC Bearing | Type E Tapered Roller Bearing Housed Units-Take Up: Top Angle Bearing (E-TTU)
E/TTU/TRB/1 3/4/ECC interchange LOYAL E/TTU/TRB/1 3/4/ECC | |
E/TTU/TRB/1 3/4/ECC cross reference LOYAL E/TTU/TRB/1 3/4/ECC | |
E/TTU/TRB/1 3/4/ECC Equivalent bearing interchange guide: | |
Price: | enquiry |
Model Number: | E/TTU/TRB/1 3/4/ECC |
d: | 3.18 |
D: | 2.64 |
B: | 0.7 |
r(min): | 0.87 |
r1(min): | 14 lb |
Width: | 0883450504942 |
Size: | 1.75 in |
Weight: | Imperial |
Bearing Number: | Note: All units have a 1/8" pipe thread grease fittingThe Maximum Permissible Thrust Load appli |
Housing Construction: | 3050 rpm |
UPC Code: | 1.83 |
Shaft Size Type: | 2-9/16 in |
Shaft Size | 1.75 in |
Shaft Size Type | Imperial |
Weight | 14 lb |
UPC Code | 0883450504942 |
Type E Closed Cover Number | EUC-D |
Dimension B | 3-1/2 in |
Dimension H | 6-3/8 in |
Dimension H1 | 5-3/16 in |
Dimension H2 | 2.39 in |
Dimension d1 | 3-7/16 in |
Dimension A | 1-3/4 in |
Dimension A1 | 1-3/4 in |
Housing Width | 2-9/16 in |
Dimension L | 6-1/2 in |
Dimension L1 | 6 in |
Dimension L2 | 3.4 in |
Dimension Ac | 3.5445 in |
Dimension d2 | 4.196 in |
e | 0.33 |
X (if Fa/Fr ≤ e) | 0.87 |
Y (if Fa/Fr ≤ e) | 2.64 |
X (if Fa/Fr > e) | 0.7 |
Y (if Fa/Fr > e) | 3.18 |
K Factor | 1.83 |
C90 Dynamic Load Rating1 | 10300 lb |
C0 Static Load Rating | 43000 lb |
Fa-max Maximum Permissible Thrust Load2 | 2590 lb |
Fr-max Maximum Allowable Slip Fit Radial Load3 | 8400 lb |
Max. Speed4 | 3050 rpm |
Note | Note: All units have a 1/8" pipe thread grease fittingThe Maximum Permissible Thrust Load applies to conditions of slip fit with set screw mounting or in applications where a large moment loading occu |
No. | Weight | Bearing Number | Housing Construction | UPC Code | Shaft Size Type | Full Timken Part Number |
---|---|---|---|---|---|---|
LS150068EMN1KCZ1AL+(4) | 4.0 | - | - | - | - | - |
NN3052K | _ | 260 | 3.0 | 4.0 | NN3052K | 47.700 |
UCSF208JH1S6 | A-1/4-28UNF | 40 / Normal-Duty (2) | 40 | Normal-Duty (2) | Standard | - |
7215 BECBM | 6300 | 2.7 | 65.5 | 73.5 | 7215 BECBM | 75.000 |
7224BDT | Standard | 120 | 2.0 | 2.1 | 7224BDT | 2600 |
YCJTM 2 | 5.490 lb2.49 Kg | 215.9 mm8.500 in | 127 mm5.000 in | 6570 lbf29200 N | 2 in50.8 mm | Medium-Duty |
SYE-2.3/4 | 31.75000 | 2800 | 0.79375 | 4.003 | 71.1715 | 48.041 |
5304 | 20 | 1.1 | 11000 | 8300 | 52 | 0.780 |
B-98 | B-98 | 2.70 | 14.288 | 12.700 | - | 19.050 |
23044EMW33C3 | 2.71 | 4.13 | 2.77 | 1700 | 1400 | 2.5 mm0.100 in |
