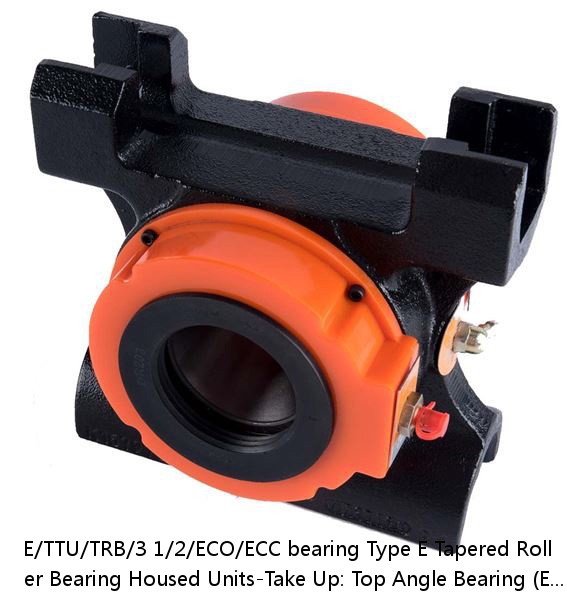

Type E Tapered Roller Bearing Housed Units

E/TTU/TRB/3 1/2/ECO/ECC Bearing | Type E Tapered Roller Bearing Housed Units-Take Up: Top Angle Bearing (E-TTU)

E/TTU/TRB/3 1/2/ECO/ECC interchange LOYAL E/TTU/TRB/3 1/2/ECO/ECC
E/TTU/TRB/3 1/2/ECO/ECC cross reference LOYAL E/TTU/TRB/3 1/2/ECO/ECC
E/TTU/TRB/3 1/2/ECO/ECC Equivalent bearing interchange guide：
Price：	enquiry
Model Number：	E/TTU/TRB/3 1/2/ECO/ECC
d:	2.07
D:	1.71
B:	0.7
r(min):	0.87
r1(min):	42 lb
Width:	0883450506236
Size:	3.5 in
Weight：	Imperial
Bearing Number：	Note: All units have a 1/8" pipe thread grease fittingThe Maximum Permissible Thrust Load appli
Housing Construction：	1640 rpm
UPC Code：	1.19
Shaft Size Type：	3-1/2 in

Shaft Size	3.5 in
Shaft Size Type	Imperial
Weight	42 lb
UPC Code	0883450506236
Type E Open Cover Number	EUDR-3 1/2
Type E Closed Cover Number	EUC-H
Dimension B	5 in
Dimension H	9-5/8 in
Dimension H₁	8-5/16 in
Dimension H2	4.05 in
Dimension d₁	5-17/32 in
Dimension A	2-1/2 in
Dimension A₁	2-1/2 in
Housing Width	3-1/2 in
Dimension L	9-1/2 in
Dimension L₁	9 in
Dimension L2	4.46 in
Dimension A_c	6 in
Dimension d₂	6.7 in
e	0.50
X (if F_a/F_r ≤ e)	0.87
Y (if F_a/F_r ≤ e)	1.71
X (if F_a/F_r > e)	0.7
Y (if F_a/F_r > e)	2.07
K Factor	1.19
C₉₀ Dynamic Load Rating¹	19600 lb
C₀ Static Load Rating	108600 lb
F_a-max Maximum Permissible Thrust Load²	5181 lb
F_r-max Maximum Allowable Slip Fit Radial Load³	16000 lb
Max. Speed⁴	1640 rpm
Note	Note: All units have a 1/8" pipe thread grease fittingThe Maximum Permissible Thrust Load applies to conditions of slip fit with set screw mounting or in applications where a large moment loading occu
