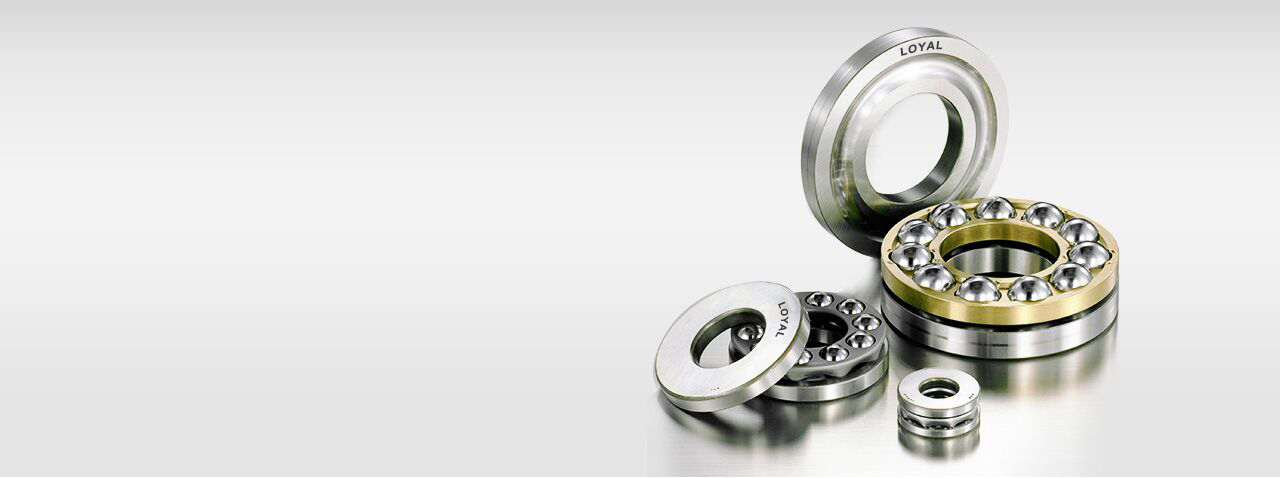

- Thrust Bearings
- Standard type
- All
1～20/77
- Thrust Bearings
- Standard type
- All
| Bearing No. | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Weight | Thermal Speed Rating | T3 - Cup Width | T1 - Cage Position | T - Total Width | Static Load Rating | S - Dimension | r - Fillet Radius | H - Shoulder Diameter - Shaft (Min) | |
| 699... | 240 rpm | 117.00 mm4.... | 156.42 mm6.156 in | 224.00 mm8.8... | 55860 kN1255700... | 418.00 mm1... | 8.00 mm0.320 in | 966.00 mm38.030 in | |
| 609... | 300 rpm | 124.00 mm4.... | 171.42 mm6.749 in | 236.00 mm9.2... | 47120 kN1059300... | 310.00 mm1... | 8.00 mm0.310 in | 753.00 mm29.650 in | |
| 196... | 440 rpm | 73.50 mm2.8... | 101.60 mm4.000 in | 150.00 mm5.9... | 20000 kN4500000... | 270.00 mm1... | 5.00 mm0.197 in | 635.0 mm25.00 in | |
| 142... | 140 rpm | 144.50 mm5.... | 175.80 mm10.859 in | 276.00 mm10.... | 94280 kN2119400... | 561.00 mm2... | 10.00 mm0.390 in | 1224.00 mm48.190 in | |
| 822... | 260 rpm | 134.00 mm5.... | 186.00 mm7.320 in | 258.00 mm10.... | 57530 kN1293300... | 351.00 mm1... | 10.00 mm0.390 in | 847.10 mm33.350 in | |
| 326... | 140 rpm | 208.50 mm8.... | 289.90 mm11.410 in | 402.00 mm15.... | 148040 kN332800... | 580.00 mm2... | 12.00 mm0.470 in | 1385.10 mm54.530 in | |
| 633... | 230 rpm | 102.00 mm4.... | 131.10 mm5.161 in | 190.00 mm7.4... | 59110 kN1328800... | 539.00 mm2... | 8.00 mm0.310 in | 1187.00 mm46.730 in | |
| 215... | 170 rpm | 181.00 mm7.... | 253.10 mm9.960 in | 354.09 mm13.... | 109310 kN245740... | 495.00 mm1... | 12.00 mm0.470 in | 1190.00 mm46.850 in | |
| 256... | 160 rpm | 195.50 mm7.... | 272.10 mm10.710 in | 372.00 mm14.... | 126950 kN285400... | 523.00 mm2... | 12.00 mm0.470 in | 1253.00 mm49.330 in | |
| 296... | 150 rpm | 204.00 mm8.... | 284.60 mm11.210 in | 390.00 mm15.... | 139020 kN312530... | 552.00 mm2... | 12.00 mm0.470 in | 1321.00 mm52.010 in | |
| 183... | 190 rpm | 173.50 mm6.... | 241.59 mm9.511 in | 335.00 mm13.... | 98280 kN2209400... | 467.00 mm1... | 12.00 mm0.470 in | 1122.00 mm44.170 in | |
| 115... | 230 rpm | 150.00 mm5.... | 209.25 mm8.238 in | 290.00 mm11.... | 71970 kN1617900... | 391.00 mm1... | 12.00 mm0.470 in | 946.00 mm37.240 in | |
| 137... | 210 rpm | 160.00 mm6.... | 222.61 mm8.764 in | 308.00 mm12.... | 81300 kN1827600... | 414.00 mm1... | 12.00 mm0.470 in | 1003.00 mm39.490 in | |
| 153... | 200 rpm | 163.00 mm6.... | 226.81 mm8.929 in | 315.00 mm12.... | 87900 kN1976100... | 439.00 mm1... | 12.00 mm0.470 in | 1054.00 mm41.500 in | |
| 361... | 330 rpm | 89.00 mm3.5... | 127.30 mm5.012 in | 180.20 mm7.0... | 32700 kN7360000... | 335.00 mm1... | 6.00 mm0.240 in | 780.00 mm30.709 in | |
| 218... | 410 rpm | 73.00 mm2.8... | 89.50 mm3.520 in | 140.00 mm5.5... | 22000 kN4940000... | 363.00 mm1... | 5.00 mm0.197 in | 813.00 mm32.010 in | |
| 195... | 380 rpm | 71.50 mm2.8... | 90.32 mm3.556 in | 132.00 mm5.1... | 25800 kN5800000... | 338.00 mm1... | 5.00 mm0.197 in | 738.00 mm29.060 in | |
| 101... | 240 rpm | 146.00 mm5.... | 203.10 mm8.000 in | 280.00 mm11.... | 65910 kN1481600... | 367.00 mm1... | 10.00 mm0.390 in | 893.10 mm35.160 in | |
| 309... | 370 rpm | 85.00 mm3.3... | 119.10 mm4.689 in | 175.00 mm6.8... | 26600 kN5990000... | 310.00 mm1... | 6.00 mm0.240 in | 740.00 mm29.134 in | |
| 744... | 280 rpm | 134.00 mm6.... | 183.20 mm7.210 in | 250.00 mm9.8... | 54370 kN1222200... | 328.00 mm1... | 10.00 mm0.390 in | 798.10 mm31.420 in | |
