Double Concentric Solid-Block Housed Units
- Solid Block/Spherical Roller Bearing Housed Units-Double Concentric Four-Bolt Pillow Block
- QAAPF15A070S

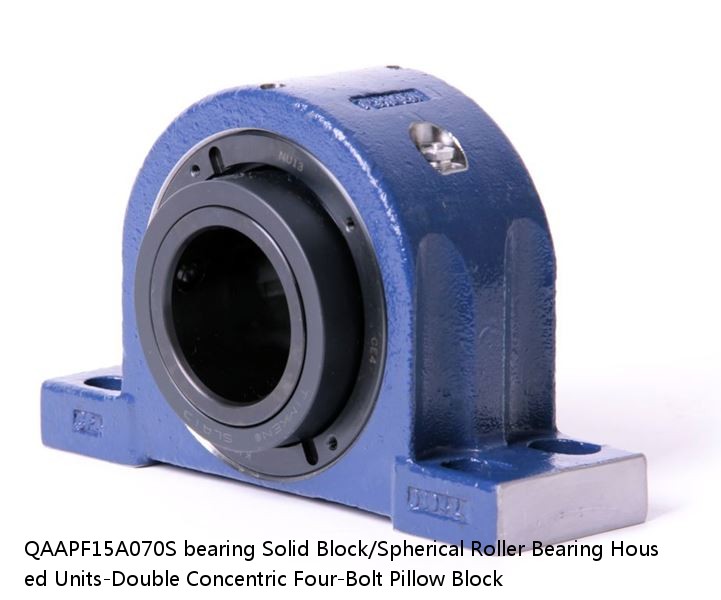

QAAPF15A070S bearing | Solid Block/Spherical Roller Bearing Housed Units-Double Concentric Four-Bolt Pillow Block
QAAPF15A070S PDF download| Price： | enquiry |
| Model Number： | QAAPF15A070S |
| Weight： | 4.67 |
| Bearing Number： | 3.14 |
| Housing Construction： | 27 lb12.2 Kg |
| UPC Code： | 0.0020 in0.051 mm |
| Shaft Size Type： | 70 mm |
| Engineering Group | Mounted Bearing |
| Bearing Number | 22215 |
| Shaft Size | 70 mm |
| Shaft Size Type | Metric |
| Full Timken Part Number | QAAPF15A070SB QAAPF15A070SC QAAPF15A070SEB QAAPF15A070SEC QAAPF15A070SEM QAAPF15A070SEN QAAPF15A070SEO QAAPF15A070SET QAAPF15A070SM QAAPF15A070SN QAAPF15A070SO QAAPF15A070ST |
| Locking Style | Double Concentric |
| Weight | 27 lb12.2 Kg |
| Housing Construction | Four-Bolt Pillow Block |
| UPC Code | 0883450319850 0883450319867 0883450319874 0883450319881 0883450319898 0883450319904 0883450319911 0883450319928 0883450319935 0883450319942 0883450319959 0883450319966 |
| Dimension A | 3.25 in82.6 mm |
| Dimension B | 6.60 in167.6 mm |
| Dimension C | 4.29 in109 mm |
| Dimension D Max | 9.10 in231.1 mm |
| Dimension D Min | 7.60 in193.0 mm |
| Dimension E | 1.88 in47.8 mm |
| Dimension F | 10.44 in265.2 mm |
| Dimension G | 3.130 in79.50 mm |
| Dimension H | 1.29 in32.8 mm |
| Dimension J (Bolt Size) | 0.625 in16 mm |
| Dimension L | 3.94 in100.1 mm |
| Dimension M | 2.37 in60.2 mm |
| Dimension RAA | 0.88 in22.4 mm |
| Dimension SAA | 4.74 in120.4 mm |
| C0 - Static Load | 54100 lb240 kN |
| C - Dynamic Load (Basic) | 49900 lb222 kN |
| e - Geometry Factor | 0.22 |
| Y1 - Geometry Factor | 3.14 |
| Y2 - Geometry Factor | 4.67 |
| Oil Lubrication - M/N Seal | 1600 rpm |
| Oil Lubrication - T Seal | 2900 rpm |
| Oil Lubrication - B/C/O Seal | 1300 rpm |
| Grease Lubrication - M/N Seal | 1600 rpm |
| Grease Lubrication - T Seal | 2400 rpm |
| Grease Lubrication - B/C/O Seal | 1300 rpm |
| Float | 0.083 in2.108 mm |
| Shaft Tolerance | 0.0020 in0.051 mm |
| Eng Internal Radial Clearance - Min | 0.0020 |
| Eng Internal Radial Clearance - Max | 0.0031 |
| Pre Install Clearance Min | 0.0020 in0.050 mm |
| Pre Install Clearance Max | 0.0031 in0.080 mm |
| No. | Weight | Bearing Number | Housing Construction | UPC Code | Shaft Size Type | Full Timken Part Number |
|---|---|---|---|---|---|---|
| 638 | 8.0 | 0.30 | 26000 | 28 | 0.100 | 5.65 |
| X32011X/Y32011X | 23.000 mm0.9055 in | 32011X | 1.52 mm0.06 in | 1.520 mm0.06 in | 28 | 46 |
| 240/500R | 6.0 | 410 | 310 | 240/500R | 720 | 545 |
| UKC205J+HE2305X | A-1/4-28UNF | Normal-duty(2) | UKC205J+HE2305X | 3/4 | - | - |
| SD3448G1 | M30 | 23148BK;H3148 | M36 | 40 | 60 | 220 |
| YARAG 206-39.7 | 62 | 18 | - | 0.000 | 11.200 | 19.500 |
| 4T-M84548/M84510 | 25.400 | 1.5 | 1.5 | 4T-M84548/M84510 | 0,24 | 57.150 |
| 7019CDF | 95 | 1.00 | 1.5 | 2.720 | 10400 | 7550 |
| 52032RS | 17 | 0.6 | 52032RS | 14000 | 11000 | 40 |
| ECL 205 | 0.010 | ECL 205 | 55.800 | 55.000 | 49.000 | 25.000 |
