Double Concentric Solid-Block Housed Units
- Solid Block/Spherical Roller Bearing Housed Units-Double Concentric Four-Bolt Pillow Block
- QAAPF18A307S

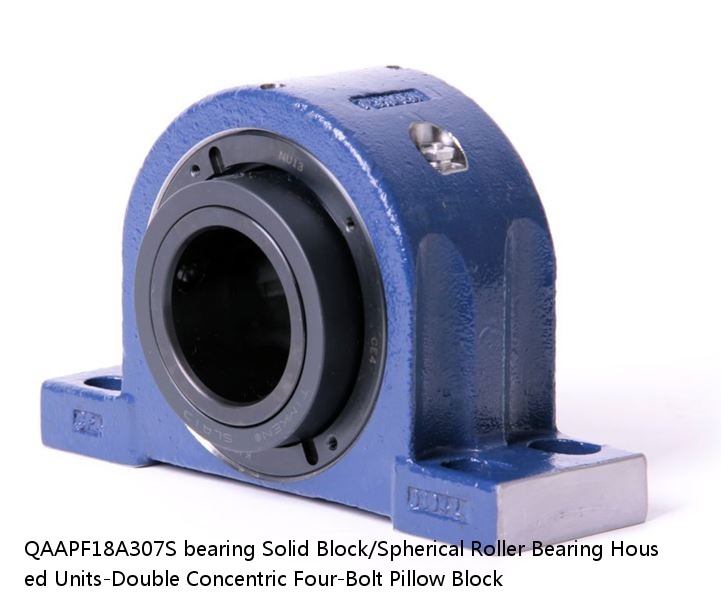

QAAPF18A307S Bearing | Solid Block/Spherical Roller Bearing Housed Units-Double Concentric Four-Bolt Pillow Block
QAAPF18A307S PDF download| QAAPF18A307S interchange timken QAAPF18A307S | |
| QAAPF18A307S cross reference timken QAAPF18A307S | |
| QAAPF18A307S Equivalent bearing interchange guide： | |
| Price： | enquiry |
| Model Number： | QAAPF18A307S |
| d: | 4.31 |
| D: | 2.90 |
| B: | 49.0 lb22.2 Kg |
| r(min): | 0.0030 in0.076 mm |
| r1(min): | 3-7/16 in |
| Width: | Imperial |
| Size: | 0.0024 in0.060 mm |
| Weight： | 0.0039 in0.100 mm |
| Bearing Number： | 2400 rpm |
| Housing Construction： | 1400 rpm |
| UPC Code： | 1000 rpm |
| Shaft Size Type： | Double Concentric |
| Engineering Group | Mounted Bearing |
| Bearing Number | 22218 |
| Shaft Size | 3-7/16 in |
| Shaft Size Type | Imperial |
| Full Timken Part Number | QAAPF18A307SB QAAPF18A307SC QAAPF18A307SEB QAAPF18A307SEC QAAPF18A307SEM QAAPF18A307SEN QAAPF18A307SEO QAAPF18A307SET QAAPF18A307SETHT QAAPF18A307SM QAAPF18A307SN QAAPF18A307SNHT QAAPF18A307SO QAAPF18 |
| Locking Style | Double Concentric |
| Weight | 49.0 lb22.2 Kg |
| Housing Construction | Four-Bolt Pillow Block |
| UPC Code | 0883450027502 0883450027519 0883450027533 0883450027540 0883450027557 0883450027564 0883450027571 0883450027588 0883450189545 0883450189675 0883450266888 0883450267021 0883450432948 0883450494243 0883 |
| Dimension A | 3.75 in95.3 mm |
| Dimension B | 7.69 in195.3 mm |
| Dimension C | 5.13 in130.3 mm |
| Dimension D Max | 10.88 in276.4 mm |
| Dimension D Min | 8.88 in225.6 mm |
| Dimension E | 2.00 in50.8 mm |
| Dimension F | 12.30 in312.4 mm |
| Dimension G | 3.7500 in95.30 mm |
| Dimension H | 1.56 in39.6 mm |
| Dimension J (Bolt Size) | 0.750 in20 mm |
| Dimension L | 4.47 in113.5 mm |
| Dimension M | 2.59 in65.8 mm |
| Dimension RAA | 0.84 in21.3 mm |
| Dimension SAA | 5.18 in131.6 mm |
| C0 - Static Load | 87200 lb388 kN |
| C - Dynamic Load (Basic) | 79700 lb355 kN |
| e - Geometry Factor | 0.23 |
| Y1 - Geometry Factor | 2.90 |
| Y2 - Geometry Factor | 4.31 |
| Oil Lubrication - M/N Seal | 1400 rpm |
| Oil Lubrication - T Seal | 2400 rpm |
| Oil Lubrication - B/C/O Seal | 1000 rpm |
| Grease Lubrication - M/N Seal | 1400 rpm |
| Grease Lubrication - T Seal | 2000 rpm |
| Grease Lubrication - B/C/O Seal | 1000 rpm |
| Float | 0.083 in2.108 mm |
| Shaft Tolerance | 0.0030 in0.076 mm |
| Eng Internal Radial Clearance - Min | 0.0024 |
| Eng Internal Radial Clearance - Max | 0.0039 |
| Pre Install Clearance Min | 0.0024 in0.060 mm |
| Pre Install Clearance Max | 0.0039 in0.100 mm |
| No. | Weight | Bearing Number | Housing Construction | UPC Code | Shaft Size Type | Full Timken Part Number |
|---|---|---|---|---|---|---|
| 2215SK | 75 | 2215SK | 1.600 | 1.5 | 5300 | 4300 |
| 23926EK | 130 | 1.5 | 2.87 | 3450 | 2700 | 180 |
| 23240EMBW33C4 | 2.01 | 3.06 | 2.06 | 1000 | 920 | 3.00 mm0.120 in |
| 7334CDB FY | 170 | 1.5 | 4.0 | 3000 | 2200 | 7334CDBFY |
| DVF22K315S | 3.80 | 2.55 | 53.0 lb24.0 Kg | 0.0040 in0.102 mm | 3-15/16 in | Imperial |
| NJ215ET7 & | HPS | 75 | 1.5 | 1.5 | 1.5 | 1.5 |
| NK73/35A | 0.6 | NK73/35A | 5800 | 73 | 90 | 27.10 |
| K285x300x50 | K285x300x50 | 1.97 | 1400 | 950 | 285 | 300 |
| NN3038 | CD | 190 | 2.1 | 2300 | 1900 | 290 |
| 23232EMW33 | 2.01 | 3.06 | 2.06 | 1400 | 1200 | 2.5 mm0.100 in |
