Double Concentric Solid-Block Housed Units
- Solid Block/Spherical Roller Bearing Housed Units-Double Concentric Four-Bolt Pillow Block
- QAAPX13A065S

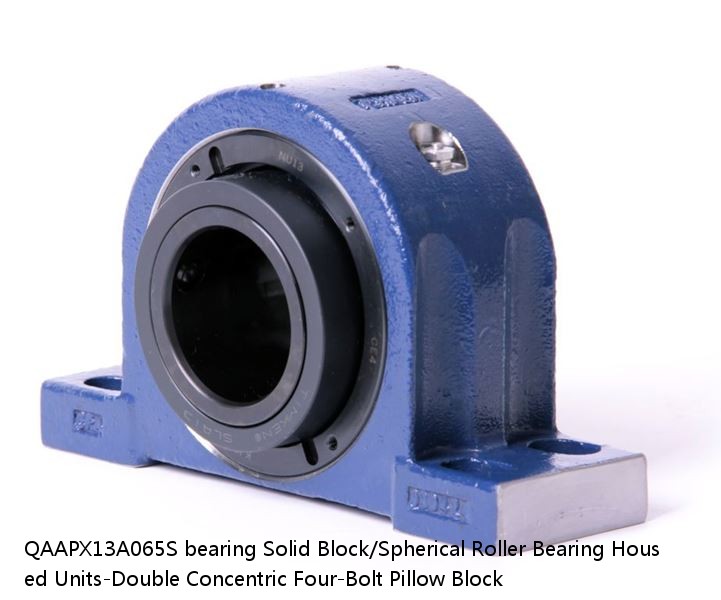

QAAPX13A065S Bearing | Solid Block/Spherical Roller Bearing Housed Units-Double Concentric Four-Bolt Pillow Block
QAAPX13A065S interchange timken QAAPX13A065S | |
QAAPX13A065S cross reference timken QAAPX13A065S | |
QAAPX13A065S Equivalent bearing interchange guide: | |
Price: | enquiry |
Model Number: | QAAPX13A065S |
d: | 4.15 |
D: | 2.79 |
B: | 29 lb13.20 Kg |
r(min): | 0.0015 in0.038 mm |
r1(min): | 65 mm |
Width: | Metric |
Size: | 0.0016 in0.040 mm |
Weight: | 0.0026 in0.065 mm |
Bearing Number: | 3200 rpm |
Housing Construction: | 1800 rpm |
UPC Code: | 1500 rpm |
Shaft Size Type: | Double Concentric |
Engineering Group | Mounted Bearing |
Bearing Number | 22213 |
Shaft Size | 65 mm |
Shaft Size Type | Metric |
Full Timken Part Number | QAAPX13A065SB QAAPX13A065SC QAAPX13A065SEB QAAPX13A065SEC QAAPX13A065SEM QAAPX13A065SEN QAAPX13A065SEO QAAPX13A065SET QAAPX13A065SM QAAPX13A065SN QAAPX13A065SO QAAPX13A065ST |
Locking Style | Double Concentric |
Weight | 29 lb13.20 Kg |
Housing Construction | Four-Bolt Pillow Block |
UPC Code | 0883450005449 0883450005517 0883450005548 0883450005616 0883450005647 0883450005715 0883450005746 0883450005814 0883450005845 0883450005913 0883450267564 0883450267786 |
Dimension A | 3.00 in76.2 mm |
Dimension B | 6.05 in153.7 mm |
Dimension C | 3.81 in96.8 mm |
Dimension D Max | 9.56 in242.8 mm |
Dimension D Min | 6.94 in176.3 mm |
Dimension E | 2.63 in66.8 mm |
Dimension F | 11.25 in285.8 mm |
Dimension G | 3.880 in98.60 mm |
Dimension H | 1.22 in31.0 mm |
Dimension J (Bolt Size) | 0.625 in16 mm |
Dimension L | 4.09 in103.9 mm |
Dimension M | 2.15 in54.6 mm |
Dimension R | 0.70 in17.8 mm |
Dimension S | 4.3 in109.2 mm |
C0 - Static Load | 48600 lb216 kN |
C - Dynamic Load (Basic) | 46400 lb206 kN |
e - Geometry Factor | 0.24 |
Y1 - Geometry Factor | 2.79 |
Y2 - Geometry Factor | 4.15 |
Oil Lubrication - M/N Seal | 1800 rpm |
Oil Lubrication - T Seal | 3200 rpm |
Oil Lubrication - B/C/O Seal | 1500 rpm |
Grease Lubrication - M/N Seal | 1800 rpm |
Grease Lubrication - T Seal | 2800 rpm |
Grease Lubrication - B/C/O Seal | 1500 rpm |
Float | 0.083 in2.108 mm |
Shaft Tolerance | 0.0015 in0.038 mm |
Eng Internal Radial Clearance - Min | 0.0016 |
Eng Internal Radial Clearance - Max | 0.0026 |
Pre Install Clearance Min | 0.0016 in0.040 mm |
Pre Install Clearance Max | 0.0026 in0.065 mm |
No. | Weight | Bearing Number | Housing Construction | UPC Code | Shaft Size Type | Full Timken Part Number |
---|---|---|---|---|---|---|
524220 | CT1 | 524220 | 889.000 | 12.700 | 20.650 | - |
6220/RS/C3 | 3.2 Kg | 2.100 mm | 34.000 mm | 180.000 mm | 6500 rpm | 4500 rpm |
CF 16UUR | 58.50 | 16 | - | 3 | 6.0 | 26.0 |
22330EW33 | 150 | 4.0 | 43.30 | 2100 | 1500 | 320 |
L68149/11 | 15.875 | 34.980 | 3.50 | L68149/11 | 8500 | 6400 |
DCS502B-3003-51-21P0000 | - | - | DCS502B-3003-51-21P0000 | - | - | A6 |
AR 86 | +0.22/0 | 2.0 | 2.8 | AR 86 | 88.6 | 87.8 |
HJ-486024 | 2.03 | HJ-486024 | 5600 | 76.200 | 95.250 | 35.50 |
QAAMH18A304S | 4.31 | 2.90 | 36 lb16.30 Kg | 0883450413442 0883450413459 0883450413466 0883450413473 0883450413480 0883450413497 0883450413503 08 | 1 1/4-7UNC | 0.0030 in0.076 mm |
SNW-144X7-15/16 | HMVC 44E | N 44 | SNW-144X7-15/16 | 279.527 | 201.613 | 220.000 |
