Single V-Lock Solid-Block Housed Units
  • Solid Block/Spherical Roller Bearing Housed Units-Single V-Lock Cartridge Block
  • QVMC22V100S

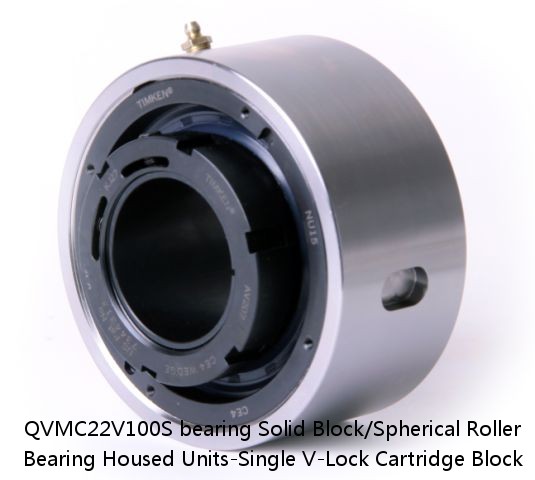

QVMC22V100S Bearing | Solid Block/Spherical Roller Bearing Housed Units-Single V-Lock Cartridge Block

QVMC22V100S interchange timken QVMC22V100S
QVMC22V100S cross reference timken QVMC22V100S
QVMC22V100S Equivalent bearing interchange guide:
Price: enquiry
Model Number: QVMC22V100S
d: 4.06
D: 2.73
B: 40.0 lb18.1 Kg
r(min): 0883450047029 0883450047098 0883450208024 0883450208178 0883450220446 0883450220590 0883450232876 08
r1(min): 0.0030 in0.076 mm
Width: 100 mm
Size: Metric
Weight: 0.0053 in0.135 mm
Bearing Number: 0.0067 in0.170 mm
Housing Construction: 1700 rpm
UPC Code: 900 rpm
Shaft Size Type: 600 rpm
Engineering GroupMounted Bearing
Bearing Number22222
Shaft Size  100 mm
Shaft Size TypeMetric
Full Timken Part NumberQVMC22V100SB QVMC22V100SC QVMC22V100SEB QVMC22V100SEC QVMC22V100SEM QVMC22V100SEN QVMC22V100SEO QVMC22V100SET QVMC22V100SM QVMC22V100SN QVMC22V100SO QVMC22V100ST
Locking StyleSingle V-Lock
Weight40.0 lb18.1 Kg
Housing ConstructionCartridge
UPC Code0883450047029 0883450047098 0883450208024 0883450208178 0883450220446 0883450220590 0883450232876 0883450233026 0883450241618 0883450241762 0883450246576 0883450246729
Dimension A0.781 in19.80 mm
Dimension B1.281 in32.5 mm
Dimension C5.5 in139.7 mm
Dimension D0.313 in8.0 mm
Dimension F8.750 in222.30 mm
Dimension G3.850 in97.80 mm
Dimension L Exp4.53 in115.1 mm
Dimension L Fix4.45 in113.0 mm
Dimension RV0.32 in8.1 mm
Dimension SV4.13 in104.9 mm
C0 - Static Load147000 lb653 kN
C - Dynamic Load (Basic)125000 lb555 kN
e - Geometry Factor0.24
Y1 - Geometry Factor2.73
Y2 - Geometry Factor4.06
Oil Lubrication - M/N Seal900 rpm
Oil Lubrication - T Seal1700 rpm
Oil Lubrication - B/C/O Seal600 rpm
Grease Lubrication - M/N Seal900 rpm
Grease Lubrication - T Seal1200 rpm
Grease Lubrication - B/C/O Seal600 rpm
Float0.083 in2.108 mm
Shaft Tolerance0.0030 in0.076 mm
Eng Internal Radial Clearance - Min0.0053
Eng Internal Radial Clearance - Max0.0067
Pre Install Clearance Min0.0053 in0.135 mm
Pre Install Clearance Max0.0067 in0.170 mm



No. Weight  Bearing Number  Housing Construction  UPC Code  Shaft Size Type  Full Timken Part Number
AOHX30/500G40.00 KgTr530x61:1215 mmG1/4209.00 mm
22312EJW33C31.932.941.9822312CJW33C347004000
HK6020HK602052006068.010.9035.60
BNF2808-2.5RRG1+88LC088.000BNF2808-2.5Overall thread lenght is added to the both ends of the stroke 10mm.There is the groove on both ends of the stroke. - -
X32230M/Y32230M77 mm3.0315 in32230M3.05 mm0.12 in4.060 mm0.16 in579.4METRIC
UCHA213JA-PT1/865Normal-duty(2)UCHA213J - -
16009450.6160090.17110009200
7034CDF FY1701.12.1380029007034CDFFY
32209/DF49.50008000530022.000196.000169.000
4T-12175/1230344.4501.51.54T-12175/123030,3176.992
