Single Concentric Solid-Block Housed Units
  • Solid Block/Spherical Roller Bearing Housed Units-Single Concentric Two-Bolt Pillow Block
  • QAPL20A100S

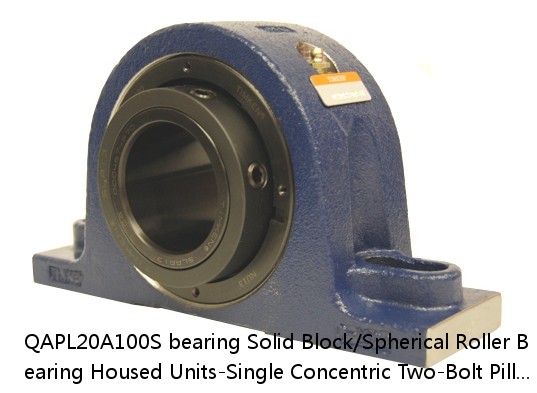

QAPL20A100S Bearing | Solid Block/Spherical Roller Bearing Housed Units-Single Concentric Two-Bolt Pillow Block

QAPL20A100S interchange timken QAPL20A100S
QAPL20A100S cross reference timken QAPL20A100S
QAPL20A100S Equivalent bearing interchange guide:
Price: enquiry
Model Number: QAPL20A100S
d: 4.24
D: 2.85
B: 59.0 lb26.8 Kg
r(min): 0883450298803 0883450298810 0883450298827 0883450298834 0883450298841 0883450298858 0883450298865 08
r1(min): 0.0030 in0.076 mm
Width: 100 mm
Size: Metric
Weight: 0.0030 in0.075 mm
Bearing Number: 0.0047 in0.120 mm
Housing Construction: 2000 rpm
UPC Code: 1200 rpm
Shaft Size Type: 900 rpm
Engineering GroupMounted Bearing
Bearing Number22220
Shaft Size  100 mm
Shaft Size TypeMetric
Full Timken Part NumberQAPL20A100SB QAPL20A100SC QAPL20A100SEB QAPL20A100SEC QAPL20A100SEM QAPL20A100SEN QAPL20A100SEO QAPL20A100SET QAPL20A100SM QAPL20A100SN QAPL20A100SO QAPL20A100ST
Locking StyleSingle Concentric
Weight59.0 lb26.8 Kg
Housing ConstructionTwo-Bolt Pillow Block
UPC Code0883450298803 0883450298810 0883450298827 0883450298834 0883450298841 0883450298858 0883450298865 0883450298872 0883450298889 0883450298896 0883450298902 0883450298919
Dimension A4.25 in108.0 mm
Dimension B8.38 in212.9 mm
Dimension C6.00 in152.4 mm
Dimension D Max12.60 in320.0 mm
Dimension D Min10.04 in255.0 mm
Dimension F14.25 in362.0 mm
Dimension G3.730 in94.70 mm
Dimension H2.13 in54.1 mm
Dimension J (Bolt Size)1.000 in24 mm
Dimension KA1.63 in41.4 mm
Dimension L4.84 in122.9 mm
Dimension M2.97 in75.4 mm
Dimension RA0.24 in6.1 mm
Dimension SA4.60 in116.8 mm
C0 - Static Load113000 lb502 kN
C - Dynamic Load (Basic)97700 lb435 kN
e - Geometry Factor0.24
Y1 - Geometry Factor2.85
Y2 - Geometry Factor4.24
Oil Lubrication - M/N Seal1200 rpm
Oil Lubrication - T Seal2000 rpm
Oil Lubrication - B/C/O Seal900 rpm
Grease Lubrication - M/N Seal1200 rpm
Grease Lubrication - T Seal1600 rpm
Grease Lubrication - B/C/O Seal900 rpm
Float0.083 in2.108 mm
Shaft Tolerance0.0030 in0.076 mm
Eng Internal Radial Clearance - Min0.0030
Eng Internal Radial Clearance - Max0.0047
Pre Install Clearance Min0.0030 in0.075 mm
Pre Install Clearance Max0.0047 in0.120 mm



No. Weight  Bearing Number  Housing Construction  UPC Code  Shaft Size Type  Full Timken Part Number
SV22822228BM202332500420
CR 32VBR162.022.225-4.7624.76237.306
2MV9121WI2.00 mm0.079 in2.00 mm0.079 in15800 rpm7900 rpm16.668750 mm21/32 inMETRIC
E/4BF/TRB/3 3/16/ECC2.071.710.70.8752 lb0883450503679
UKFL215+HE2315XA-R1/8UKFL215+HE2315XNormal-duty(2) - 2 1/2 -
VTU 1 1/27.03 lb3.19 Kg141.4 mm5.567 in120.6 mm4.748 in4460 lbf19800 N44.4 mm1.748 in17.5 mm0.689 in
4T-323/32C29.75321.51.54T-323/32C0.66
C 4020 V1400 - - 100.00058.500530.000
NSR50TBC1UU+780L (G30g30, A-PT1/8)UU- With end seals (on both ends)No connectionNSR50TBC30.00A-PT1/8 -
YCJM2 1/215.04 lb6.82 Kg187.3 mm7.374 in187.3 mm7.374 in9890 lbf44000 N2 1/2 in63.5 mmMedium-Duty
