Double V-Lock Solid-Block Housed Units
- Solid Block/Spherical Roller Bearing Housed Units-Double V-Lock Two-Bolt Pillow Block
- QVVPN17V215S

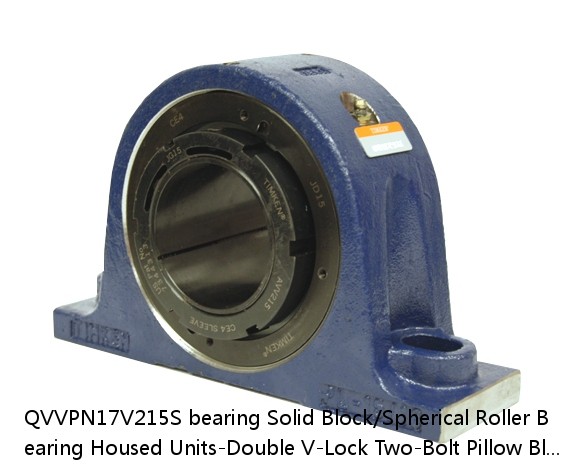

QVVPN17V215S Bearing | Solid Block/Spherical Roller Bearing Housed Units-Double V-Lock Two-Bolt Pillow Block
QVVPN17V215S PDF download| QVVPN17V215S interchange timken QVVPN17V215S | |
| QVVPN17V215S cross reference timken QVVPN17V215S | |
| QVVPN17V215S Equivalent bearing interchange guide： | |
| Price： | enquiry |
| Model Number： | QVVPN17V215S |
| d: | 4.57 |
| D: | 3.07 |
| B: | 33 lb15.00 Kg |
| r(min): | 0883450079976 0883450079983 0883450208246 0883450208383 0883450220668 0883450220811 0883450233095 08 |
| r1(min): | 0.0020 in0.051 mm |
| Width: | 2-15/16 in |
| Size: | Imperial |
| Weight： | 0.0037 in0.095 mm |
| Bearing Number： | 0.0047 in0.120 mm |
| Housing Construction： | 2400 rpm |
| UPC Code： | 1400 rpm |
| Shaft Size Type： | 1100 rpm |
| Engineering Group | Mounted Bearing |
| Bearing Number | 22217 |
| Shaft Size | 2-15/16 in |
| Shaft Size Type | Imperial |
| Full Timken Part Number | QVVPN17V215SB QVVPN17V215SC QVVPN17V215SEB QVVPN17V215SEC QVVPN17V215SEM QVVPN17V215SEN QVVPN17V215SEO QVVPN17V215SET QVVPN17V215SM QVVPN17V215SN QVVPN17V215SO QVVPN17V215ST |
| Locking Style | Double V-Lock |
| Weight | 33 lb15.00 Kg |
| Housing Construction | Two-Bolt Pillow Block |
| UPC Code | 0883450079976 0883450079983 0883450208246 0883450208383 0883450220668 0883450220811 0883450233095 0883450233248 0883450241830 0883450241984 0883450246798 0883450246941 |
| Dimension A | 3.75 in95.3 mm |
| Dimension B | 7.32 in185.9 mm |
| Dimension C | 4.19 in106.4 mm |
| Dimension D Max | 11.00 in279.4 mm |
| Dimension D Min | 9.50 in241.3 mm |
| Dimension F | 12.63 in320.8 mm |
| Dimension G | 3.0000 in76.200 mm |
| Dimension H | 1.33 in33.8 mm |
| Dimension J (Bolt Size) | 0.750 in20 mm |
| Dimension L | 3.59 in91.2 mm |
| Dimension RVV | 0.59 in15.0 mm |
| Dimension SVV | 4.18 in106.2 mm |
| C - Dynamic Load (Basic) | 66900 lb297 kN |
| C0 - Static Load | 71900 lb320 kN |
| e - Geometry Factor | 0.22 |
| Y1 - Geometry Factor | 3.07 |
| Y2 - Geometry Factor | 4.57 |
| Oil Lubrication - M/N Seal | 1400 rpm |
| Oil Lubrication - T Seal | 2400 rpm |
| Oil Lubrication - B/C/O Seal | 1100 rpm |
| Grease Lubrication - M/N Seal | 1400 rpm |
| Grease Lubrication - T Seal | 2000 rpm |
| Grease Lubrication - B/C/O Seal | 1100 rpm |
| Float | 0.083 in2.108 mm |
| Shaft Tolerance | 0.0020 in0.051 mm |
| Eng Internal Radial Clearance - Min | 0.0037 |
| Eng Internal Radial Clearance - Max | 0.0047 |
| Pre Install Clearance Min | 0.0037 in0.095 mm |
| Pre Install Clearance Max | 0.0047 in0.120 mm |
| No. | Weight | Bearing Number | Housing Construction | UPC Code | Shaft Size Type | Full Timken Part Number |
|---|---|---|---|---|---|---|
| 23996YMBW507C08C3 | 3.9 | 5.94 | 3.99 | 640 | 550 | 4.000 mm0.160 in |
| 63202RS | 100 | 3.0 | 2100 | 63202RS | 215 | 10.9 |
| QAAFX13A065S | 4.00 | 2.69 | 19 lb8.6 Kg | 0883450135535 0883450135542 0883450135559 0883450135566 0883450135573 0883450135580 0883450135597 08 | 0.0015 in0.038 mm | 65 mm |
| 23238EW33 | 190 | 4.0 | 48.00 | 1500 | 1200 | 340 |
| SAKB 16 F | 34.500 | 21.400 | 43.000 | 16.000 | 15.500 | 21.000 |
| NUP2217E | 85 | 2.0 | 2.0 | NUP2217E | 2.680 | 4 300 |
| 22340EMD1 | 22340EMD1 | 94.600 | 21.0 | 200 | 5.0 | 1200 |
| HE3034 | 4.65 Kg | MBL34 | KML34 | 101.00 mm | M170x3 | 200 mm |
| NUP2228R | 140 | 3.0 | 3.0 | 2900 | 2200 | NUP2228R |
| 6020/N | 1.25 Kg | 1.500 mm | 24.000 mm | 150.000 mm | 6900 rpm | 4800 rpm |
