Tapered Adapter Solid-Block Housed Units
- Solid Block/Spherical Roller Bearing Housed Units-Tapered Adapter Four Bolt Square Flange Block
- TAFC22K400S

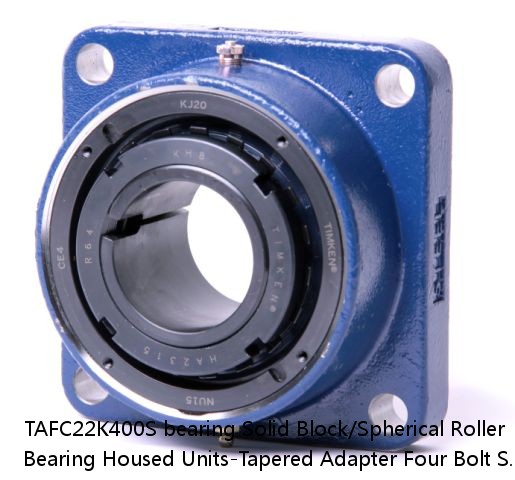

TAFC22K400S Bearing | Solid Block/Spherical Roller Bearing Housed Units-Tapered Adapter Four Bolt Square Flange Block
TAFC22K400S PDF download| TAFC22K400S interchange timken TAFC22K400S | |
| TAFC22K400S cross reference timken TAFC22K400S | |
| TAFC22K400S Equivalent bearing interchange guide： | |
| Price： | enquiry |
| Model Number： | TAFC22K400S |
| d: | 3.80 |
| D: | 2.55 |
| B: | 60 lb27.2 Kg |
| r(min): | 0.0040 in0.102 mm |
| r1(min): | 4 in |
| Width: | Imperial |
| Size: | 0.0053 in0.135 mm |
| Weight： | 0.0067 in0.170 mm |
| Bearing Number： | 1700 rpm |
| Housing Construction： | 900 rpm |
| UPC Code： | 600 rpm |
| Shaft Size Type： | Tapered Adapter |
| Engineering Group | Mounted Bearing |
| Bearing Number | 22222 |
| Shaft Size | 4 in |
| Shaft Size Type | Imperial |
| Full Timken Part Number | TAFC22K400SB TAFC22K400SC TAFC22K400SEB TAFC22K400SEC TAFC22K400SEM TAFC22K400SEN TAFC22K400SEO TAFC22K400SET TAFC22K400SM TAFC22K400SN TAFC22K400SO TAFC22K400ST |
| Locking Style | Tapered Adapter |
| Weight | 60 lb27.2 Kg |
| Housing Construction | Four-Bolt Square Flange |
| UPC Code | 0883450122078 0883450122085 0883450122108 0883450122115 0883450122122 0883450122139 0883450122146 0883450122153 0883450199803 0883450200004 0883450277440 0883450277648 |
| Dimension BC | 12.2 in309.9 mm |
| Dimension A | 14.45 in367 mm |
| Dimension C | 5.71 in145 mm |
| Dimension D | 10.039 in255.00 mm |
| Dimension E | 8.63 in219.2 mm |
| Dimension F | 10.8 in274.3 mm |
| Dimension H | 1.04 in26.4 mm |
| Dimension J (Bolt Size) | 0.75 in20 mm |
| Dimension G | 1.75 in44.45 mm |
| Dimension L | 2.48 in63.0 mm |
| Dimension M | 2.22 in56.4 mm |
| Dimension N | 3.980 in101.10 mm |
| Dimension S | 4.13 in104.9 mm |
| C0 - Static Load | 147000 lb653 kN |
| C - Dynamic Load (Basic) | 125000 lb555 kN |
| e - Geometry Factor | 0.26 |
| Y1 - Geometry Factor | 2.55 |
| Y2 - Geometry Factor | 3.80 |
| Oil Lubrication - M/N Seal | 900 rpm |
| Oil Lubrication - T Seal | 1700 rpm |
| Oil Lubrication - B/C/O Seal | 600 rpm |
| Grease Lubrication - M/N Seal | 900 rpm |
| Grease Lubrication - T Seal | 1200 rpm |
| Grease Lubrication - B/C/O Seal | 600 rpm |
| Float | 0.083 in2.108 mm |
| Shaft Tolerance | 0.0040 in0.102 mm |
| Pre Install Clearance Min | 0.0053 in0.135 mm |
| Pre Install Clearance Max | 0.0067 in0.170 mm |
| Int Radial Clearance Reduction Min | 0.0020 in0.051 mm |
| Int Radial Clearance Reduction Max | 0.0028 in0.071 mm |
| Adapter Sleeve Axial Movement Min | 0.03 in0.8 mm |
| No. | Weight | Bearing Number | Housing Construction | UPC Code | Shaft Size Type | Full Timken Part Number |
|---|---|---|---|---|---|---|
| 23136KEJW33C3 | 2.27 | 3.45 | 2.32 | 23136KCJW33C3 | 1500 | 1300 |
| VH300118ELN1K#Z--L+(19) | VH30EL | 19.0 | - | - | - | - |
| 22226EXQ | 130 | 3.0 | 11.60 | 2800 | 2400 | 230 |
| 23240A2X | 200 | 4.0 | 57.00 | 1900 | 1500 | 360 |
| 23040EMKD1 | 23040EMKD1 | 22.100 | 15.0 | 200 | 2.1 | 1800 |
| LCJT 1 1/4 | 3.183 lb1.444 Kg | 155.6 mm6.126 in | 92.1 mm3.626 in | 3440 lbf15300 N | 1 1/4 in31.8 mm | Industrial |
| QVF14V060S | 4.22 | 2.83 | 17.0 lb7.7 Kg | 0883450039291 0883450039321 0883450107051 0883450178327 0883450210676 0883450211055 0883450223096 08 | 0.0015 in0.038 mm | 60 mm |
| 6315/ZZ/C3 | 3.0 Kg | 2.100 mm | 37.000 mm | 160.000 mm | 7800 rpm | 5400 rpm |
| QVPK22V312S | 4.06 | 2.73 | 87 lb39.5 Kg | 0883450149327 0883450149419 0883450153775 0883450153867 0883450176866 0883450176958 0883450186810 08 | 0.0030 in0.076 mm | 3-3/4 in |
| ARN/26/SK/13022/AN/22/W/22 | -0.13 mm-0.005 in | 1:12 | 5.00 lb2.27 Kg | SK-13022 | 222K | 185.72 mm7.312 in |
