Double V-Lock Solid-Block Housed Units
- Solid Block/Spherical Roller Bearing Housed Units-Double V-Lock Take-Up Block
- QVVTU14V207S

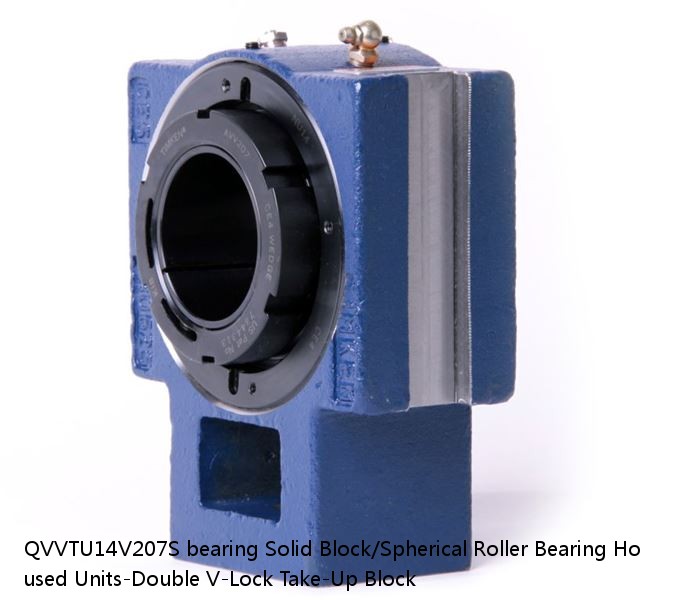

QVVTU14V207S Bearing | Solid Block/Spherical Roller Bearing Housed Units-Double V-Lock Take-Up Block
QVVTU14V207S PDF download| QVVTU14V207S interchange timken QVVTU14V207S | |
| QVVTU14V207S cross reference timken QVVTU14V207S | |
| QVVTU14V207S Equivalent bearing interchange guide： | |
| Price： | enquiry |
| Model Number： | QVVTU14V207S |
| d: | 4.32 |
| D: | 2.90 |
| B: | 17.0 lb7.7 Kg |
| r(min): | 0883450376204 0883450376211 0883450376228 0883450376235 0883450376242 0883450376259 0883450376266 08 |
| r1(min): | 0.0015 in0.038 mm |
| Width: | 2-7/16 in |
| Size: | Imperial |
| Weight： | 0.075 mm0.0030 in |
| Bearing Number： | 0.094 mm0.0037 in |
| Housing Construction： | 3050 rpm |
| UPC Code： | 1700 rpm |
| Shaft Size Type： | 1400 rpm |
| Engineering Group | Mounted Bearing |
| Bearing Number | 22214 |
| Shaft Size | 2-7/16 in |
| Shaft Size Type | Imperial |
| Full Timken Part Number | QVVTU14V207SB QVVTU14V207SC QVVTU14V207SEB QVVTU14V207SEC QVVTU14V207SEM QVVTU14V207SEN QVVTU14V207SEO QVVTU14V207SET QVVTU14V207SM QVVTU14V207SN QVVTU14V207SO QVVTU14V207ST |
| Locking Style | Double V-Lock |
| Weight | 17.0 lb7.7 Kg |
| Housing Construction | Take-Up |
| UPC Code | 0883450376204 0883450376211 0883450376228 0883450376235 0883450376242 0883450376259 0883450376266 0883450376273 0883450376280 0883450376297 0883450376303 0883450376310 |
| Dimension A | 2.75 in69.9 mm |
| Dimension C | 0.88 in22.4 mm |
| Dimension D | 5.88 in149.4 mm |
| Dimension E | 5.13 in130.3 mm |
| Dimension F | 1.31 in33.3 mm |
| Dimension G | 1.31 in33.3 mm |
| Dimension J | 3.75 in95.3 mm |
| Dimension L | 7.63 in193.8 mm |
| Dimension N | 3.48 in88.4 mm |
| Dimension P | 4.75 in120.7 mm |
| Dimension RVV | 0.61 in15.5 mm |
| Dimension S | 1.060 in26.90 mm |
| Dimension T | 3.99 in101.3 mm |
| Dimension TVV | 4.09 in103.9 mm |
| C - Dynamic Load (Basic) | 47800 lb213 kN |
| C0 - Static Load | 52000 lb231 kN |
| e - Geometry Factor | 0.23 |
| Y1 - Geometry Factor | 2.90 |
| Y2 - Geometry Factor | 4.32 |
| Oil Lubrication - M/N Seal | 1700 rpm |
| Oil Lubrication - T Seal | 3050 rpm |
| Oil Lubrication - B/C/O Seal | 1400 rpm |
| Grease Lubrication - M/N Seal | 1700 rpm |
| Grease Lubrication - T Seal | 2600 rpm |
| Grease Lubrication - B/C/O Seal | 1400 rpm |
| Float | 0.08 in2.11 mm |
| Shaft Tolerance | 0.0015 in0.038 mm |
| Pre Install Clearance Min | 0.075 mm0.0030 in |
| Pre Install Clearance Max | 0.094 mm0.0037 in |
| No. | Weight | Bearing Number | Housing Construction | UPC Code | Shaft Size Type | Full Timken Part Number |
|---|---|---|---|---|---|---|
| EE291176D/291749 | 4.3749 in111.122 mm | 290000 | 0.310 in7.90 mm | Spacer shows standard nominal .01 radii, actual bearing may vary | Imperial | 17.5 in444.5 mm |
| UCSF212-39JEH1S6 | A-R1/8 N12 | Normal-duty (2) | UCSF212-39JEH1S6 | Standard | 2 7/16 | - |
| B-108 | 0.010 / 0.022 | 0.6250 / 0.8125 / 0.500 | 5/8 | 15.875 / 0.6250 | 20.638 / 0.8125 | 3.00 |
| 23056EMBW507C08C2 | 2.86 | 4.35 | 2.92 | 1300 | 1100 | 3.00 mm0.120 in |
| 3MMVC9322HX | 1.50 mm0.059 in | 1.50 mm0.059 in | 22800 rpm | 11400 rpm | 13.49380 mm17/32 in | METRIC |
| TAPG13K060S | 4.15 | 2.79 | 25 lb11.3 Kg | 0883450126670 0883450126687 0883450126700 0883450126717 0883450126724 0883450126731 0883450126748 08 | 0.0030 in0.076 mm | 60 mm |
| 23134EXQ | 170 | 2.1 | 21.60 | 2300 | 1800 | 280 |
| E/TTU/TRB/55MM | 2.87 | 2.38 | 0.7 | 0.87 | 16 lb | 053893778549 |
| QVVPK20V090S | 4.24 | 2.85 | 70.0 lb31.8 Kg | 0883450076944 0883450077019 0883450209564 0883450209717 0883450221993 0883450222143 0883450234481 08 | 0.0030 in0.076 mm | 90 mm |
| 7217BDT FY | 85 | 1.0 | 2.0 | 4000 | 3000 | 7217BDTFY |
