Single Concentric Solid-Block Housed Units
- Solid Block/Spherical Roller Bearing Housed Units-Single Concentric Take-Up Block
- QATU10A115S

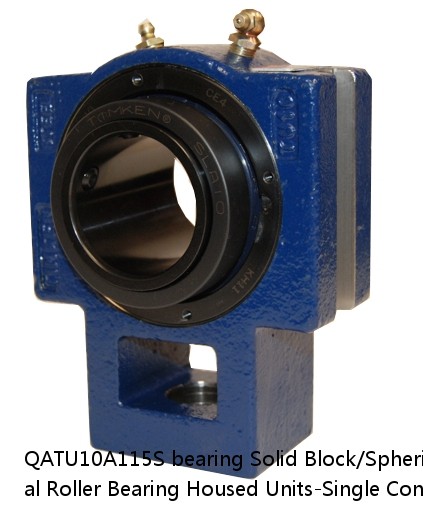

QATU10A115S Bearing | Solid Block/Spherical Roller Bearing Housed Units-Single Concentric Take-Up Block
QATU10A115S PDF download| QATU10A115S interchange timken QATU10A115S | |
| QATU10A115S cross reference timken QATU10A115S | |
| QATU10A115S Equivalent bearing interchange guide： | |
| Price： | enquiry |
| Model Number： | QATU10A115S |
| d: | 4.23 |
| D: | 2.84 |
| B: | 17.0 lb7.7 Kg |
| r(min): | 0883450049702 0883450049719 0883450049733 0883450049740 0883450049757 0883450049764 0883450049771 08 |
| r1(min): | 0.0015 in0.038 mm |
| Width: | 1-15/16 in |
| Size: | Imperial |
| Weight： | 0.040 mm0.0016 in |
| Bearing Number： | 0.065 mm0.0026 in |
| Housing Construction： | 4200 rpm |
| UPC Code： | 2400 rpm |
| Shaft Size Type： | 1800 rpm |
| Engineering Group | Mounted Bearing |
| Bearing Number | 22210 |
| Shaft Size | 1-15/16 in |
| Shaft Size Type | Imperial |
| Full Timken Part Number | QATU10A115SB QATU10A115SC QATU10A115SEB QATU10A115SEC QATU10A115SEM QATU10A115SEN QATU10A115SEO QATU10A115SET QATU10A115SM QATU10A115SN QATU10A115SO QATU10A115ST QATU10A115STHT QATU10A115STNG |
| Locking Style | Single Concentric |
| Weight | 17.0 lb7.7 Kg |
| Housing Construction | Take-Up |
| UPC Code | 0883450049702 0883450049719 0883450049733 0883450049740 0883450049757 0883450049764 0883450049771 0883450049788 0883450195157 0883450195317 0883450272322 0883450272490 0883450434027 0883450476171 |
| Dimension A | 2.13 in54.1 mm |
| Dimension C | 0.75 in19.1 mm |
| Dimension D | 4.75 in120.7 mm |
| Dimension E | 4.00 in101.6 mm |
| Dimension F | 1.06 in26.9 mm |
| Dimension G | 1.06 in26.9 mm |
| Dimension J | 2.88 in73.2 mm |
| Dimension L | 6.04 in153.4 mm |
| Dimension KA | 1 in25.4 mm |
| Dimension M | 1.87 in47.5 mm |
| Dimension N | 2.98 in75.7 mm |
| Dimension P | 3.50 in88.9 mm |
| Dimension S | 0.690 in17.50 mm |
| C0 - Static Load | 26600 lb118 kN |
| C - Dynamic Load (Basic) | 26300 lb117 kN |
| e - Geometry Factor | 0.24 |
| Y1 - Geometry Factor | 2.84 |
| Y2 - Geometry Factor | 4.23 |
| Oil Lubrication - M/N Seal | 2400 rpm |
| Oil Lubrication - T Seal | 4200 rpm |
| Oil Lubrication - B/C/O Seal | 1800 rpm |
| Grease Lubrication - M/N Seal | 2400 rpm |
| Grease Lubrication - T Seal | 3550 rpm |
| Grease Lubrication - B/C/O Seal | 1800 rpm |
| Float | 0.050 in1.270 mm |
| Shaft Tolerance | 0.0015 in0.038 mm |
| Eng Internal Radial Clearance - Min | 0.0016 |
| Eng Internal Radial Clearance - Max | 0.0026 |
| Pre Install Clearance Min | 0.040 mm0.0016 in |
| Pre Install Clearance Max | 0.065 mm0.0026 in |
| No. | Weight | Bearing Number | Housing Construction | UPC Code | Shaft Size Type | Full Timken Part Number |
|---|---|---|---|---|---|---|
| XAA32010XM/Y32010XM | 20.000 mm0.7874 in | 32010XM | 1.02 mm0.04 in | 2.290 mm0.09 in | 34 | METRIC |
| 6220/Z/C3 | 3.2 Kg | 2.100 mm | 34.000 mm | 180.000 mm | 6500 rpm | 4500 rpm |
| 7410 BGAM | 6700 | 2.7 | 64 | 95.6 | 7410 BGAM | 50.000 |
| 91389 | 91389 | 895.000 | 899.770 | 50.000 | - | - |
| 241/560KYMDW879 | 1.83 | 2.78 | 1.87 | 170 | 160 | 6.000 mm0.240 in |
| 7030 FY | 150 | 1.100 | 2.100 | 3800 | 3000 | 7030FY |
| 24138EJW33C2 | 1.81 | 2.76 | 1.85 | 24138CJW33C2 | 880 | 810 |
| LY200080ELN1K##---+(10) | LY20EL | 10.0 | - | - | - | - |
| 29472R | 170 | 360 | 7.5 | 29472R | 450 | 610 |
| 23234KEMW33 | 2.03 | 3.09 | 2.08 | 1200 | 1100 | 3.00 mm0.120 in |
