Tapered Adapter Solid-Block Housed Units

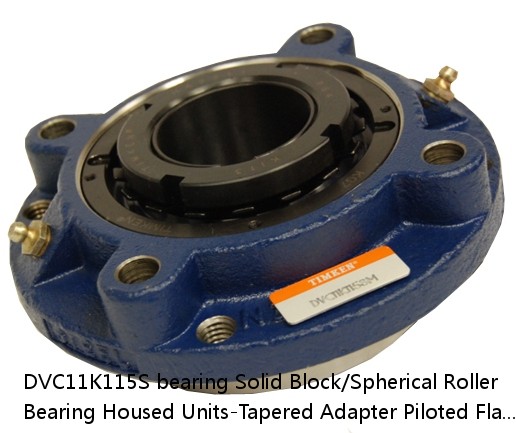

DVC11K115S Bearing | Solid Block/Spherical Roller Bearing Housed Units-Tapered Adapter Piloted Flange Cartridge

DVC11K115S interchange timken DVC11K115S
DVC11K115S cross reference timken DVC11K115S
DVC11K115S Equivalent bearing interchange guide：
Price：	enquiry
Model Number：	DVC11K115S
d:	4.40
D:	2.95
B:	11.0 lb5.0 Kg
r(min):	0883450003629 0883450003636 0883450003650 0883450003667 0883450003674 0883450003681 0883450003698 08
r1(min):	0.0030 in0.076 mm
Width:	1-15/16 in
Size:	Imperial
Weight：	0.0030 in0.075 mm
Bearing Number：	0.0037 in0.094 mm
Housing Construction：	3800 rpm
UPC Code：	2200 rpm
Shaft Size Type：	1800 rpm

Engineering Group	Mounted Bearing
Bearing Number	22211
Shaft Size	1-15/16 in
Shaft Size Type	Imperial
Full Timken Part Number	DVC11K115SB DVC11K115SC DVC11K115SEB DVC11K115SEC DVC11K115SEM DVC11K115SEN DVC11K115SEO DVC11K115SET DVC11K115SM DVC11K115SN DVC11K115SO DVC11K115ST
Locking Style	Tapered Adapter
Weight	11.0 lb5.0 Kg
Housing Construction	Piloted Flange Cartridge
UPC Code	0883450003629 0883450003636 0883450003650 0883450003667 0883450003674 0883450003681 0883450003698 0883450003704 0883450196833 0883450197038 0883450274340 0883450274548
Dimension BC	5.38 in136.7 mm
Dimension C	2.950 in74.90 mm
Dimension E	3.80 in96.5 mm
Dimension F	6.38 in162.1 mm
Dimension H	1.24 in31.5 mm
Dimension I	2.45 in62.2 mm
Dimension J (Bolt Size)	0.438 in10 mm
Dimension L	2.49 in63.2 mm
Dimension M	1.4 in35.6 mm
Dimension R	0.16 in4.1 mm
Dimension S	2.32 in58.9 mm
Dimension G	4.500 in114.3 mm
Dimension N	1.00 in25.4 mm
C0 - Static Load	31900 lb142 kN
C - Dynamic Load (Basic)	31400 lb140 kN
e - Geometry Factor	0.23
Y1 - Geometry Factor	2.95
Y2 - Geometry Factor	4.40
Oil Lubrication - M/N Seal	2200 rpm
Oil Lubrication - T Seal	3800 rpm
Oil Lubrication - B/C/O Seal	1800 rpm
Grease Lubrication - M/N Seal	2200 rpm
Grease Lubrication - T Seal	3200 rpm
Grease Lubrication - B/C/O Seal	1600 rpm
Float	0.050 in1.270 mm
Shaft Tolerance	0.0030 in0.076 mm
Pre Install Clearance Min	0.0030 in0.075 mm
Pre Install Clearance Max	0.0037 in0.094 mm
Int Radial Clearance Reduction Min	0.0012 in0.030 mm
Int Radial Clearance Reduction Max	0.0015 in0.038 mm
Adapter Sleeve Axial Movement Min	0.018 in0.457 mm
Adapter Sleeve Axial Movement Max	0.022 in0.559 mm
Post Install Int Radial Clearance Min	0.0015 in0.038 mm
