Tapered Adapter Solid-Block Housed Units
- Solid Block/Spherical Roller Bearing Housed Units-Tapered Adapter Piloted Flange Cartridge
- DVC13K203S

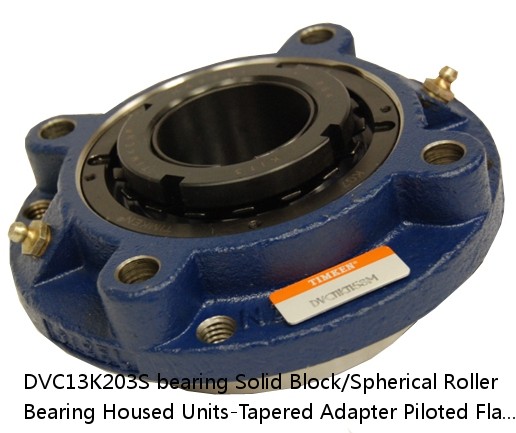

DVC13K203S Bearing | Solid Block/Spherical Roller Bearing Housed Units-Tapered Adapter Piloted Flange Cartridge
DVC13K203S PDF download| DVC13K203S interchange timken DVC13K203S | |
| DVC13K203S cross reference timken DVC13K203S | |
| DVC13K203S Equivalent bearing interchange guide： | |
| Price： | enquiry |
| Model Number： | DVC13K203S |
| d: | 4.15 |
| D: | 2.79 |
| B: | 16 lb7.30 Kg |
| r(min): | 0883450003926 0883450003933 0883450003957 0883450003964 0883450003971 0883450003988 0883450003995 08 |
| r1(min): | 0.0030 in0.076 mm |
| Width: | 2-3/16 in |
| Size: | Imperial |
| Weight： | 0.0030 in0.075 mm |
| Bearing Number： | 0.0037 in0.094 mm |
| Housing Construction： | 3200 rpm |
| UPC Code： | 1800 rpm |
| Shaft Size Type： | 1500 rpm |
| Engineering Group | Mounted Bearing |
| Bearing Number | 22213 |
| Shaft Size | 2-3/16 in |
| Shaft Size Type | Imperial |
| Full Timken Part Number | DVC13K203SB DVC13K203SC DVC13K203SEB DVC13K203SEC DVC13K203SEM DVC13K203SEN DVC13K203SEO DVC13K203SET DVC13K203SM DVC13K203SN DVC13K203SO DVC13K203ST |
| Locking Style | Tapered Adapter |
| Weight | 16 lb7.30 Kg |
| Housing Construction | Piloted Flange Cartridge |
| UPC Code | 0883450003926 0883450003933 0883450003957 0883450003964 0883450003971 0883450003988 0883450003995 0883450004008 0883450196864 0883450197069 0883450274371 0883450274579 |
| Dimension BC | 6.00 in152.4 mm |
| Dimension C | 3.350 in85.10 mm |
| Dimension E | 4.24 in107.7 mm |
| Dimension F | 7.13 in181.1 mm |
| Dimension H | 1.47 in37.3 mm |
| Dimension I | 3.34 in84.8 mm |
| Dimension J (Bolt Size) | 0.5 in12 mm |
| Dimension L | 2.58 in65.5 mm |
| Dimension M | 1.56 in39.6 mm |
| Dimension R | 0.11 in2.8 mm |
| Dimension S | 2.56 in65 mm |
| Dimension G | 5.000 in127.0 mm |
| Dimension N | 1.00 in25.4 mm |
| C0 - Static Load | 48600 lb216 kN |
| C - Dynamic Load (Basic) | 46400 lb206 kN |
| e - Geometry Factor | 0.24 |
| Y1 - Geometry Factor | 2.79 |
| Y2 - Geometry Factor | 4.15 |
| Oil Lubrication - M/N Seal | 1800 rpm |
| Oil Lubrication - T Seal | 3200 rpm |
| Oil Lubrication - B/C/O Seal | 1500 rpm |
| Grease Lubrication - M/N Seal | 1800 rpm |
| Grease Lubrication - T Seal | 2800 rpm |
| Grease Lubrication - B/C/O Seal | 1500 rpm |
| Float | 0.083 in2.108 mm |
| Shaft Tolerance | 0.0030 in0.076 mm |
| Pre Install Clearance Min | 0.0030 in0.075 mm |
| Pre Install Clearance Max | 0.0037 in0.094 mm |
| Int Radial Clearance Reduction Min | 0.0012 in0.030 mm |
| Int Radial Clearance Reduction Max | 0.0015 in0.038 mm |
| Adapter Sleeve Axial Movement Min | 0.018 in0.457 mm |
| Adapter Sleeve Axial Movement Max | 0.022 in0.559 mm |
| Post Install Int Radial Clearance Min | 0.0015 in0.038 mm |
| No. | Weight | Bearing Number | Housing Construction | UPC Code | Shaft Size Type | Full Timken Part Number |
|---|---|---|---|---|---|---|
| BNK0501-3G0+127LC5Y | BNK0501-3 | BNK0501-3G0+127LC5Y | 127 | G0 | C5 | - |
| NJ2216ET & | HPS | 80 | 2.0 | 2.0 | 2.0 | 2.0 |
| QVVFX19V090S | 4.17 | 2.80 | 35 lb15.90 Kg | 0883450367271 0883450367288 0883450367295 0883450367301 0883450367318 0883450367325 0883450367332 08 | 0.0030 in0.076 mm | 90 mm |
| HR30314J | 0.96 | Standard | 70 | 2.5 | 2.5 | 3.0 |
| GEZH 312 ES-2RS | 2650.000 | 900.000 | 9.000 | 95.250 | 158.7500 | 300 |
| 22226EMKD1 | 22226EMKD1 | 10.900 | 13.0 | 130 | 3.0 | 2800 |
| UCST204JH1S6 | B-1/4-28UNF | Normal-duty (2) | UCST204JH1S6 | Standard | - | 20 |
| 7228CDT FY | 140 | 3.0 | 7228CDT FY | 4300 | 3200 | 250 |
| ZK211-31 | A-1/4-28UNF | Normal-duty(2) | ZK211-31 | 1 15/16 | - | - |
| TAPG15K208S | 4.67 | 3.14 | 29 lb13.20 Kg | 0883450127172 0883450127189 0883450127202 0883450127219 0883450127226 0883450127233 0883450127240 08 | 0.0035 in0.089 mm | 2-1/2 in |
