Tapered Adapter Solid-Block Housed Units
- Solid Block/Spherical Roller Bearing Housed Units-Tapered Adapter Piloted Flange Cartridge
- DVC22K315S

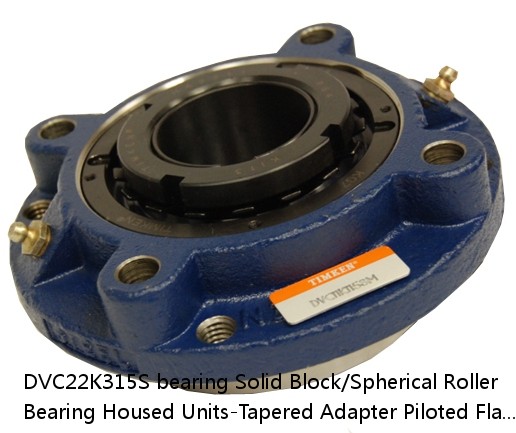

DVC22K315S Bearing | Solid Block/Spherical Roller Bearing Housed Units-Tapered Adapter Piloted Flange Cartridge
DVC22K315S PDF download| DVC22K315S interchange timken DVC22K315S | |
| DVC22K315S cross reference timken DVC22K315S | |
| DVC22K315S Equivalent bearing interchange guide： | |
| Price： | enquiry |
| Model Number： | DVC22K315S |
| d: | 4.06 |
| D: | 2.73 |
| B: | 58.0 lb26.3 Kg |
| r(min): | 0883450005128 0883450005135 0883450005159 0883450005166 0883450005173 0883450005180 0883450005197 08 |
| r1(min): | 0.0040 in0.102 mm |
| Width: | 3-15/16 in |
| Size: | Imperial |
| Weight： | 0.0053 in0.135 mm |
| Bearing Number： | 0.0067 in0.170 mm |
| Housing Construction： | 1700 rpm |
| UPC Code： | 900 rpm |
| Shaft Size Type： | 600 rpm |
| Engineering Group | Mounted Bearing |
| Bearing Number | 22222 |
| Shaft Size | 3-15/16 in |
| Shaft Size Type | Imperial |
| Full Timken Part Number | DVC22K315SB DVC22K315SBREV DVC22K315SC DVC22K315SEB DVC22K315SEC DVC22K315SEM DVC22K315SEN DVC22K315SEO DVC22K315SET DVC22K315SM DVC22K315SN DVC22K315SO DVC22K315ST |
| Locking Style | Tapered Adapter |
| Weight | 58.0 lb26.3 Kg |
| Housing Construction | Piloted Flange Cartridge |
| UPC Code | 0883450005128 0883450005135 0883450005159 0883450005166 0883450005173 0883450005180 0883450005197 0883450005203 0883450196987 0883450197182 0883450274494 0883450274692 0883450435536 |
| Dimension BC | 9.38 in238.3 mm |
| Dimension C | 5.710 in145.000 mm |
| Dimension E | 6.63 in168.4 mm |
| Dimension F | 10.88 in276.4 mm |
| Dimension H | 1.89 in48.0 mm |
| Dimension I | 4.60 in116.8 mm |
| Dimension J (Bolt Size) | 0.75 in20 mm |
| Dimension L | 3.94 in100.1 mm |
| Dimension M | 2.48 in63 mm |
| Dimension R | 0.18 in4.6 mm |
| Dimension S | 4.13 in104.9 mm |
| Dimension G | 8.125 in206.4 mm |
| Dimension N | 1.50 in38.1 mm |
| C0 - Static Load | 147000 lb653 kN |
| C - Dynamic Load (Basic) | 125000 lb555 kN |
| e - Geometry Factor | 0.25 |
| Y1 - Geometry Factor | 2.73 |
| Y2 - Geometry Factor | 4.06 |
| Oil Lubrication - M/N Seal | 900 rpm |
| Oil Lubrication - T Seal | 1700 rpm |
| Oil Lubrication - B/C/O Seal | 600 rpm |
| Grease Lubrication - M/N Seal | 900 rpm |
| Grease Lubrication - T Seal | 1200 rpm |
| Grease Lubrication - B/C/O Seal | 600 rpm |
| Float | 0.083 in2.108 mm |
| Shaft Tolerance | 0.0040 in0.102 mm |
| Pre Install Clearance Min | 0.0053 in0.135 mm |
| Pre Install Clearance Max | 0.0067 in0.170 mm |
| Int Radial Clearance Reduction Min | 0.0020 in0.051 mm |
| Int Radial Clearance Reduction Max | 0.0028 in0.071 mm |
| Adapter Sleeve Axial Movement Min | 0.03 in0.762 mm |
| Adapter Sleeve Axial Movement Max | 0.042 in1.067 mm |
| No. | Weight | Bearing Number | Housing Construction | UPC Code | Shaft Size Type | Full Timken Part Number |
|---|---|---|---|---|---|---|
| QVVPH13V204S | 4.15 | 2.79 | 25 lb11.3 Kg | 0883450148641 0883450148832 0883450153331 0883450153485 0883450176323 0883450176521 0883450185530 08 | 0.0015 in0.038 mm | 2-1/4 in |
| 241/500EW33 | 500 | 7.5 | 718.00 | 540 | 420 | 830 |
| X32032XM/Y32032XM | 51 mm2.0079 in | 32032XM | 2.54 mm0.1 in | 3.050 mm0.12 in | 521.7 | METRIC |
| 7012ADB | Standard | 60 | 1.0 | 1.1 | 7012ADB | 8000 |
| NJ2318 | 90 | 3.0 | 3.0 | 7.900 | 3600 | 2800 |
| 23220EXQK | 100 | 2.1 | 6.76 | 3900 | 3100 | 180 |
| NUP1040MA | NUP | N | 2000 | 1700 | METRIC | 310 mm12.2047 in |
| NJ2314ET7 & | HPS | 70 | 2.0 | 2.0 | 2.1 | 2.1 |
| X32213/Y32213 | 32.750 mm1.2894 in | 32213 | 1.52 mm0.06 in | 2.030 mm0.080 in | 72.9 | METRIC |
| NUP310ET7 | Standard | 50 | 2.0 | 2.0 | 2.0 | 2.0 |
